High Moisture Extrusion for Plant Protein Texturization
High-moisture extrusion of plant proteins presents significant processing challenges at industrial scale. When operating with moisture contents between 65-75% and temperatures of 150-180°C, precise control over protein denaturation, fiber alignment, and microvoid formation becomes critical. Current systems struggle to maintain consistent texture profiles across production runs while managing the complex interactions between pressure, temperature, and residence time.
The fundamental challenge lies in achieving meat-like fibrous structures and controlled microvoid formation while maintaining production efficiency and product consistency at commercial scales.
This page brings together solutions from recent research—including twin-screw extrusion systems with controlled expansion profiles, protein mixture optimization through particle size distribution control, and innovative die designs for enhanced texture development. These and other approaches focus on achieving reproducible, meat-like structures while addressing industrial-scale production requirements.
1. Extrusion Method for Producing Fibrous Textured Protein Material with Controlled Microvoid Structure
FUJIFILM CORP, 2025
A method to produce a protein food material with fibrous texture resembling meat and a chewy mouthfeel. The method involves extruding a vegetable protein-water mixture at high temperature (150-180°C) and then slowly cooling and swelling it inside a discharge die. This creates a porous structure with microvoids oriented in the fiber direction. The swelling and cooling profile is controlled to prevent scorching. The resultant protein food material has a high percentage of small voids (0.1 mm2 or less) with thin walls (200 μm or less) between them. This provides a fibrous texture and chewy mouthfeel similar to meat.
2. Uniaxial Extrusion Device with Single Screw Housing and Integrated Pusher, Transfer Belt, Cooling Fan, and Cutting Unit for High Moisture Plant-Based Protein Production
A-LIFE CORP, Agricultural Corporation A-Life, 2025
A device for producing plant-based meat substitutes through wet extrusion processing with high moisture content. The device employs a uniaxial extrusion system with a single screw housing, featuring a pusher to pressurize the raw material hopper. The system includes a transfer belt for transporting the extruded protein, a cooling fan to maintain temperature control, and a cutting unit to process the protein. The device enables mass production of textured protein products with meat-like texture and structure through precise control of temperature, pressure, and moisture levels during extrusion.
3. Process for Preparing Plant-Based Protein Extrudates with Controlled Gas-Induced Cavity Formation During Wet Extrusion
LES NOUVEAUX FERMIERS, 2024
A process for preparing plant-based protein extrudates that enhances texture and mouthfeel through controlled gas formation during wet extrusion. The process involves preparing a plant-based protein mixture, then adding an acid and/or base that creates cavities in the matrix. The mixture is then wet-extruded through a die, where the acid and/or base release gas during the extrusion process, creating a network of air pockets that improve hydration and texture. The gas formation is precisely controlled to achieve optimal cavity formation, resulting in a homogenous texture with improved mouthfeel.
4. Apparatus with Extrusion, Separation, and Sorting Components for Controlled Fibrous Structure Formation in Plant-Based Protein Processing
PLANT FOOD INC, 2024
Apparatus for processing plant-based protein foods that enables controlled production of fibrous structures through precise control of raw material properties and processing conditions. The apparatus comprises an extrusion device, a separation device, and a sorting station. The sorting station is equipped with a control unit that regulates parameters such as feed rate, back pressure, and residence time to optimize the formation of fibrous structures during wet texturization. The apparatus is designed to maintain consistent fiber alignment and structure characteristics across multiple production runs, ensuring reproducibility of the final product quality.
5. Extruded Plant-Based Meat Comprising Specific Soy, Pea, Wheat Protein Ratios with Sodium Alginate and Carrageenan
ZHEJIANG WANLI UNIVERSITY, 2024
Plant-based meat made from specific proportions of soy, pea, wheat proteins, flour, sodium alginate, and carrageenan. The plant-based meat is prepared by extrusion processing after crushing, sieving, and mixing the raw materials with adjusted water content. The resulting meat has texture, taste, and appearance closer to real meat compared to other plant-based meats.
6. Method for Producing Fibrous Protein Materials via Controlled Expansion in Twin-Screw Extrusion
FUJIFILM CORP, 2024
Producing protein food materials with fibrous and chewy textures through controlled expansion during extrusion. The method involves pressurizing, heating, and kneading a protein-containing mixture containing vegetable protein and water in a twin-screw extruder, then extruding the mixture through a die with controlled temperature profiles. The temperature at the expansion start point is set between 120°C and 140°C, with a specific expansion rate profile that maximizes void formation and wall thickness. This controlled expansion process creates a protein material with a fibrous structure and numerous microvoids oriented in the fiber direction, resulting in a material with a chewy texture.
7. Extrusion Mixture Incorporating Insoluble Plant Protein Isolate with Specific Particle Size Distribution for Fibrous Texture in Meat Analogues
NESTLE SA, 2024
Using plant protein isolate as a replacement for calcium carbonate to improve the texture of meat and fish analogues made by extrusion. The method involves adding between 1-5.5% of insoluble plant protein isolate, like rice protein, to the extrusion mixture containing between 30-45% plant protein like wheat gluten or pea protein. The insoluble plant protein particles provide a fibrous texture similar to real meat without the calcium concerns of calcium carbonate. The plant protein isolate should have a narrow particle size distribution between 3-10 microns for optimal results.
8. Twin-Screw Extruder with Diverter Plate and Enzymatic Treatment for Protein Structure Modification
Harbin Fuyao Food Co., Ltd., 2024
A device and method to improve the digestibility and absorption of high-moisture plant-based protein meat. It uses a twin-screw extruder with specific features and an enzymatic treatment to modify the protein structure and make it more easily digestible. The extruder has wider sections at the front and narrower sections at the back with a diverter plate between them. This limits the flow and increases the residence time to enhance protein denaturation. Additionally, an enzymatic treatment with pepsin and trypsin is applied to hydrolyze the protein further.
9. High-Moisture Soy Protein Extrudate with Controlled Molecular Structure via Twin-Screw Extrusion
SHANGHAI JIAO TONG UNIVERSITY, 2023
A high-moisture soy protein extrudate with enhanced texture and structure for plant-based meat and egg products. The extrudate achieves optimal moisture content (65-75%) and protein content (35-25%) through twin-screw extrusion, enabling the production of diverse meat and egg alternatives. The unique processing parameters, including temperature and screw speed, precisely control the protein's molecular structure and texture formation, allowing for the creation of meat-like and egg-like products with improved texture and flavor characteristics.
10. Method for Producing Meat Substitute Using Plant Proteins and Integrated Binders Without Methylcellulose
CARGILL INC, 2023
A method to make meat substitutes that mimics the texture, flavor, and appearance of meat without using methylcellulose emulsions. The method involves dispersing coloring agents, flavorings, and shelf life extenders in water, then mixing that with textured plant protein and plant protein powder. This is combined with binders, fats, salt, and water to form the meat substitute dough. Shaping and cooling the dough produces the meat substitute. This allows customizing the flavor, color, and texture of the meat substitute without needing separate methylcellulose emulsions.
11. Twin-Screw Extrusion Equipment with Extended Length-to-Diameter Ratio and Multi-Zone Temperature Control for Pea Protein Processing
哈尔滨良粟农业科技有限公司, 2023
Twin-screw extrusion equipment for producing high-moisture pure pea protein artificial meat that overcomes the shortcomings of existing equipment for processing pea protein into meat-like textures. The equipment has a screw with a length-to-diameter ratio of at least 40:1, multiple temperature zones in the barrel, and a die connection device with a double-hole structure. This allows longer kneading time and better temperature control to form fibrous pea protein meat.
12. Extrusion Process for Texturized Vegetable Protein Using Rapeseed and Legume Proteins with Calcium Carbonate
DSM IP ASSETS BV, 2023
A process to improve the texture and hydration properties of plant-based meat alternatives by using rapeseed protein, legume protein, and calcium carbonate. The process involves extruding a mixture of rapeseed protein, legume protein, and calcium carbonate to make texturized vegetable protein (TVP). The calcium improves hydration speed, water holding capacity, and density of the TVP compared to using just legume protein. This allows making meat alternatives with better texture and mouthfeel.
13. Dynamic Enzymatic Treatment Method for Texturizing Plant Protein Fibers During Extrusion
THE LIVEKINDLY COMPANY SWITZERLAND GMBH, 2023
A method for texturizing and tenderizing plant-based meat alternatives to make them taste more like meat. It involves using enzymes during the food processing to break down the plant protein fibers and create space between them. This reduces density and gives a meat-like texture and mouthfeel. The enzymatic treatment is applied dynamically during extrusion based on a recipe to optimize the plant protein meat analog texture and tenderness.
14. Method and System for Producing Textured Vegetable Protein via Multi-Step Extrusion of Brewer's Grains
CIRCULAR FOOD SOLUTIONS AG, 2023
A method and system for producing a high moisture content textured vegetable protein (TVP) from brewer's grains and other protein sources, enabling the creation of a versatile, ready-to-eat ingredient for food products. The process involves comminuting spent grains, followed by a multi-step extrusion process that produces a textured protein with a uniform fibrous structure. The resulting protein can be formulated into a wide range of food products, including vegetarian alternatives, with added micronutrients and flavor profiles.
15. Process for Preparing Meat Analogue Using Hydrated Textured Plant Protein with Integrated Flavorings and Emulsion Binders
NESTLE SA, 2023
Process for preparing a vegetarian meat analogue product with improved taste and texture. The process involves hydrating textured plant protein along with dry flavorings, adding binders and oil to the hydrated protein, and shaping the resulting mass into the meat analogue. This allows better flavor delivery compared to adding flavors after hydrating the protein. Using emulsion binders and specific ratios of flaky and granular textured protein also improves texture.
16. Twin-Screw Extruder with Integrated Thermoelectric Cooling System in Die Head
CHINA AGRICULTURAL UNIVERSITY, 2023
Twin-screw extrusion equipment and method for high-moisture vegetable protein that produces products with superior texture and appearance characteristics. The equipment incorporates a thermoelectric cooler that maintains optimal temperature conditions during the extrusion process. The cooler is integrated into the die head, where it maintains a consistent temperature between the protein material and the die, enabling the formation of a uniform and fluffy structure in the extruded product. This approach addresses the inherent challenges of vegetable protein processing, particularly in achieving the desired texture and appearance characteristics compared to animal-derived meat products.
17. Extruded Vegetable-Based Food Products with Leguminous Protein and Aerated Structure
OUTSTANDING FOODS INC, 2023
Extruded vegetable-based food products and meal replacements that provide high protein content and healthful ingredients, achieved through novel extrusion methods that preserve nutritional value. The products contain leguminous protein isolate, leguminous grits, and rice grains, along with vegetable oil, flavorings, and water, and are produced using a specific combination of ingredients that enables the formation of aerated bite-sized products with a density range of 50-90 g/L.
18. Method for Producing Vegetarian Protein Foods Using Dehulled Broad Bean Flour and Protein Powders with Extrusion and Kneading
VERSO FOOD OY, 2022
A method for producing vegetarian protein-rich foods that mimic the texture and mouthfeel of meat products. The process involves mixing dehulled broad bean flour with protein-rich vegetable protein powders, creating a base mixture with 15-30% broad bean flour and 70-85% protein powder. The mixture is then hydrated and extruded through a specialized die to form a dough. The dough is then kneaded and cooled to achieve the desired texture, with the final product having a thickness of 2-30 mm and a temperature of 50-95°C upon exit from the die.

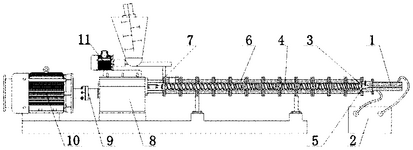

19. High-Moisture Extrusion Apparatus with Gear-Meshed Screw and Integrated Filtration Control
SAIQI WANG, Wang Siqi, 2022
High-moisture extrusion equipment for producing vegetable meat with improved mixing and filtration. The equipment has a sealed extrusion chamber with a screw, gearbox, and filter system. The screw has a male portion inside the chamber and a scraper portion outside the gearbox. The male screw meshes with gears inside the gearbox. The chamber has feeding and discharge ports. A sealing plate covers the chamber. A rotating screw rod connects to the sealing plate and outside filter orifice. This allows manual control of the screw rod to regulate the filtering of the vegetable meat as it extrudes through the chamber.
20. Extrusion Method with Modified Feed System for High-Moisture Wheat Protein Meat Products
EAST CHINA UNIVERSITY OF SCIENCE AND TECHNOLOGY, 2022
A novel method for producing high-moisture extruded meat products from wheat protein sources. The process involves a unique feeding mode where the extruder's feed system is modified to deliver uniform dry material and water mixture directly to the extruder, eliminating the need for traditional extrusion steps. This approach enables the production of extruded meat products with improved texture and moisture retention characteristics compared to conventional methods.
