Fiber Reinforced Polymer Steel Bars for Fatigue Resistance

Fiber-reinforced composites (FRCs) with enhanced mechanical properties that meet modern engineering demands through optimized fiber reinforcement. The invention focuses on developing FRCs with improved performance characteristics, particularly in applications requiring enhanced durability, sustainability, and recyclability.

Source

A sandwich panel system for steel box girder bridges that combines the benefits of composite deck construction with improved fatigue resistance. The system comprises a sandwich panel comprising an upper panel, lower panel, and a composite sandwich layer, with the upper and lower panels connected by rigid diaphragms. The composite sandwich layer is bonded between the diaphragms and the upper and lower panels, providing a strong and durable structural component. The diaphragms serve as a critical component in maintaining structural integrity during dynamic loading, while the composite sandwich layer enhances the panel's overall fatigue performance.

Source

Fiber-reinforced composite materials with enhanced fatigue performance through optimized fiber orientation. The materials incorporate fabrics with specific fiber orientations where the reinforcing fibers' sizing compounds are compatible with the resin matrix, while the non-parallel fibers' sizing compounds are incompatible. This dual orientation approach enables improved bonding between the resin and fibers, leading to reduced fiber breakage and enhanced fatigue resistance in wind turbine blades.

Source

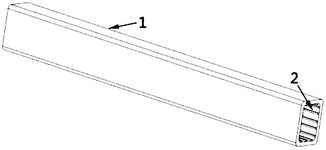

A fiber composite beam structure for boom sections that enhances fatigue life through optimized reinforcement patterns. The beam comprises a hollow main body with strategically placed reinforcing ribs that extend along its longitudinal axis. These ribs are positioned on the inner surface of the main body, spaced apart in the circumferential direction, and are spaced in the circumferential direction. The beam's hollow main body maintains structural integrity while the ribs provide critical load-bearing support, significantly improving the beam's fatigue life compared to conventional designs.

Source

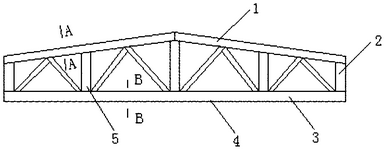

A corrosion-resistant, lightweight, high-strength BFRP-steel pipe combined chord truss that combines the structural integrity of a steel truss with the durability of composite materials. The truss comprises an upper chord, lower chord, and multiple web members, with each component featuring a fiber-reinforced polymer (FRP) winding layer structure perpendicular to the steel tube axis. The upper chord and lower chord employ parallel fiber adhesion layers, while the web members utilize a perpendicular fiber structure. This design provides superior stress performance and corrosion resistance, while maintaining the structural integrity of the truss.

Source

Composite steel FRP stirrup with integrated reinforcement and corrosion protection. The stirrup comprises a steel reinforcing bar wrapped with a fiber-reinforced polymer (FRP) layer, with the FRP layer featuring ribs and fiber cloth wrapping. This integrated design combines the structural integrity of steel with the corrosion-resistant properties of FRP, enabling the creation of durable stirrups that can withstand harsh environments without compromising performance.

Source

A novel FRP steel pressure bar featuring enhanced fatigue resistance through a unique composite structure. The bar comprises a bottom end portion, a top end connected with a gasket, and a top end connected with a lower end portion. The top end of the lower end portion is connected with an upper end seat, and the top end of the upper end seat is connected with an upper end portion. The inner cavity of the upper end portion is provided with a carbon steel layer, and the inner side of the carbon steel layer is covered with an aluminum alloy layer. A second FRP layer is applied on the aluminum alloy layer, and a pre-tightening block is embedded in the joint between the upper end seat and the upper end portion. Solder legs are welded to the left and right sides of the pre-tightening block, and the soldering feet are positioned away from the pre-tightening block. A plug is welded to one side of the block, and a cavity is mounted on the inner cavity of the upper end portion. A locking sleeve is mounted on the inner cavity of the upper end seat and the card seat, with side rods positioned between the sleeve and the soldering legs. This configuration enables the bar to maintain structural integrity under cyclic loading

Source

A basalt fiber reinforced composite rib that addresses the limitations of traditional steel bars. The rib combines steel wires with basalt fiber bundles, arranged in agglomerated filaments. The outer layer of these filaments is spirally coated, forming a composite rib with enhanced mechanical properties compared to conventional steel bars. The coated layer provides improved corrosion resistance and durability while maintaining the structural integrity of the composite material.

Source

A method for extending the fatigue life of steel beams through targeted reinforcement. The method employs carbon fiber sheets bonded to the web's top flange surface, with the sheets strategically positioned to cover specific areas of high fatigue potential. The carbon fiber sheets are applied through a controlled application process, ensuring precise alignment and distribution across the beam's critical sections. This targeted reinforcement approach enables comprehensive protection against fatigue failure by addressing critical stress concentrations.

Source

A pre-tensioned FRP reinforced beam, plate, or composite structure that enhances seismic performance and fatigue life through controlled prestressing. The beam, plate, or composite structure comprises a pre-tensioned FRP reinforcement system that is applied to a concrete beam plate, wood beam board, wood-composite beam plate, steel beam plate, or steel-concrete composite beam plate. The prestressing system is designed to provide significant stiffness enhancement while maintaining the structural integrity of the beam, plate, or composite, thereby improving seismic response and reducing the risk of premature failure during seismic events.

Source

A composite bar comprising a reinforcing bar and a wrapping layer, where the wrapping layer is made of a fiber-reinforced polymer. The composite bar provides exceptional strength, modulus, corrosion resistance, and elongation properties, making it a superior replacement for traditional steel and wire components in construction and bridge structures. The wrapping layer integrates the reinforcing bar and wrapping material into a single, continuous structure, eliminating the need for separate components. This design enables precise control over fiber orientation, wrapping configuration, and material properties, resulting in optimized performance and reduced material waste.

Source

Radially arranged steel-glass fiber composite rib for reinforced concrete structures with enhanced ductility and improved load-bearing capacity. The rib is produced by processing a steel sheet through pultrusion followed by fiber winding, sandblasting, and heat curing. The composite rib features a steel core with continuous glass fiber reinforcement, which is bonded to the steel core using a resin. The rib is then formed through a spiral winding process, resulting in a composite rib with improved fiber alignment and resin bonding. The rib's unique design enables enhanced ductility compared to traditional steel-glass fiber composite ribs, while maintaining high tensile strength and corrosion resistance.

Source

Pultruded bar with enhanced mechanical properties through optimized fiber reinforcement distribution. The bar combines a smooth, glass fiber-reinforced matrix with a puffed structure containing bulky fibers that interlace with the matrix. This dual reinforcement approach significantly improves lateral strength while maintaining the bar's smooth surface finish. The puffed fibers enhance the bar's overall mechanical performance, particularly under repeated bending loads, while maintaining its aesthetic appearance.

Source

Composite FRP tendons for engineering structures that enhance durability and performance in corrosive environments. The new tendons feature a unique construction where carbon fiber bundles are wound around thermosetting resin-embedded FRP bars. The resin is cured during the carbon fiber application process, creating a reinforced composite structure with enhanced mechanical properties, including improved elastic modulus and shear strength compared to conventional FRP reinforcement. The composite structure maintains its strength and deformation capacity even after exposure to corrosive environments, while maintaining the necessary bonding characteristics for structural integrity.

Source

A composite component with integrated reinforcement areas that absorb loads during operation while maintaining structural integrity. The component comprises a composite area with normal areas containing first fibers and reinforcement areas containing second fibers, where the second fibers have a higher strength than the first fibers. The reinforcement areas are strategically positioned to distribute loads effectively, with the second fibers oriented in the direction of force application. This design enables efficient load absorption while maintaining the structural integrity of the composite material.

Source
