Reliable Communication Systems for Long-Range Drone Operations

1. Ground and Base-Station Antenna Engineering for Skyward Coverage and Interference Isolation

Long-range operations cannot be secured until the underlying radio footprint actually reaches the aircraft. Commercial macro cells are engineered for handheld terminals near street level, so their antennas are down-tilted and horizontally polarised. As soon as an uncrewed aerial vehicle (UAV) climbs above the clutter, it often sits in the far side-lobe of dozens of base stations while receiving almost no main-lobe energy from the closest tower. The first task is therefore to create deliberate skyward gain without degrading ground coverage.

A frequently deployed remedy is the upward-tilted mmWave beam set that equips each site with a secondary radio chain. Sub-6 GHz panels continue to serve phones, while a compact mmWave multiple-input multiple-output (MIMO) array forms pencil-thin beams aimed at predefined altitude layers. By exploiting the steep path-loss exponent at 26–40 GHz, these beams deliver high effective isotropic radiated power toward the aircraft yet spill little energy toward terrestrial users, thereby containing mutual interference. A scheduler that combines narrowband positioning reference signals with non-orthogonal multiple access can trigger beam switching in sub-10 ms, allowing the cell to track aggressive pitch and roll during inspection flights.

Where mmWave alone would incur unacceptable rain fade, operators often layer it on top of a sub-6 GHz carrier. The wider Fresnel zone at 700 or 850 MHz provides a safety net for command-and-control (C2) packets in foliage or fog, while the millimetre band handles short bursts of high-rate imagery. Antenna planners increase isolation between the two arrays through cross-polar placement and spatial separation on the mast. This segregation lets a UAV fall back to a robust, low-frequency bearer without renegotiating security contexts or losing upper-layer sessions.

When fibre backhaul or licensed spectrum is scarce, purpose-built infrastructure can stand in. The hexagonal LOS relay grid positions lightweight, solar-assisted terminals on ridgelines or rooftops so that every node maintains line of sight to its neighbours. Each site carries a tri-sector panel covering 120° azimuth and a high-gain dish aimed aloft. Control packets hop along the honeycomb at sub-millisecond latency, then ascend to the UAV via the nearest dish. This topology stretches beyond-visual-line-of-sight (BVLOS) command ranges far past a single tower, yet the relay pitch stays large enough to keep capital expenditure manageable.

Finally, newer deployments are moving toward self-healing airborne extensions. The electronically-steerable mmWave mesh places phased-array transceivers on drones or balloons so every node can inject or remove nulls toward interferers and re-route traffic when signal-to-noise ratio (SNR) drops. Because steerable gain replaces brute-force power, flight time is preserved while kilometric links remain intact. Once a secure and well-shaped air-to-ground footprint exists, higher-level reliability schemes can be layered with confidence.

2. Dual-Link Segregation and Other Link-Layer Redundancy Techniques

With a dependable RF footprint in place, the next priority is isolating life-critical C2 traffic from bandwidth-hungry payload streams. A common strategy is to run two physically independent bearers on distinct bands or radios. The opportunistic dual-link architecture keeps a low bit-rate, high-robustness pipe alive at all times while waking a high-throughput channel only when geometry and battery budget permit bulk data off-load. Decoupling the two flows avoids the dilemma of throttling sensors or risking C2 starvation; it also enables simpler compliance testing, since C2 latency and packet-error objectives can be proven on a single, well-characterised bearer.

If spectrum fees or weight limits preclude a second radio, temporal segregation is still achievable through carrier-sense manipulation. The selective downlink suspension controller monitors uplink activity and briefly pauses the video stream whenever no clear-to-send gap appears. By forcing a tiny pause, the next C2 packet is guaranteed to win the contention race on commodity 802.11 silicon, restoring deterministic round-trip without altering firmware.

Additional robustness can come from using two public mobile networks simultaneously. A UAV equipped with the QoS-driven Connectivity Control Function maintains parallel signalling with multiple operators and relies on a cloud decision engine to pre-emptively swap the primary bearer to whichever carrier forecasts the best link margin along the planned route. Trials show that analytics-guided switching can shave several seconds off blind search-and-attach procedures, a critical saving when battery or weather windows are tight.

Where even deeper resilience or aggregate throughput is required, multi-path transport becomes attractive. The secure MPTCP multi-link manager splits a single TCP session across all available interfaces while forcing cryptographic re-authentication whenever an interface appears or disappears. This counters the session hijacking risk found in vanilla MPTCP and offers graceful degradation under partial jamming. Complementing the radio links, a hybrid FSO/RF overlay network can forward erasure-coded blocks over both laser and RF. Cloud and rain primarily affect the optical path, whereas wideband noise attacks the RF channel; distributing parity across both yields a composite outage probability well below either standalone medium.

The cumulative effect of these techniques is a deterministic C2 latency envelope, predictable payload throughput and a radio duty cycle trimmed to flight-time realities.

3. 3GPP Cellular Connectivity and Mobility Management for BVLOS UAVs

Once individual links are stable, maintaining them while the aircraft roams across dozens of cells becomes the dominant challenge. 3GPP’s native UAV profile treats the drone as standard user equipment, thereby reusing the full new-radio (NR) mobility stack. At its heart is the network-assisted route planning concept: the UAV streams telemetry uplink while edge servers evaluate battery, airspace constraints and channel forecasts, then inject driving-mode commands when conditions warrant autonomous control. This workflow is attractive to regulators because every role swap is auditable in the network logs.

Handovers can suffer when a single operator does not blanket the entire corridor. Two layers of mitigation exist. First, path-aware handover preparation pushes the planned 4D trajectory to every cell along the path so that resources are pre-reserved and security context is shared before arrival. Second, multi-MNO coverage-constrained routing asks the mission planner to choose corridors overlapped by at least two public networks. Embedded eSIM triggers allow drop-in carrier switching without hard resets. Policy logic described in policy-based PLMN/USS switching then decides, based on signal quality and cost caps, when to enact a Public Land Mobile Network (PLMN) or U-space Service Supplier change on the fly.

Inside a single NR cell, aerial propagation still differs from ground conditions. High-altitude paths exhibit stronger line-of-sight yet higher uplink interference toward other cells. The gNB can invoke selective TTI bundling for C2 to repeat transport blocks across consecutive transmission-time intervals and claw back link margin without choking payload streams. For multi-carrier devices, coverage-centric carrier aggregation assigns a wide-area 700 MHz anchor just for C2 and a higher-order 3.5 GHz or mmWave layer for bulk traffic, thereby reducing handover events by an order of magnitude.

Cellular procedures must also survive IP-level transitions and hybrid non-terrestrial coverage. The workflow in atomic C2 link switching tunnels a new PDU session in parallel with the active one, then moves the Packet Data Convergence Protocol state in a single message. Because the original tunnel remains up until confirmation, not a single C2 packet is lost. Complementary optimisation in dual-session setup for UAV authorization and operations creates a lean, always-on authentication session separate from the high-rate operations bearer, reducing signalling chatter when rapid handovers occur in butterfly flight patterns.

4. Satellite and Non-Terrestrial Network Protocol Adaptations

Even the best terrestrial grid cannot cover polar corridors or open oceans, so BVLOS missions often ride a satellite overlay. The physical link budget and 500-ms round-trip time of geostationary Earth orbit (GEO) links impose unique constraints. One architectural answer splits each cell into two geographical corners that steer transmit lobes away from the GEO arc. The split-ACK mechanism then forwards negative acknowledgements across a bidirectional backhaul so the opposite corner retransmits immediately, preventing self-interference and collapsing latency by a full GEO trip.

Low Earth orbit (LEO) constellations help with delay but introduce doppler and fast changing gateways. Standard LTE Cat-M timing collapses when round-trip exceeds 25 ms. The NTN-specific control format that embeds the HARQ feedback suppression flag instructs both ends to flush buffers instead of awaiting feedback, thus capping delay growth and avoiding battery drain. Enlarged HARQ process indices and segmented repetition counters stretch scheduling windows so the same waveform scales gracefully from 5 ms terrestrial RTTs right up to several hundred milliseconds.

For video off-load, idle HARQ pipelines are a waste. The bundled retransmission window resends failed code blocks plus yet-to-be-acknowledged blocks in one burst. Feedback overhead drops by half, and link utilisation rises close to the theoretical maximum even when only a fraction of blocks suffer errors.

Integrating these NTN adaptations with the 3GPP mobility stack covered in the previous section gives operators a seamless path to hybrid terrestrial-satellite missions without bespoke airframes or radios.

5. UAV Relay, Multi-Hop and Mesh Network Architectures

Terrestrial or satellite coverage can still be lost behind ridges, inside canyons or during electronic-warfare scenarios. Relay and mesh architectures therefore act as insurance. The STANAG-4586 compliant Communication Enhancement Module intercepts every control packet and, only when direct SNR falls below a configurable threshold, encapsulates it for relay through neighbouring drones. The handover is transparent to the ground station, so legacy flight software needs no modification.

A ground-centric variant, the distributed base-station hand-off network dots lightweight stations along the flight corridor. As the UAV exits the antenna null of one node it automatically attaches to the next, using a make-before-break timer to avoid gaps. Field tests in mountainous terrain doubled the controllable range while reducing operator workload, since no manual antenna steering was required.

Capacity, not just reach, becomes the next bottleneck when sensor payloads crank up. A satellite-backhauled aerial mesh like the self-organising air-space network layers tethered cluster-heads with roaming master drones and slave extenders. The design is fully distributed: when any node fails, a neighbour inherits its role and the routing algorithm updates within two seconds.

High-density events may demand gigabit throughput. The self-organising 60 GHz backhaul mesh outfits each UAV with tri-sector phased arrays and an onboard optimiser that solves a maximum-flow problem every time the formation shifts. Altitude and yaw are part of the optimisation variables, transforming the fleet into a reconfigurable air-born microwave back-plane.

For maritime or remote theatre operations, endurance trumps speed. Solar-powered relay craft in the wide-area maritime coverage system loiter for days, bridging ships to coastal fibre. Where latency tolerates only a few milliseconds, a launch-on-demand chain forms a geodesic microwave corridor across horizon-blocked spans without touching satellites.

By interleaving direct, relay and satellite modes, operators can meet performance guarantees in the face of terrain, jamming or infrastructure failure.

6. Swarm and Cluster Communication Protocols for Large-Scale Multi-UAV Coordination

As fleets scale from half-a-dozen assets to hundreds, their internal radio traffic explodes. Flat mobile ad-hoc networks saturate, so hierarchical layering becomes essential. The gradient-potential-field hierarchical networking technique assigns each UAV a potential value based on its position in a moving gradient. Nodes with similar potential share a high-rate peer-to-peer link, whereas inter-cluster flows ride a sparse, long-range LoRa hop. Route discovery occurs only when the current relay drifts out of range, cutting overhead by more than 70 percent in simulations with 150 nodes.

Rapid launch scenarios require even faster bootstrapping. UWB-based position-aware time-slot scheduling leverages ranging beacons so every UAV builds a 3D neighbour map in milliseconds. A designated first mover broadcasts a cyclic slot plan; all others phase lock to it, producing contention-free access without heavyweight mesh negotiation. Experiments show jitter falls below 2 ms even when formation radius changes by 50 percent.

For missions that double as temporary base stations, the swarm itself can operate as a distributed antenna. The cooperative flight-adaptive MIMO swarm frames the formation-keeping task as a particle-swarm optimisation that balances energy, collision risk and channel orthogonality. Ultra-wideband or optical intra-swarm links ensure phase alignment so the composite array synthesises up to 8 dBi of additional gain toward ground users.

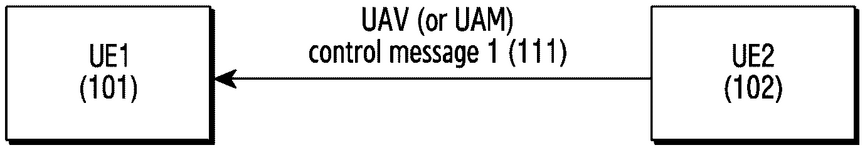

Spectrum etiquette is mandatory in shared bands. An airspace-anchored control-channel broadcast reserves a single frequency in each geographic cube where the first UAV advertises current allocations. New entrants listen before transmitting and pick orthogonal resources, eliminating hidden-node collisions without central ground control. For time-critical detect-and-avoid messages, the proximity-gated A2X unicast establishment sets up a sidelink only when a path-loss or distance threshold signals a genuine collision risk, keeping the channel clear most of the time.

Taken together, these protocols allow hundreds of autonomous aircraft to share the ether without burying the C2 channel in their own chatter.

7. Spectrum Allocation and Resource Scheduling Techniques for Congested Airspace

Even with disciplined swarms, popular air corridors will become congested. Deterministic schedules delivered from a ground hub offer one remedy. The deterministic multi-UAV frame map pairs a sectorised antenna at the hub with a pre-negotiated time-frequency matrix. Because each packet arrives in an exclusive slot within a known beam, collisions vanish and link budget rises thanks to antenna gain. Constant-envelope continuous-phase modulation combined with concatenated BCH-LDPC coding keeps peak-to-average low, a boon for inexpensive power amplifiers on small aircraft.

Cellular reuse faces the complementary problem of a UAV illuminating too many towers. The below-noise underlay broadcast channel allows the drone to whisper its future resource map using coded-phase DSSS under the thermal noise floor. Nearby gNodeBs decode with minimal channel knowledge and can reschedule terrestrial users proactively. Because no fast X2 or NG messaging is required, the scheme is deployable even on legacy networks.

Hardware constraints also shape band plans. Tiny airframes cannot afford bulky duplexers, so the dynamic UL/DL channel re-ordering shuffles sub-bands so that uplink sits at the extreme edges, leaving downlink in the centre. Depending on fleet size, the hub collapses the band into one, two or three contiguous blocks; the resulting guard band is wide enough for cheap low-order filters yet wastes little spectrum.

Once direct links are lost and peer-to-peer hops take over, decentralised etiquette is needed. The self-organising channel advert protocol has each transmitter periodically publish the exact resources it occupies. Peers overhear and choose the least congested option, then retreat automatically if a collision is detected. Because announcements carry absolute time stamps and location hashes, the mechanism remains robust even under GPS spoofing or clock drift.

8. Ancillary Positioning, Energy and Support Technologies

Communication is moot if the aircraft cannot stay aloft or know where it is. The in-flight bidirectional energy-transfer system treats every fleet member as a potential charger. When telemetry predicts insufficient reserve to reach the next ground pad, the cloud broker authenticates two vehicles, negotiates price and duration, then guides a flexible umbilical for mid-air power flow. Abort cues are integrated into the C2 link so either pilot can terminate safely.

Relative positioning typically relies on two-way phase-shift exchanges, which scale poorly. The multi-hop frequency-hopping ranging technique gathers phase shifts from one-way beacons across a series of coordinated frequency hops and relays them hop-by-hop. This eliminates constant acknowledgements, halving overhead while maintaining centimetre accuracy beyond a single link budget.

For denied environments, the dual-slope chirp LoRa transceiver emits chirps with opposing slopes so time and frequency measurements decouple. Accurate distance and Doppler can be extracted without precision oscillators, providing a fallback navigation aid and a low-power telemetry path when GNSS or LTE vanishes for minutes at a time.

Together, these support technologies close the reliability loop by preserving energy and navigation integrity, thereby ensuring that the advanced radio layers detailed above can deliver value over the full mission duration.
