Drone propellers typically generate noise levels between 70-90 dB at hover, with distinct tonal peaks at blade passage frequencies and their harmonics. This acoustic signature stems from multiple mechanisms: tip vortex formation, blade-wake interactions, and turbulent boundary layer effects. Field measurements show these sound patterns vary significantly with flight conditions, creating challenges for consistent noise reduction across operational envelopes.

The fundamental challenge lies in modifying blade geometry and operational parameters to reduce acoustic emissions while maintaining the aerodynamic efficiency needed for practical flight endurance.

This page brings together solutions from recent research—including swept-blade designs with optimized tip geometry, serrated blade surfaces for flow control, asymmetric blade configurations for spectral distribution, and multi-rotor systems with varied blade patterns. These and other approaches demonstrate how careful engineering of propeller characteristics can achieve meaningful noise reduction while preserving flight performance.

1. Rotor Geometry: Blade Shape and Surface Treatments for Noise Suppression

1.1. Deployable Serrations and Active Noise Control

When urban aircraft fly overhead, the most noticeable sound is the rhythmic thumping created as each propeller blade passes the hub. To address this issue, engineers at Amazon (the global e-commerce giant and cloud provider behind AWS) developed extendable leading-edge serrations that can deploy or retract during flight.

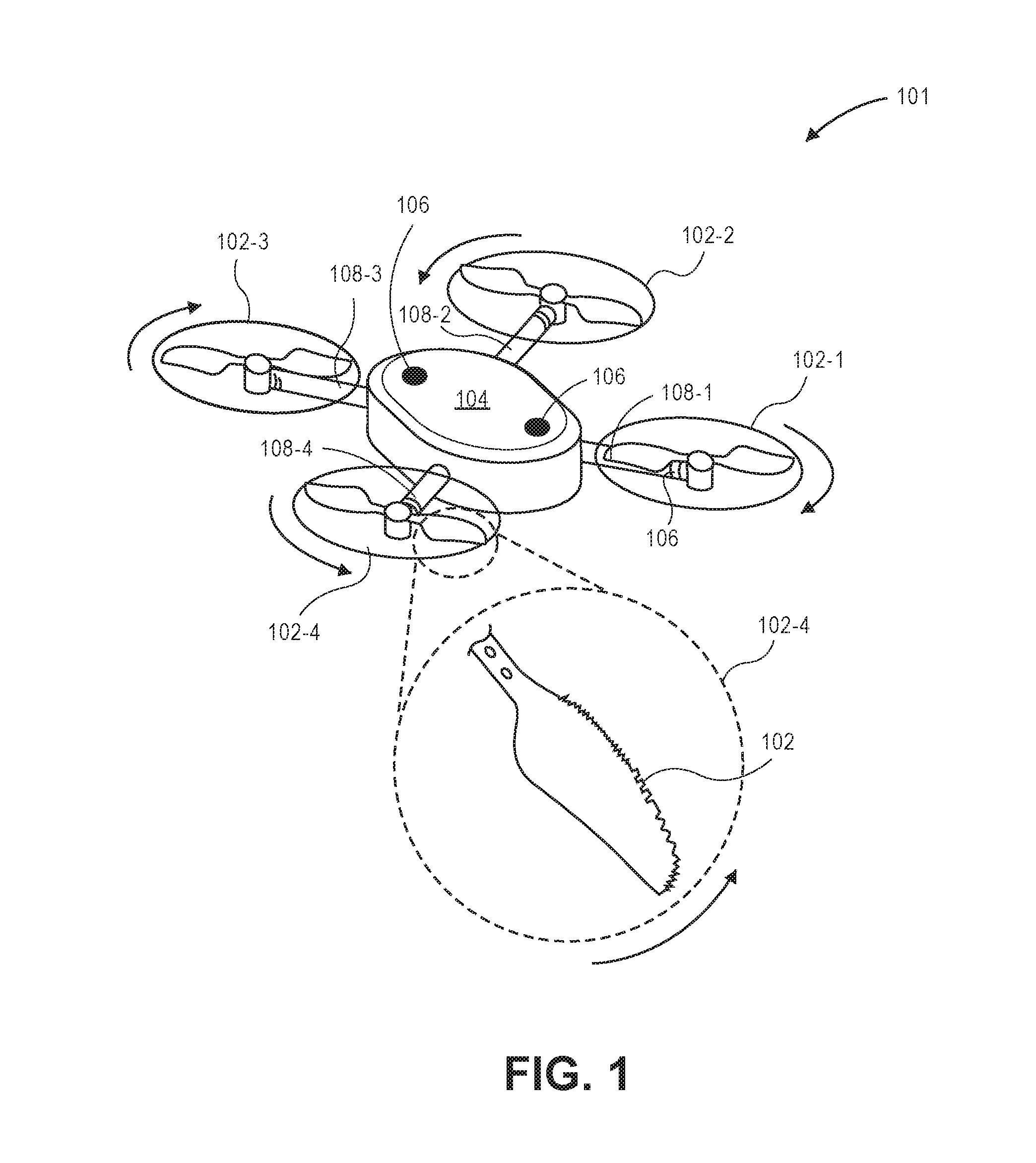

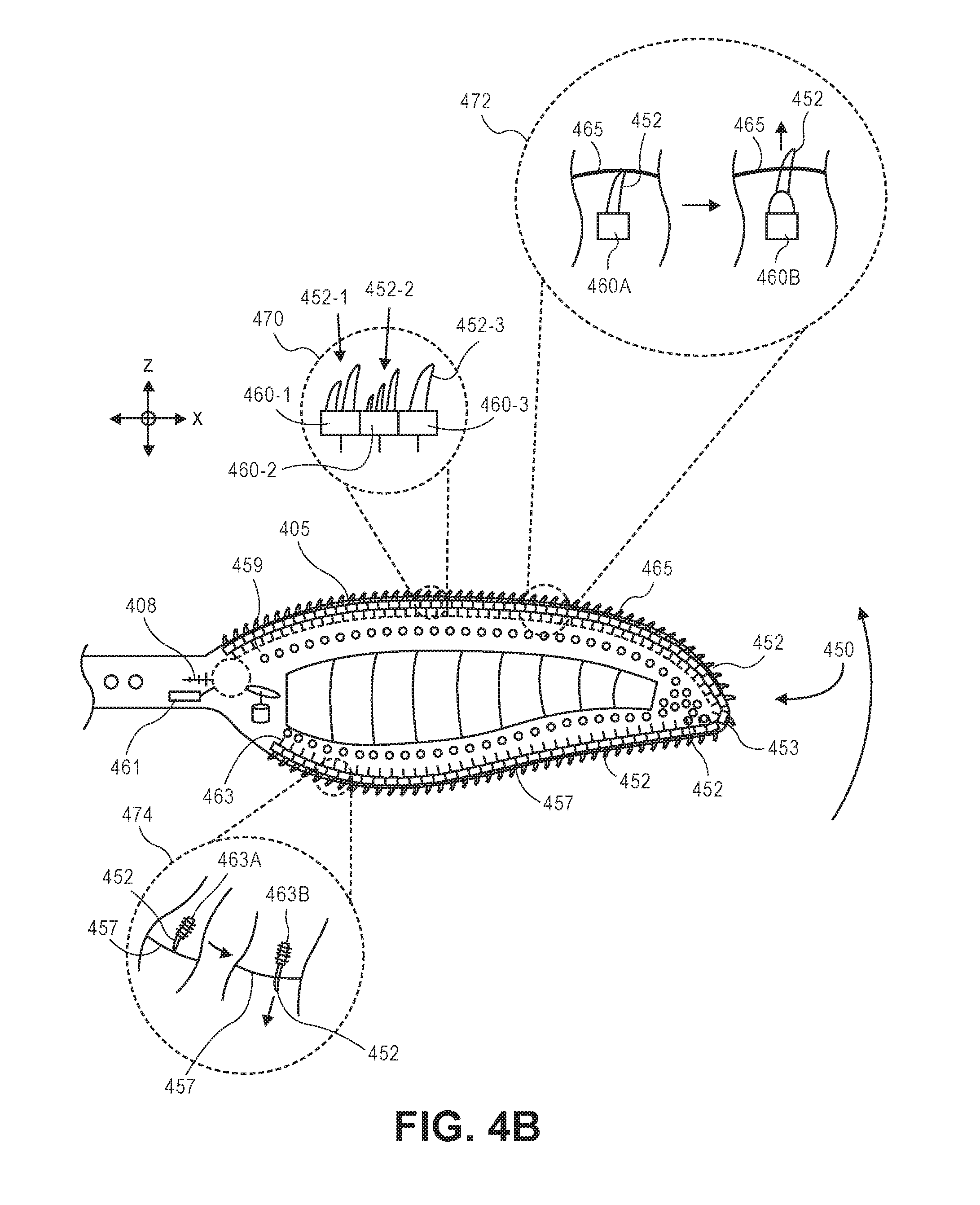

Figure 1: Drone propeller with extendable leading-edge serrations for noise reduction during flight operations

These serrated edges work by creating controlled micro-vortices that scatter acoustic energy across a broader frequency range. The system also incorporates miniature speakers mounted on the hub that generate anti-sound waves precisely timed to cancel specific frequencies. Together, these technologies transform the characteristic buzzing noise into a much quieter hiss-like sound.

Testing has shown promising results: the overall sound pressure level drops by approximately 10 decibels while maintaining the same lift performance and flight endurance. This means aircraft can operate more quietly in urban environments without sacrificing their operational capabilities.

Mixed Rotor Configurations

While deployable serrations can reduce noise from a single rotor, Amazon engineers discovered that equipping different arms of the same UAV with different blade treatments can spread the acoustic spectrum even further. The approach is straightforward: one pair of rotors might use porous blade skins, while another pair uses serrated edges.

To coordinate these mixed configurations, the team developed an onboard sound-profile engine that uses machine learning algorithms. The system continuously analyzes flight conditions and adjusts the optimal combination of propeller speed, surface treatments, and speaker output for each maneuver. This deliberate mismatch between rotors helps break up the coherent noise patterns that make drones particularly annoying to people on the ground.

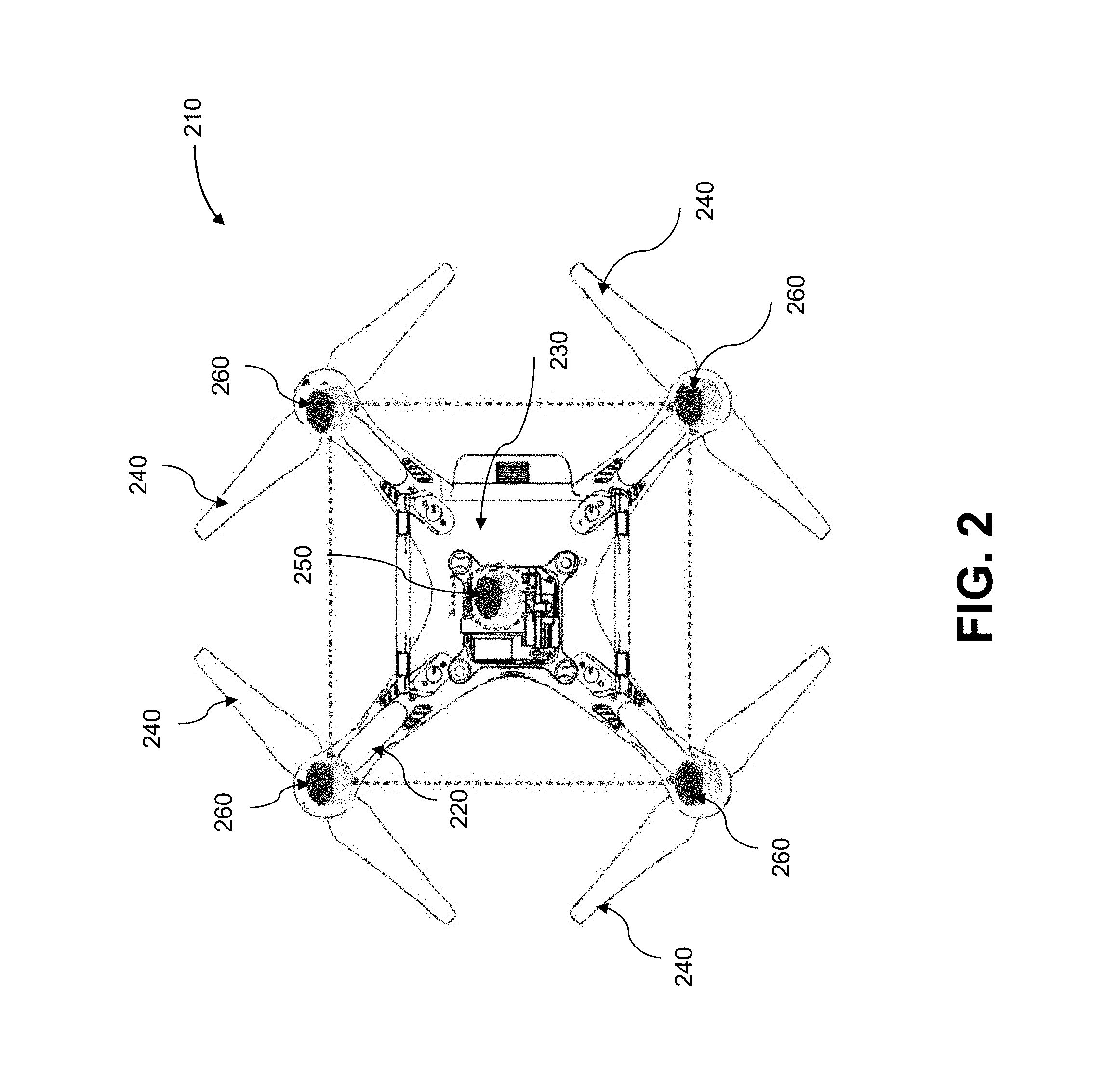

Figure 2: Drone with multiple rotors showing the mixed propeller configurations used for noise reduction through deliberate rotor mismatch.

Field testing shows promising results: community-perceived noise levels decrease without increasing power consumption. The system also offers practical advantages for operators, since existing drone fleets can be retrofitted simply by swapping out propellers rather than requiring entirely new aircraft.

1.2. Bio-Inspired Passive Surface Treatments

While active systems offer flexibility, they also add complexity and potential failure points. For applications where simplicity is paramount, researchers at the University of California (the UC system of 10 campuses and leading research institutions serving California and the world) developed a completely passive approach. Their 3D-serrated cicada surface takes inspiration from nature, wrapping each blade in a sinusoidal groove-and-rib pattern that extends from root to tip.

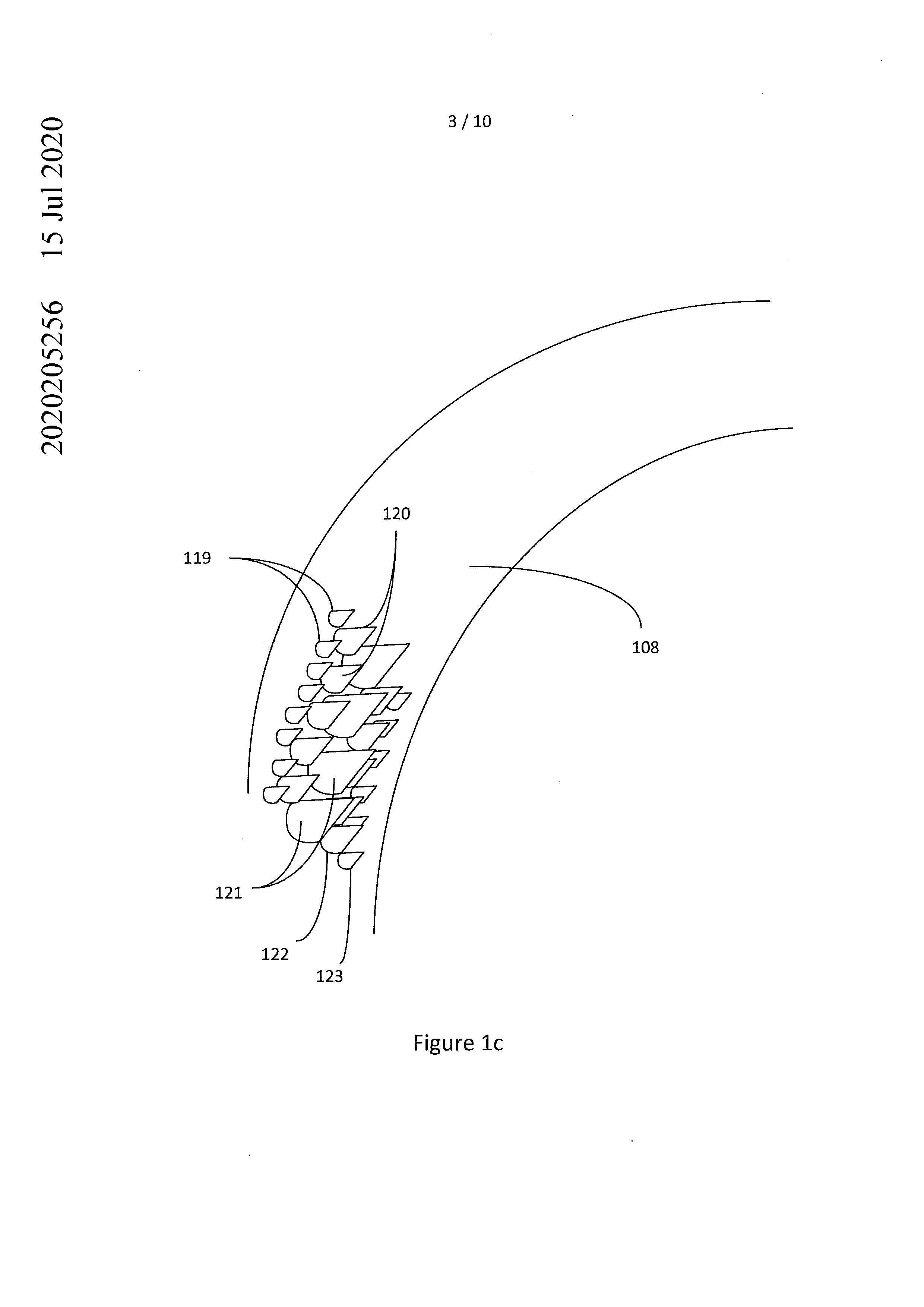

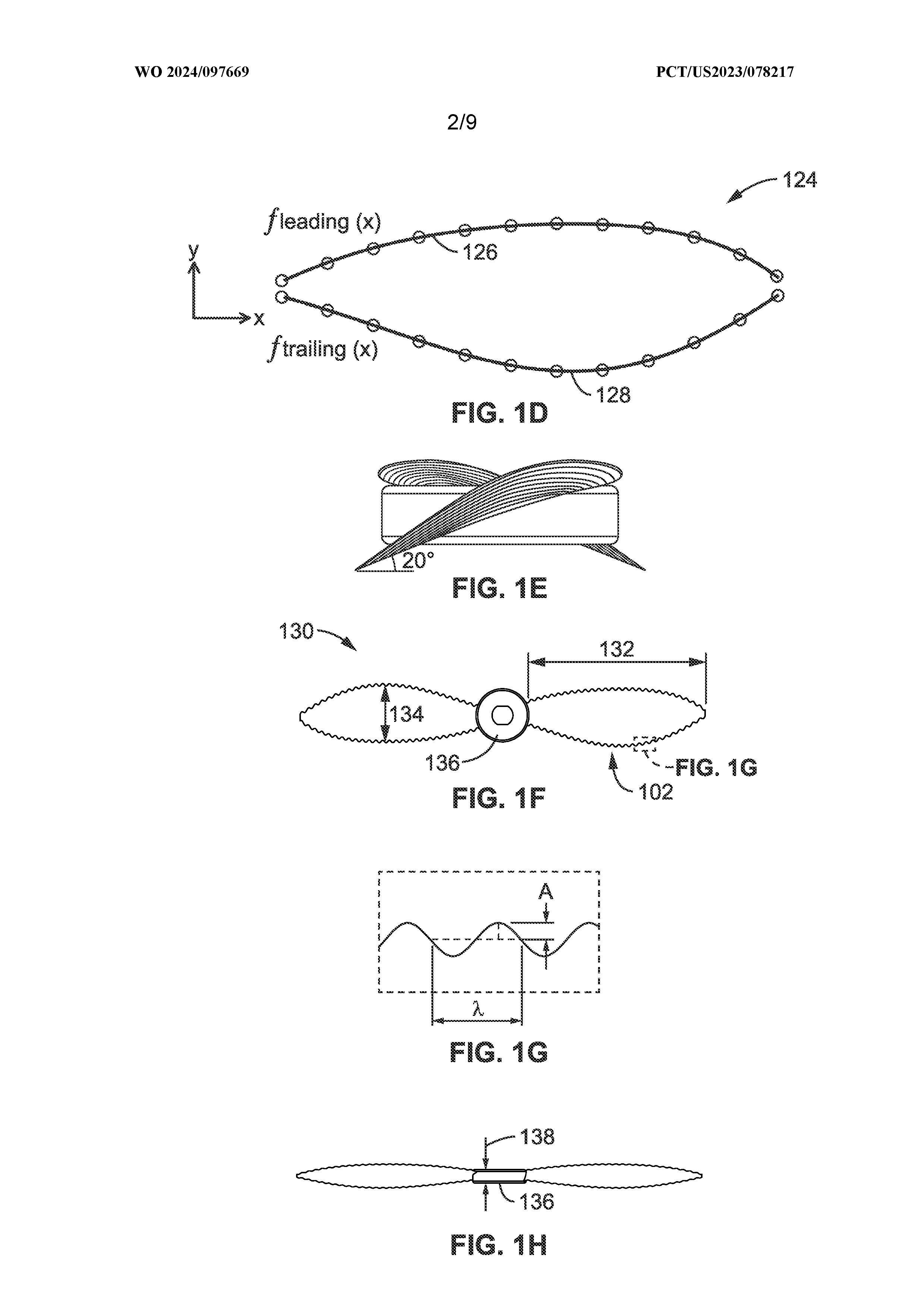

Figure 3: Patent diagram showing bio-inspired 3D-serrated cicada surface with sinusoidal groove-and-rib patterns on propeller blades for passive noise reduction.

This bio-inspired texture works by managing airflow at the microscopic level. The grooves hold the boundary layer close to the blade surface, while the ribs break up coherent vortices before they can shed and create noise. The result is a propeller that delivers both improved aerodynamic efficiency and significant noise reduction across multiple kilohertz frequencies. Since the pattern is built directly into the blade structure, it requires no additional mass, actuators, or ongoing maintenance—making it an attractive solution for commercial drone operations.

1.3. High-Altitude Optimization and Integrated Design

Operating at different altitudes presents additional challenges for drone propeller design. Engineers at Aerospace Times Feihong (a CASC-affiliated UAV developer known for the Feihong series, including the FH‑97A loyal‑wingman demonstrator) addressed this by developing an integrated optimization approach. Their system combines motor parameters with an oval tip + zig-zag trailing edge design to create a 17-inch propeller that maintains both quiet operation and efficiency from sea level up to 5,000 meters.

Figure 4: Patent diagram showing drone propeller with oval tip and zig-zag trailing edge design for noise reduction and efficiency optimization.

The design works through three complementary mechanisms. The rounded tip reduces the strength of vortices that form at the blade ends, while the sinusoidal trailing edge disrupts the regular shedding of air that creates noise. The specific 17-inch diameter was chosen to avoid structural resonance frequencies that could amplify unwanted vibrations. Together, these features deliver more than 8 decibels of noise reduction while actually improving the thrust-to-power ratio compared to conventional designs.

1.4. Curved Winglet Transitions for Safety and Performance

The blade tip represents another critical area where noise reduction, safety, and manufacturing practicality must work together. Engineers at EHang (a Chinese advanced air mobility company developing autonomous passenger eVTOLs such as the EH216) developed a curved wing-tip transition that addresses all three concerns simultaneously.

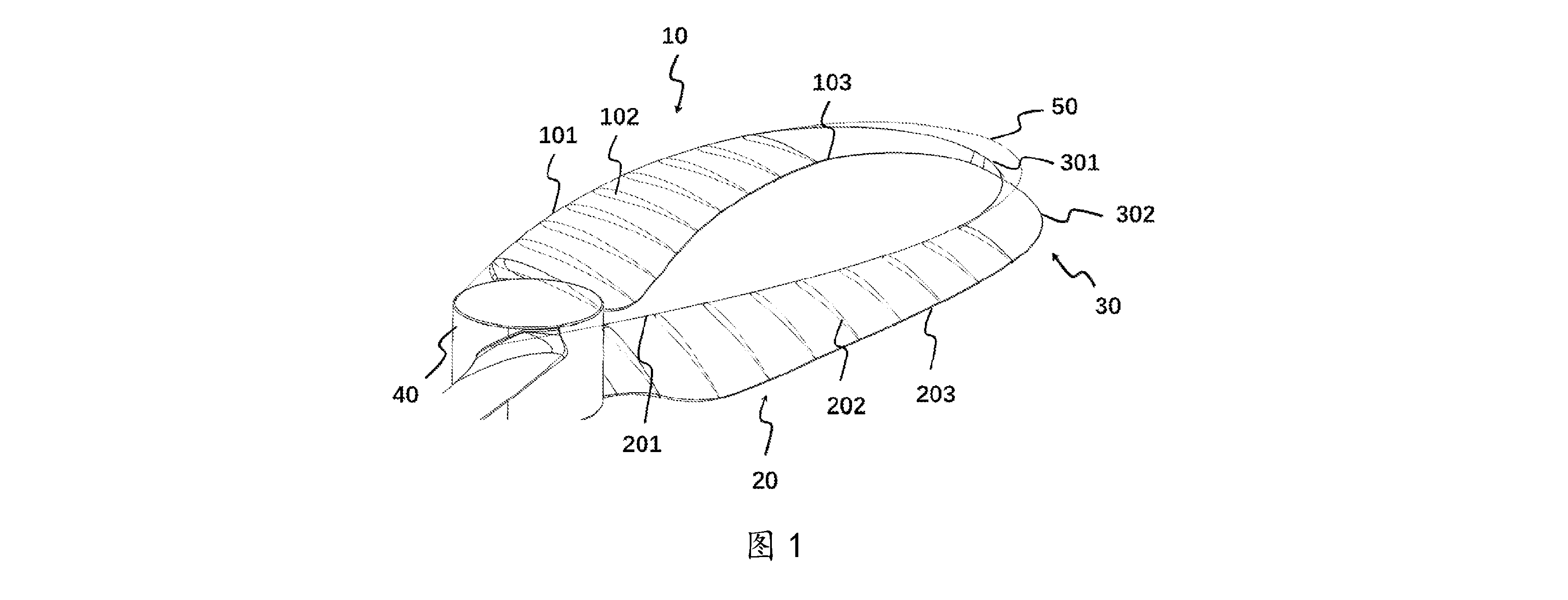

Figure 5: Curved blade tip design with thickened winglet transition for noise reduction and safety

Instead of using sharp blade ends that create strong vortices, their design features thickened, twisted winglets with a catenary shape. This curved transition serves multiple purposes: it suppresses the roll-up of vortices that generate noise, while maintaining a minimum chord width of 18 mm to enable low-cost composite molding processes. The winglet design also delivers practical benefits beyond noise reduction—it improves both hover noise characteristics and the lift-to-drag ratio. An additional safety advantage comes from the rounded edges, which present less risk to ground crews working around the aircraft.

1.5. Pressure-Relief Channels for Trailing Edge Noise

Even with softened tips, the trailing edge of propeller blades continues to generate high-frequency sound as air flows off the blade surface. Engineers at Hamilton Sundstrand (a legacy UTC aerospace systems supplier specializing in power systems, environmental control, and APUs, now part of Collins Aerospace) developed an elegant solution: trailing-edge pressure-relief channels embedded directly within the blade structure.

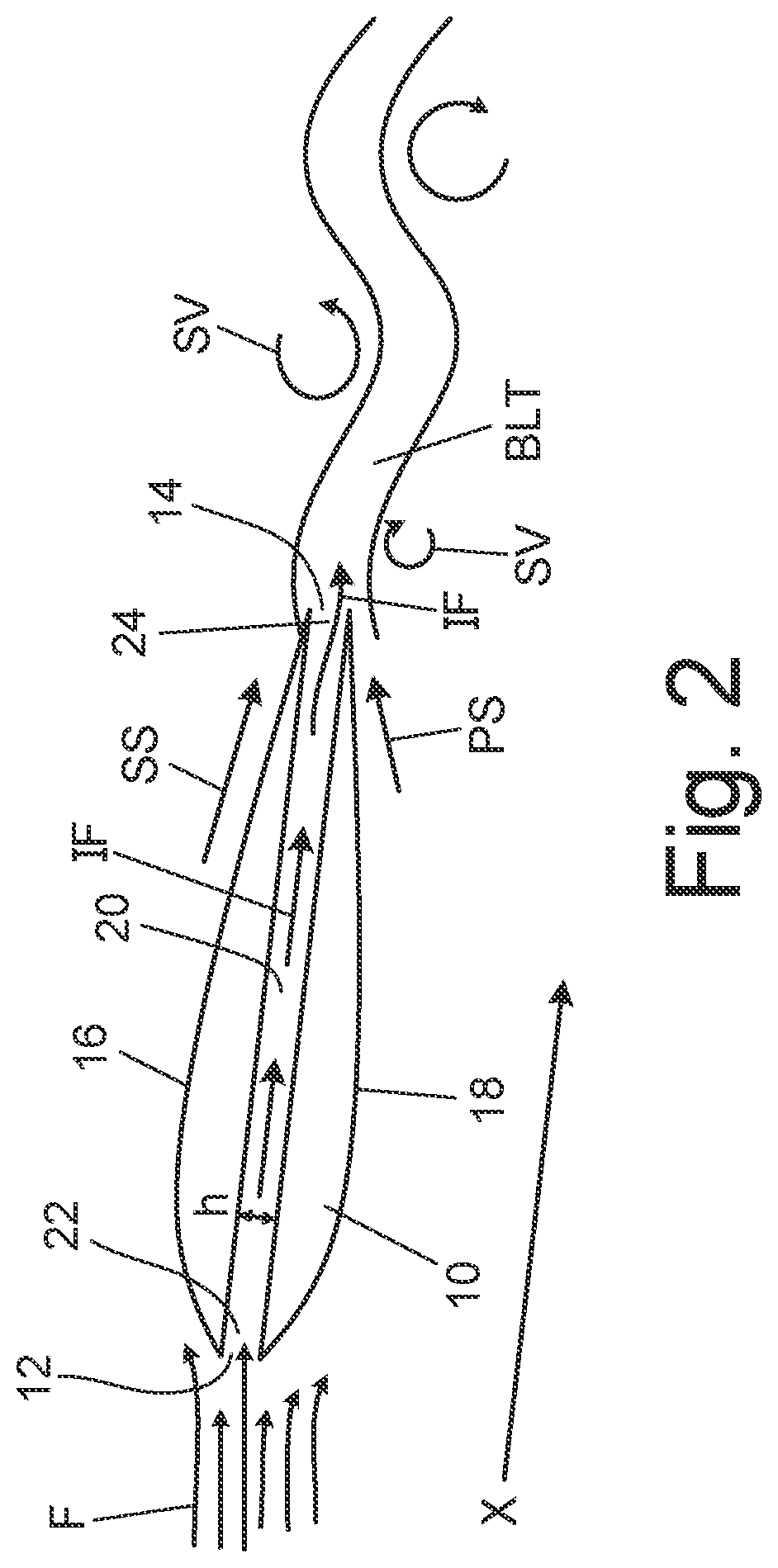

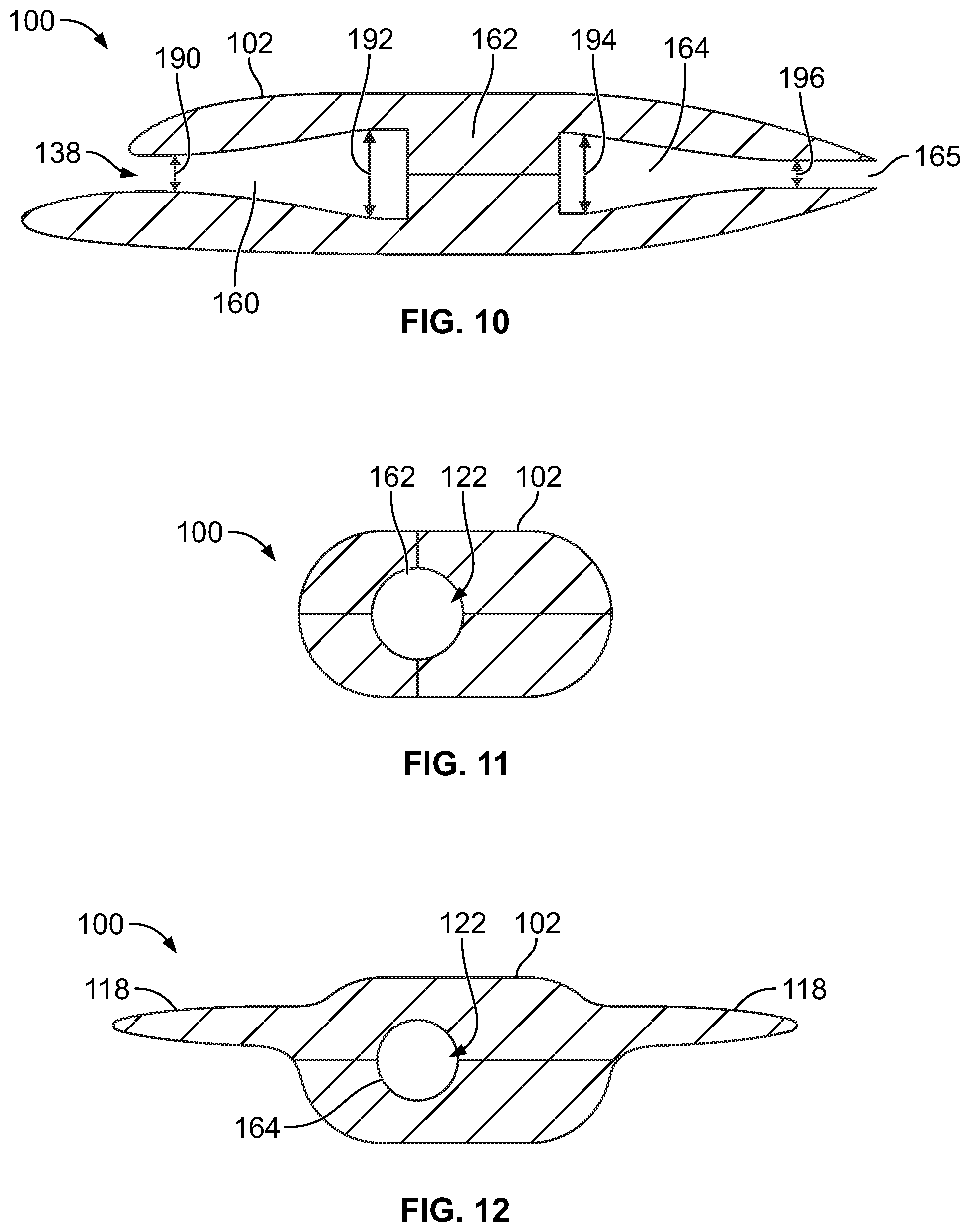

Figure 6: Cross-sectional view of a propeller blade showing internal pressure-relief channels that allow air to bleed from pressure side to suction side, reducing trailing-edge noise.

These channels work by allowing high-pressure air from the blade's pressure side to bleed through to the suction side before reaching the trailing edge. This pressure equalization reduces the momentum difference between the two airflows, which in turn suppresses the turbulence and vortex shedding that create noise. The channels are formed during the composite lay-up process, making them an integral part of the blade rather than an external add-on. This approach avoids the drag penalties associated with surface modifications while maintaining the blade's structural integrity. The scalability of this concept is particularly noteworthy—the same principle can be applied across a wide range of applications, from small micro-quadcopter propellers to massive wind turbine blades.

While blade geometry and surface treatments can reduce much of the broadband noise energy, they don't eliminate the distinct tonal components that make drones particularly recognizable. To address these remaining frequencies, engineers focus on how multiple rotors interact with each other—either by synchronizing them precisely or by deliberately mismatching their timing.


2. Rotor Synchronisation: Phasing, Speed Modulation, and Coaxial Interference

2.1. Spectral Spreading Through RPM Dithering

The simplest approach involves varying each motor's speed slightly around its target RPM. Amazon engineers developed this technique, called spectral spreading through rotor RPM dithering, to address the sharp tonal noise that makes drones so recognizable.

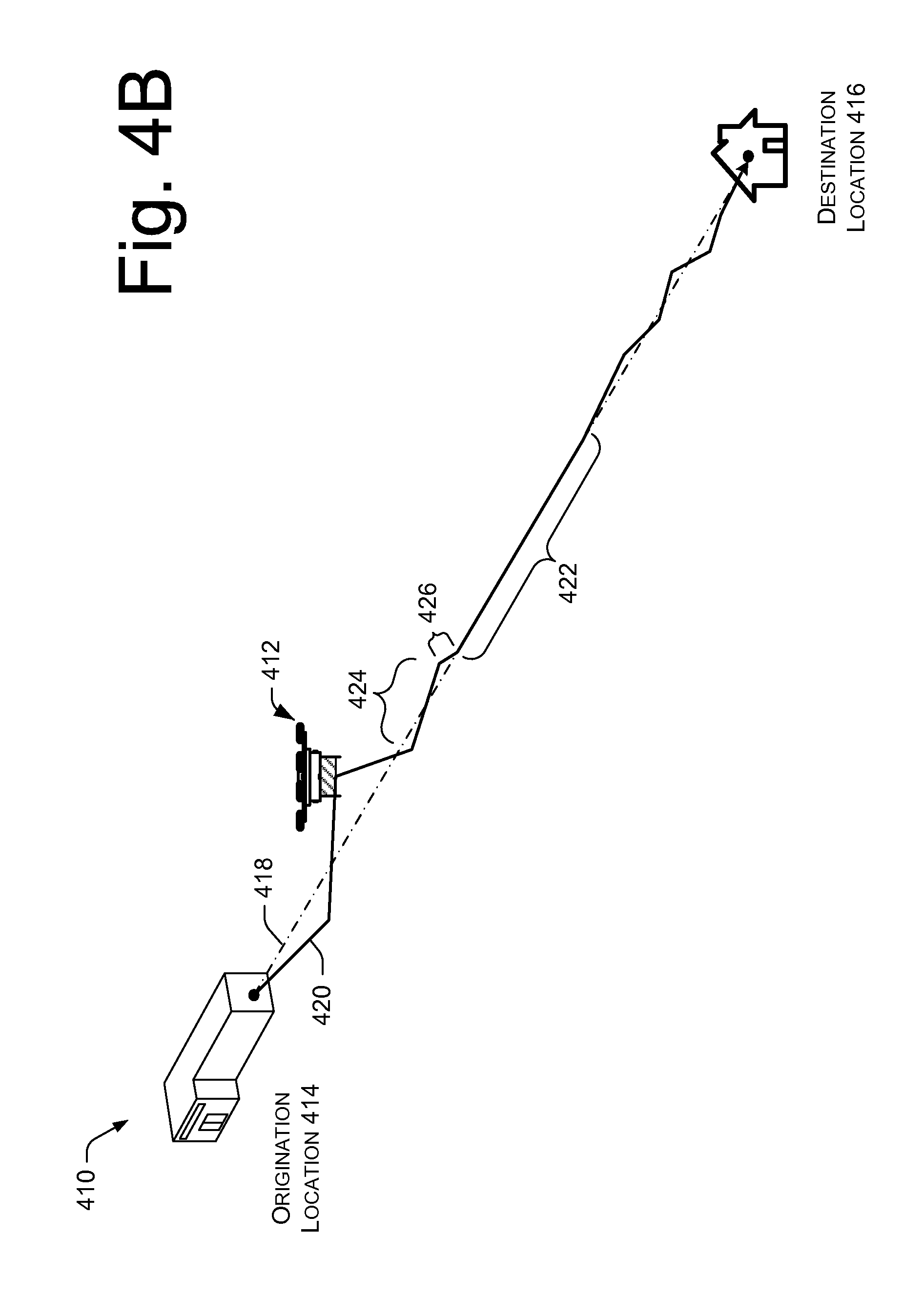

Figure 7: Graph showing UAV motor frequency randomization across different flight phases (ascending, transit, descending, hover) with two motors having varying RPM patterns to spread acoustic energy and reduce tonal noise.

The method works by continuously modulating each rotor's speed within a small range. Instead of spinning at a constant RPM that creates pure tones, the propellers speed up and slow down slightly in controlled patterns. This spreads the acoustic energy across a wider frequency band, transforming sharp, piercing sounds into softer broadband noise. The technique requires no additional hardware—it's implemented entirely through software control of existing motors.

To optimize the results, Amazon incorporated psycho-acoustic feedback loops directly into the flight control firmware. These algorithms continuously monitor the sound signature and adjust the dithering patterns in real time to minimize both overall loudness and the sharpness that makes certain frequencies particularly annoying to human ears.

2.2. Static Offset Patterns for Precision Flight Phases

However, continuous dithering isn't always practical during certain flight phases. For hover segments where precise control is essential, engineers at Wing (Alphabet's drone‑delivery company operating fast, on‑demand aerial delivery services with retailers) developed a different approach using static offsets. Their temporal-and-spectral staggering of rotor commands assigns each propeller a slightly different RPM and phase angle that remains constant during the maneuver.

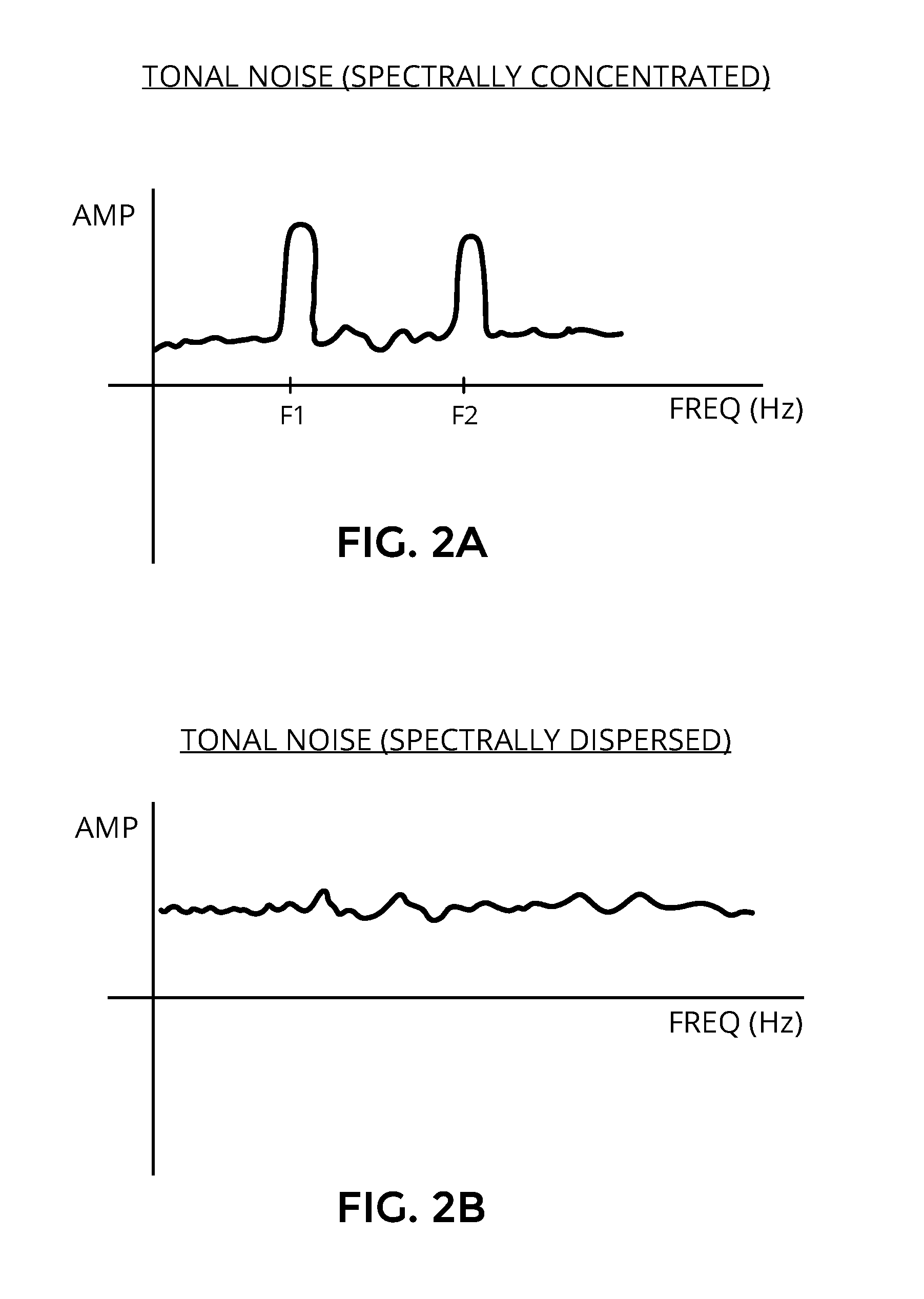

Figure 8: Spectral analysis showing how tonal noise from synchronized rotors becomes dispersed when phase-shifted, reducing piercing peaks into more pleasant distributed frequencies.

This creates an interesting acoustic effect: instead of hearing multiple rotors spinning in perfect unison (which produces a single piercing tone), ground observers hear what sounds more like a musical chord. The different frequencies blend together in a way that's less jarring to human ears. Wing's system even allows operators to program specific melodic patterns that can serve as an acoustic signature for their fleet, helping to build brand recognition while simultaneously reducing noise complaints from communities.

2.3. Flight-Path-Aware Acoustic Beamforming

Engineers at Aurora Flight Sciences (a Boeing company that designs, builds, and flies advanced aircraft and autonomy technologies) developed a more sophisticated approach called flight-path-aware acoustic beamforming control. This system treats the entire set of rotors as a phased array antenna, but for sound waves instead of radio signals.

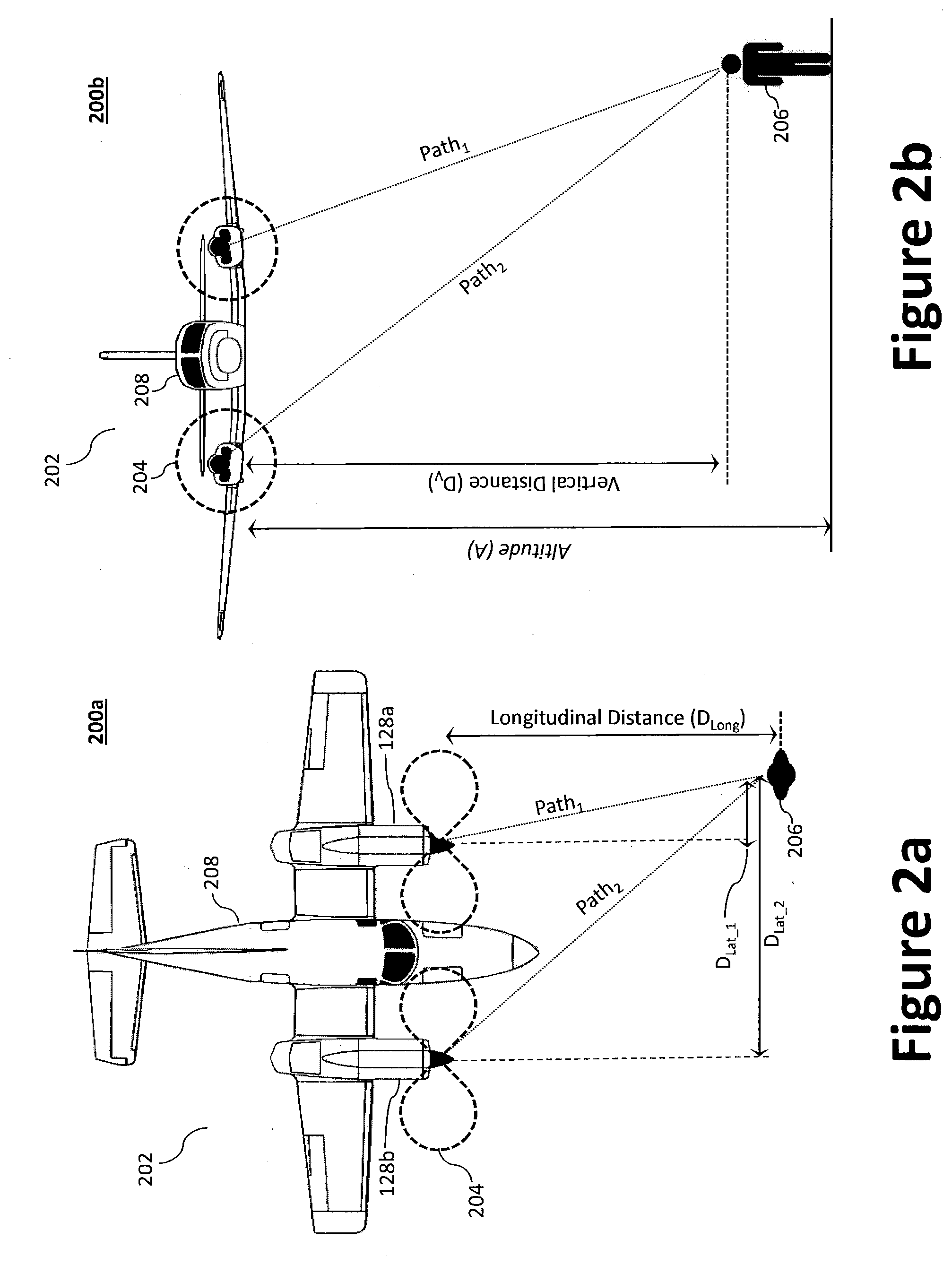

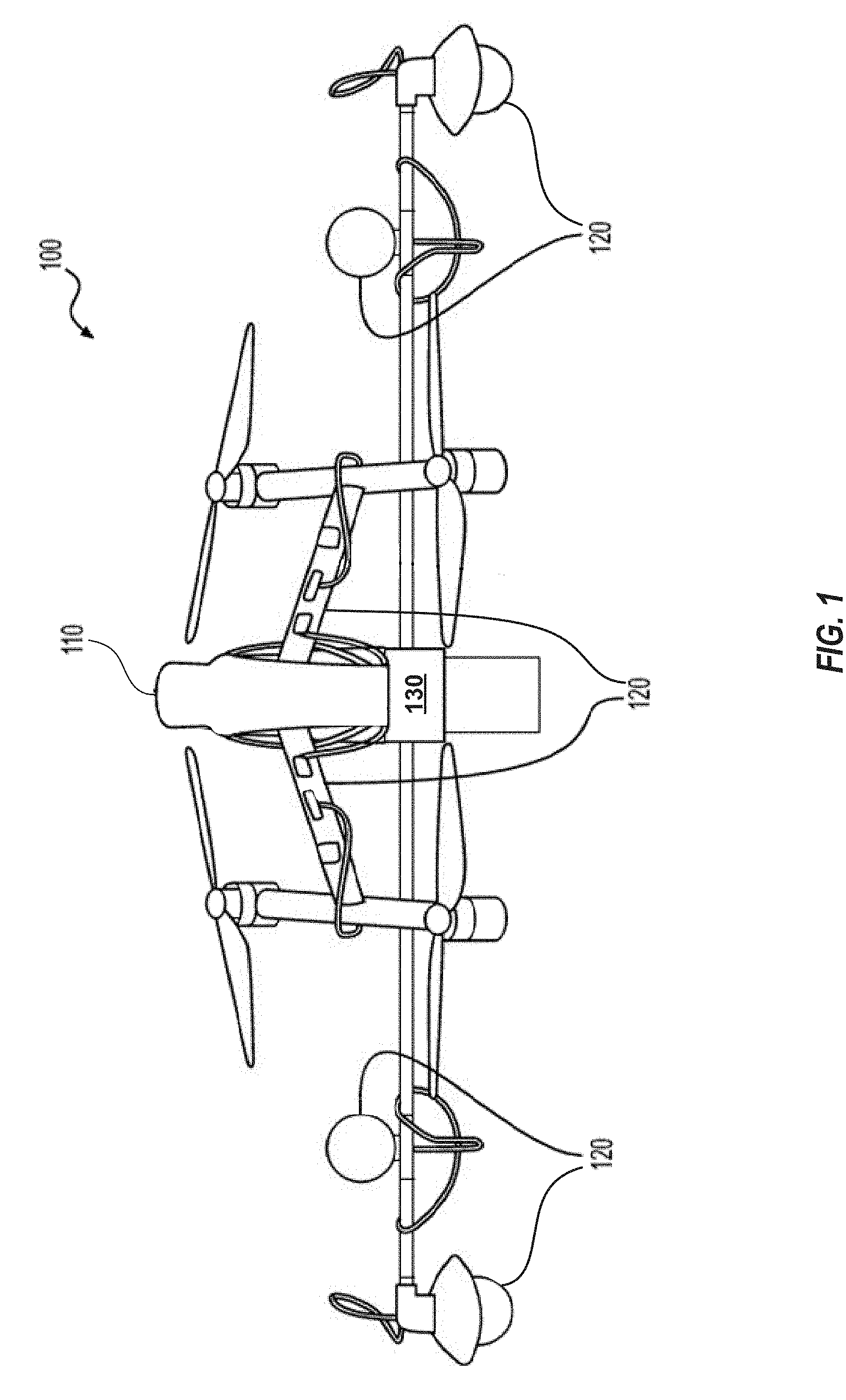

Figure 9: Aircraft with rotor noise propagation paths showing how acoustic beamforming can direct sound away from sensitive ground locations

The concept works by intercepting flight commands before they reach individual motors. The beamforming controller then redistributes the required RPM and phase timing across all rotors to create acoustic "nulls"—zones of reduced sound intensity—that can be steered toward specific locations on the ground. The system identifies these sensitive areas using either GIS databases that mark schools, hospitals, and residential zones, or through onboard vision systems that detect people and buildings in real time.

This approach represents a significant advance over static noise reduction techniques. Instead of simply making the aircraft quieter overall, the system can actively direct the remaining noise away from areas where it would cause the most disturbance, while the aircraft continues to follow its intended flight path.

2.4. Mechanical Phase-Lock Systems

Instead of continuously adjusting rotor timing through software, some aircraft use mechanical systems to lock the phase relationship between propellers. Engineers at NASA (the U.S. civil space and aeronautics agency leading programs such as Artemis, ISS operations, and Earth science) developed analytical 180°/Nb phase-offset propeller arrays that maintain a fixed angular separation between co-rotating discs.

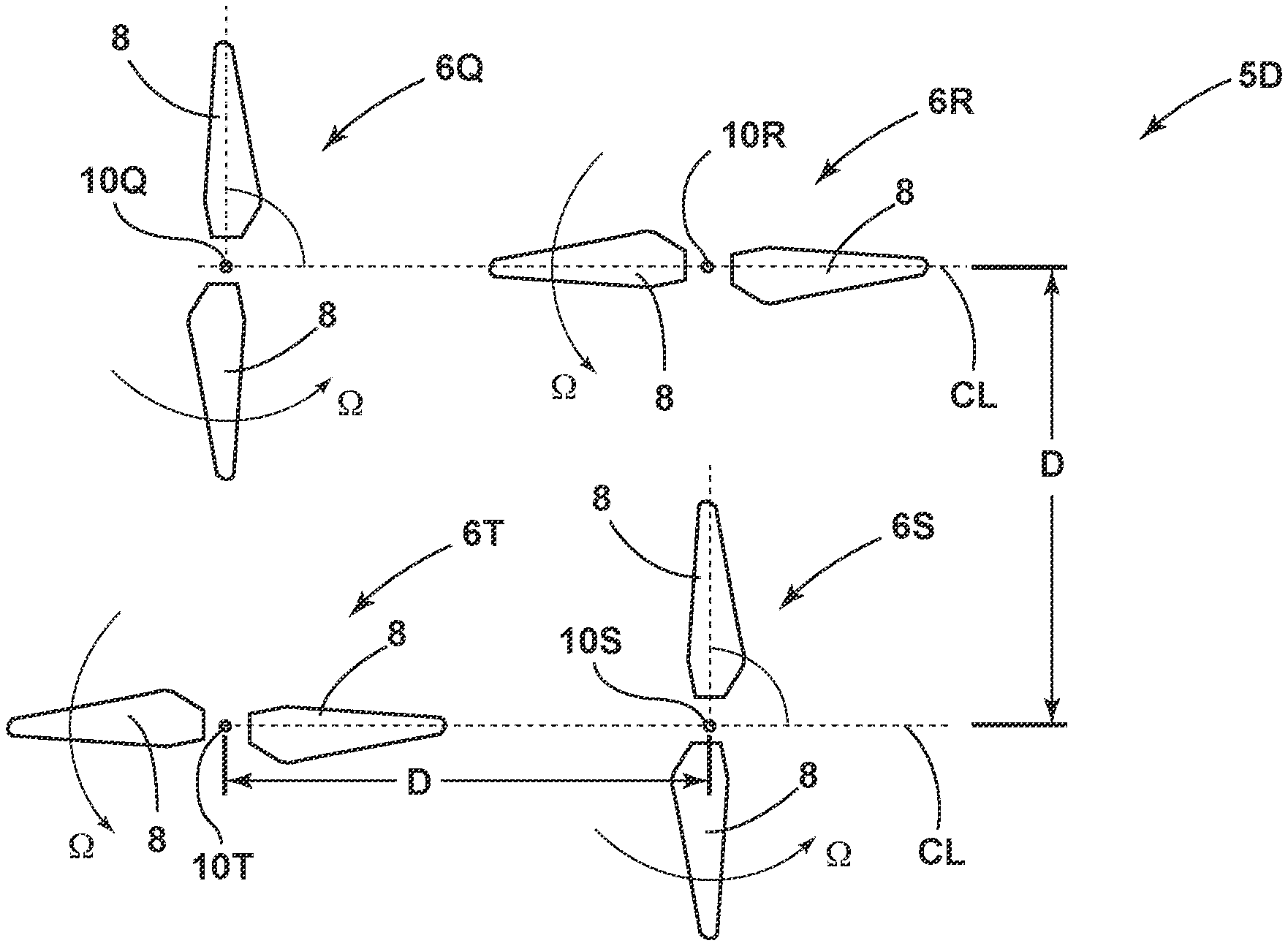

Figure 10: NASA's mechanical phase-locked propeller system showing fixed angular separation for noise reduction through destructive interference

This approach works by positioning the propellers so their sound waves consistently cancel each other out through destructive interference. The system requires only basic hardware—either a phase-lock loop or a simple geared coupling—to maintain the precise timing relationship. Testing shows this mechanical approach achieves 5–6 decibels of noise suppression compared to unphased propeller pairs, while avoiding the complexity of real-time software control systems.

2.5. Coaxial Configurations and Adaptive Blade Systems

Coaxial propeller configurations offer another approach to noise reduction by stacking rotors vertically. Amazon engineers developed a co-rotating coaxial pulse-cancellation system that places two propellers spinning in the same direction at a precise vertical spacing. This arrangement allows the pressure waves from the upper rotor to meet those from the lower rotor exactly out of phase, creating destructive interference that reduces overall noise.

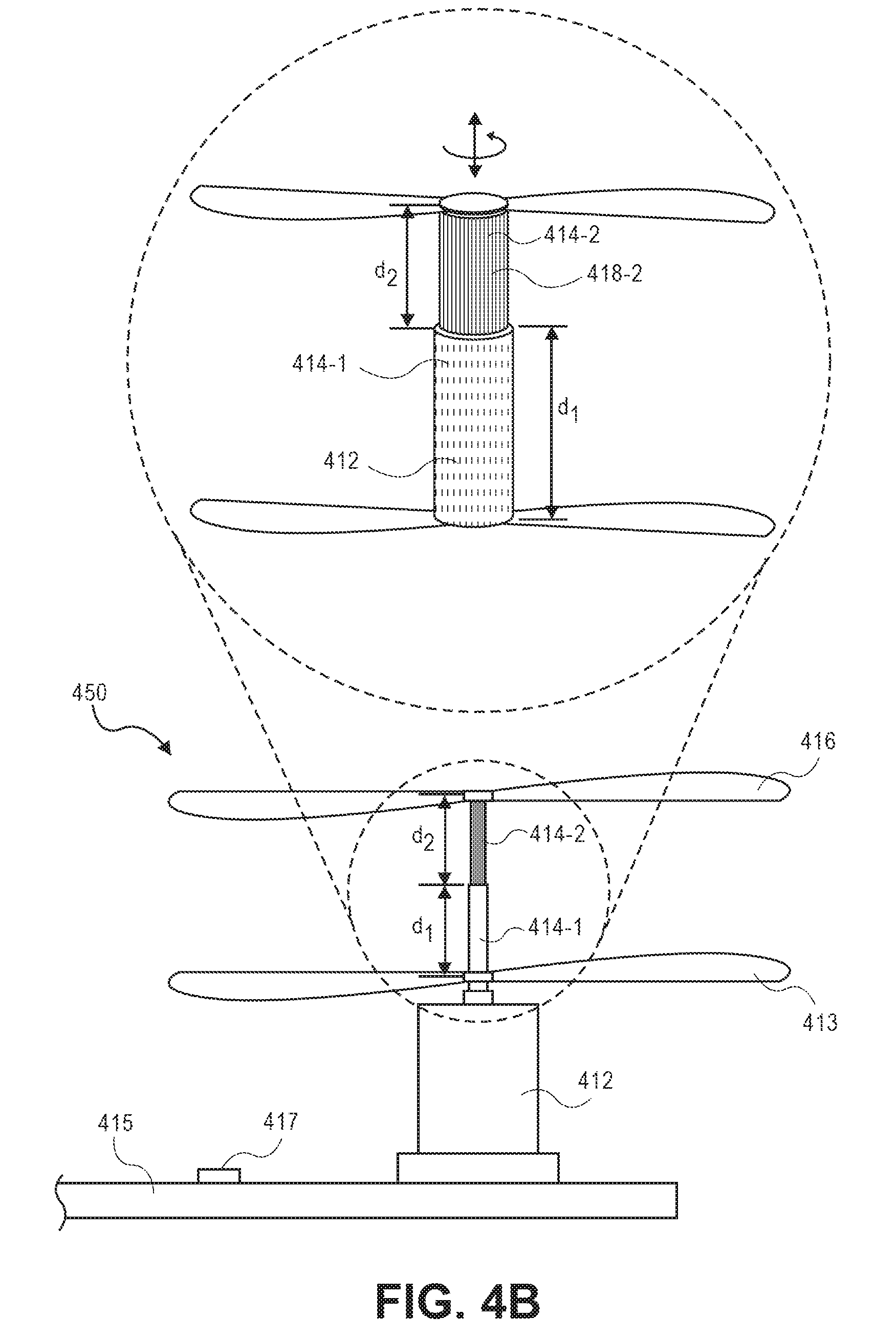

Figure 11: Coaxial propeller system with adjustable vertical spacing for acoustic wave cancellation

The system becomes even more versatile when combined with in-flight extendable blade stacks. This mechanism allows the aircraft to physically adjust the blade radius during flight rather than changing RPM. The result is two distinct operating modes: a quiet-hover configuration optimized for noise reduction in populated areas, and a high-efficiency cruise setting that maximizes range and speed. By mechanically trimming the blade geometry instead of relying solely on motor speed changes, the system maintains optimal acoustic performance across different flight phases.

Even with optimized rotor timing and phasing, some acoustic energy will always escape from the propeller system. The next step in comprehensive noise reduction involves physically containing this residual sound within the aircraft structure itself. This approach shifts focus from managing the sound at its source to preventing it from radiating outward to ground observers.


3. Aerodynamic Containment: Ducts, Shrouds, and Airframe Acoustic Structures

3.1. Recessed Inlet Design for Complete Propeller Burial

Another approach involves burying the propeller completely within the aircraft structure. Boeing (a major U.S. aerospace company producing commercial airliners and defense/space systems) developed a recessed high-aspect-ratio inlet that positions the propeller intake well behind the wing's leading edge.

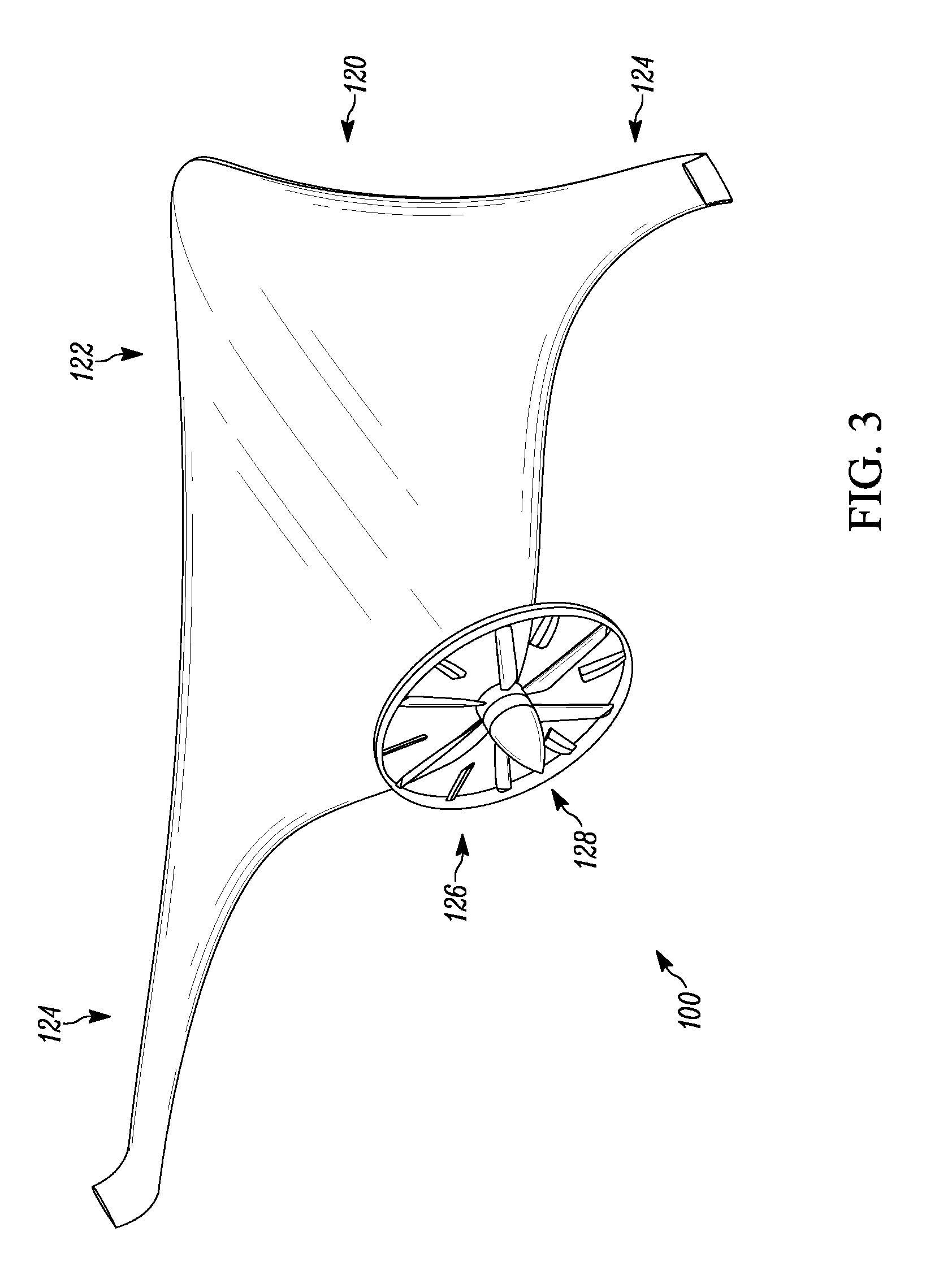

Figure 12: Boeing's recessed high-aspect-ratio inlet design with propeller positioned behind the wing's leading edge for noise reduction

This design works by using the aircraft's own structure as a sound barrier. The recessed inlet creates a channel that directs airflow upward while simultaneously reflecting acoustic energy skyward, away from ground observers. The high-aspect-ratio geometry helps focus the remaining broadband noise from the propeller blades into a narrow beam that disperses quickly with altitude. Unlike conventional acoustic liners that add significant weight to the aircraft, this approach achieves noise reduction through clever aerodynamic shaping alone, making it particularly attractive for weight-sensitive applications.

3.2. Compact Shroud Solutions

Complete burial isn't always practical for all aircraft designs. For these cases, compact shrouds offer a lighter alternative that still provides significant noise reduction.

HALO Ring Propeller Concept

Northrop Grumman (a U.S. aerospace and defense prime known for stealth bombers like the B-2 and B-21, satellites, and national-security systems) developed the HALO ring propeller concept, which uses a concentric hub-and-ring framework around the propeller blades.

Figure 13: Northrop Grumman's HALO ring propeller design showing the concentric hub-and-ring framework around the propeller blades for reduced acoustic signature.

This design works by raising the blade-pass frequency while simultaneously reducing tip speed—two changes that move the acoustic signature away from the most annoying frequencies for human ears. The ring structure also provides physical containment for some of the acoustic energy that would otherwise radiate outward.

Perforated Resonating Shroud for Urban Applications

Urban air-taxi developers have scaled this concept into larger annular enclosures. The perforated resonating shroud places a vented wall just millimeters from the propeller tips. This narrow gap functions as a Helmholtz resonator—essentially turning the entire shroud into a tuned acoustic cavity that specifically targets and dampens the low-frequency rotor tones that travel furthest and cause the most ground-level disturbance. Beyond noise reduction, these shrouds also provide passenger-grade safety by fully containing the spinning blades within a protective barrier.

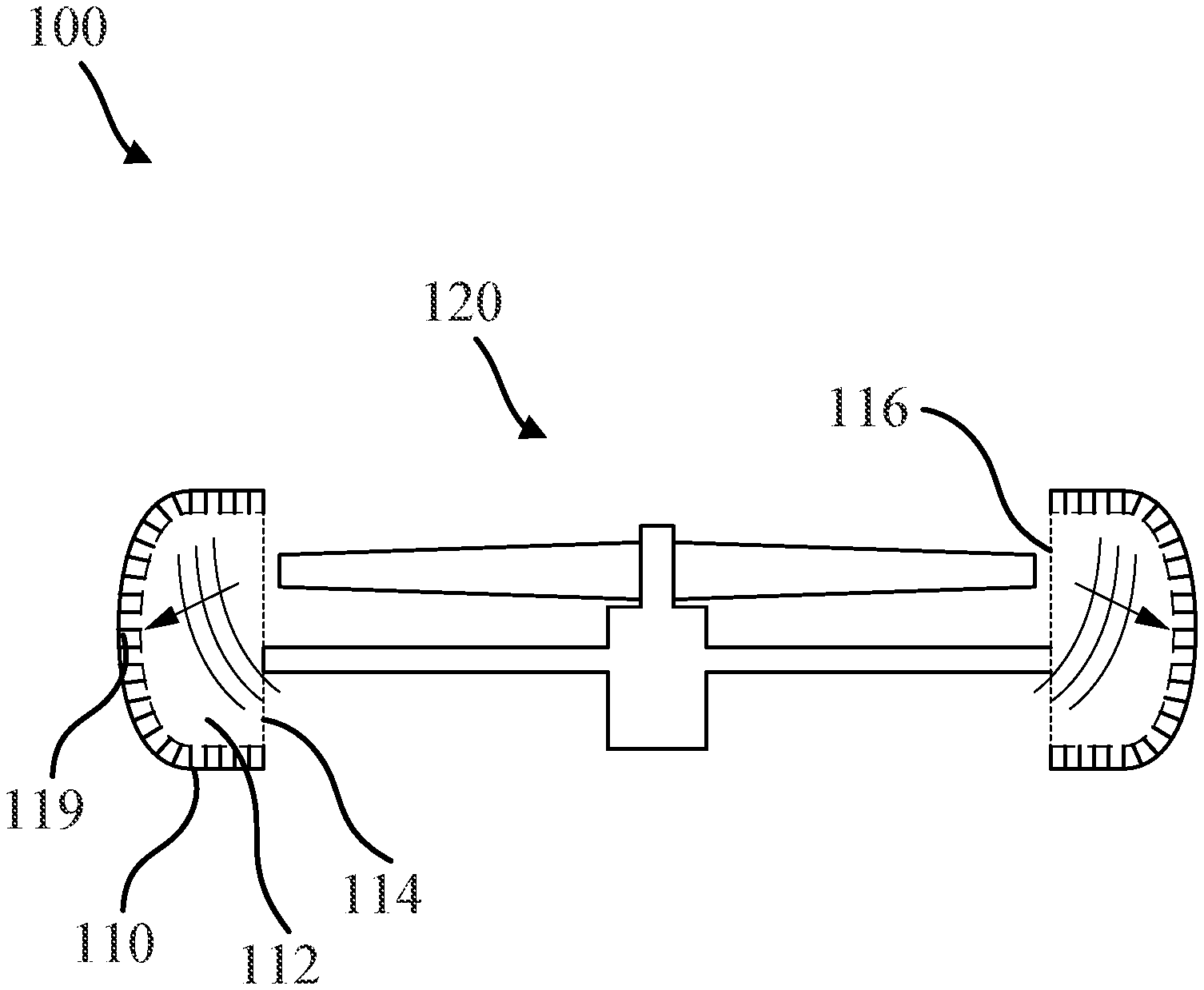

Figure 14: Cross-sectional view of a perforated resonating shroud system showing the narrow gap between propeller tips and vented wall that creates a Helmholtz resonator for noise reduction.

3.3. Multi-Functional Active Noise Control Systems

Dotterel Technologies (a New Zealand company specializing in noise reduction and microphone array technology for capturing clear audio around drones and other high-noise platforms) have developed a multi-functional acoustic shroud that combines advanced materials with active noise control. The system lines the duct walls with ridged electro-spun nanofibers and multi-layer foams that provide passive sound absorption across a wide frequency range.

Figure 15: Cross-sectional view showing the ridged nanofiber structure and acoustic absorption materials within the duct shroud design

What makes this approach particularly sophisticated is the integration of embedded microphones throughout the shroud structure. These sensors continuously monitor the acoustic environment and feed data to adaptive anti-noise software that generates real-time sound cancellation. The result is dramatic enough that cinematography drones can capture studio-quality audio even while hovering nearby.

The system's versatility comes from its tunable design. Manufacturers can adjust both the porosity of the nanofiber materials and the software algorithms to match specific mission requirements. This means the same basic shroud architecture can be optimized for different applications, whether prioritizing maximum noise reduction for urban operations or balancing acoustic performance with airflow efficiency for longer-range flights.

3.4. Internal Duct Optimization and Stator Positioning

Honda (a global automaker and power-equipment maker that also produces the HondaJet via Honda Aircraft Company) found that the placement of internal vanes can significantly impact both noise and efficiency. Their rear-stator duct design relocates the stator vanes to a position behind the propeller disc rather than in front of it.

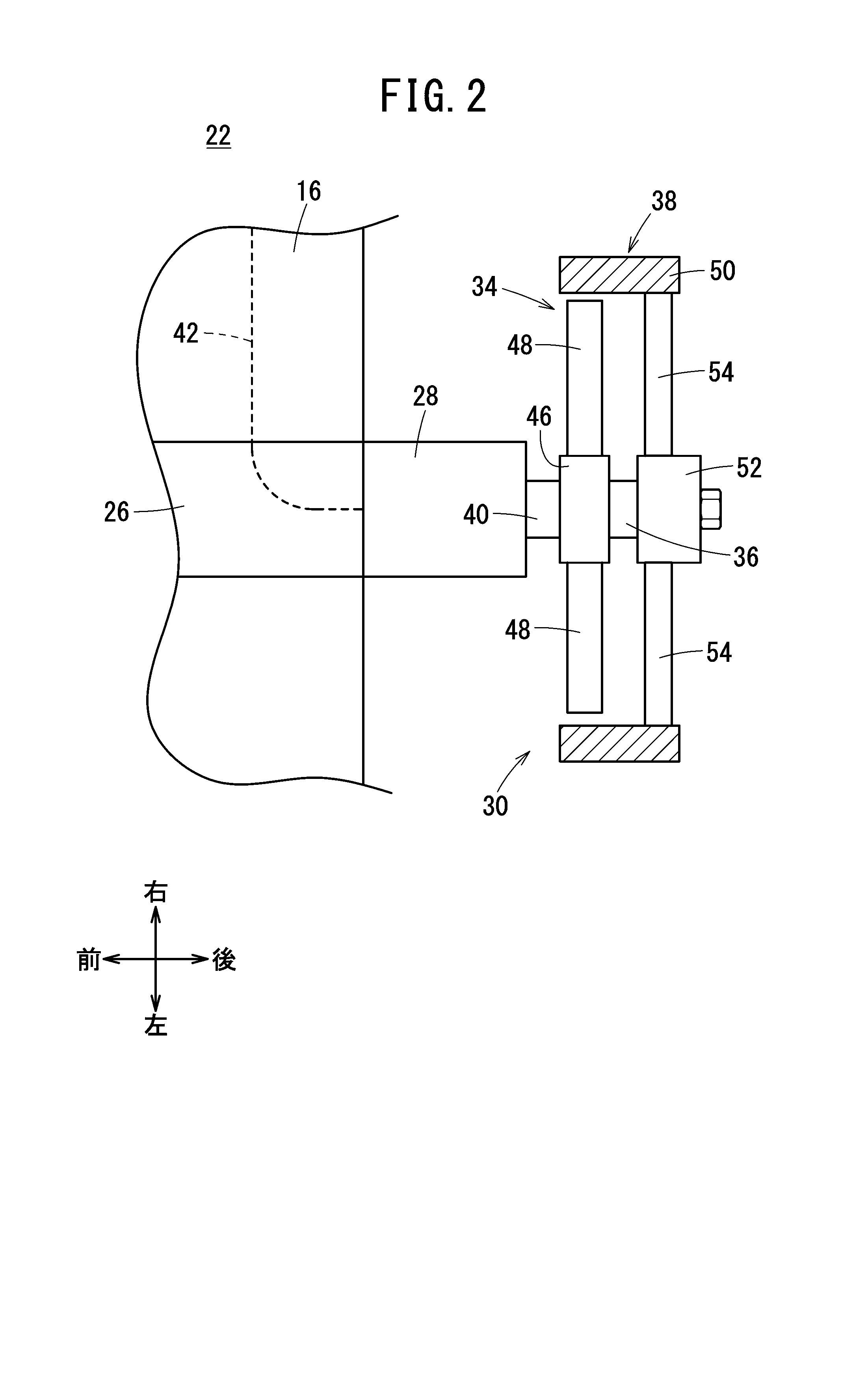

Figure 16: Cross-sectional view of Honda's rear-stator duct design with propeller and internal vane configuration

This configuration offers two key advantages: it recovers energy from the swirling airflow that would otherwise be wasted, and it reduces the turbulent inflow that hits the propeller blades. When Honda combined this rear-stator geometry with a hollow sandwich duct wall construction, they created a propulsion module that delivers both weight savings and noise reduction. The hollow wall structure maintains the same acoustic dampening properties as solid materials while using significantly less material. This dual benefit extends flight endurance through reduced weight while preserving the safety advantage of fully contained propeller blades.

3.5. Fuselage-Integrated Acoustic Treatment

Aircraft fuselage surfaces can also play a role in noise reduction, even when they don't contain the propellers directly. Rohr (a Collins Aerospace company specializing in aircraft engine nacelles and thrust reversers) developed a fuselage-mounted acoustic liner panel that takes advantage of this opportunity. By positioning open rotors near the aircraft body, these liner panels can be placed directly in the path of blade-pass noise, providing the same level of sound attenuation typically found in engine nacelles while adding minimal drag.

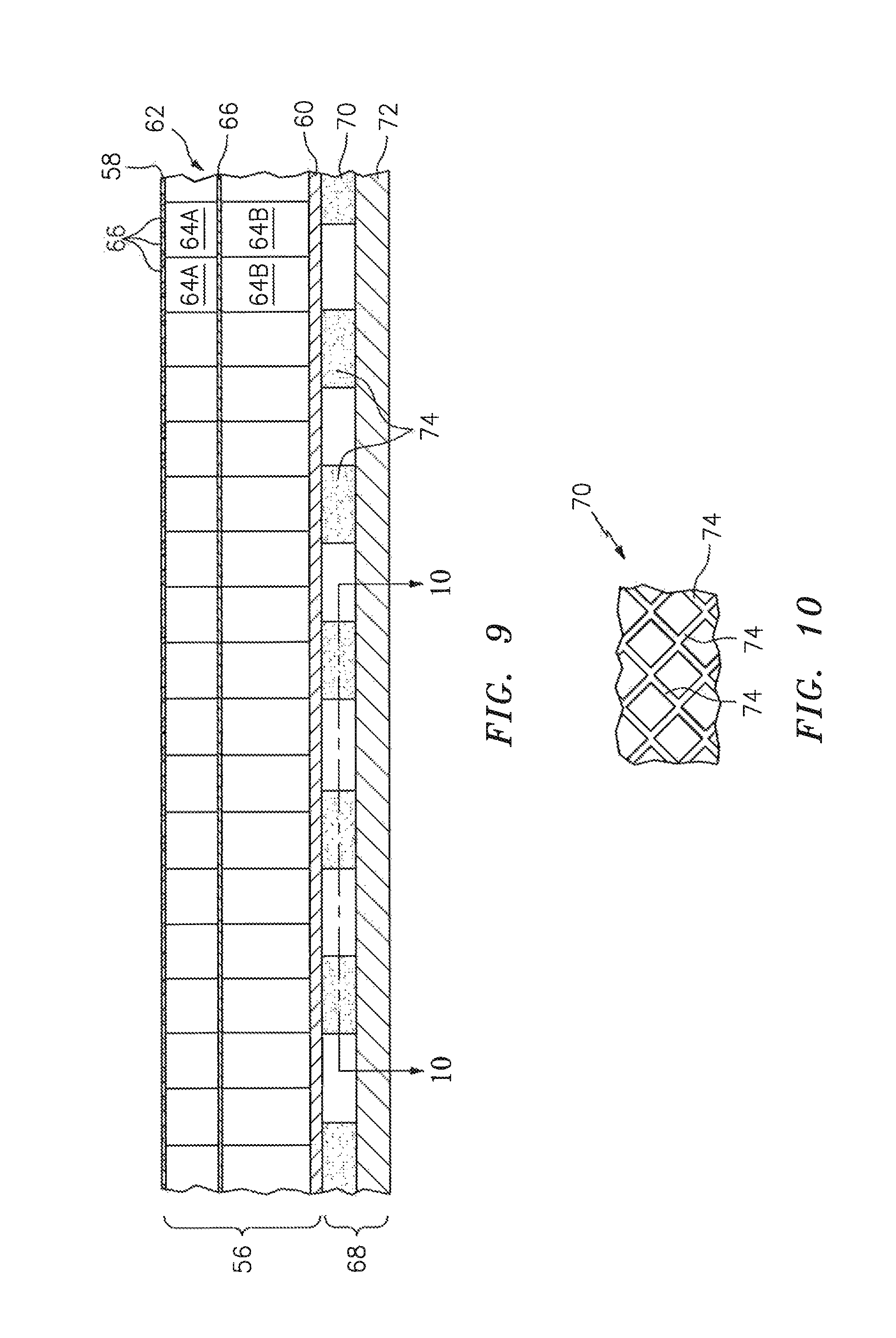

Figure 17: Cross-sectional view of a fuselage-mounted acoustic liner panel with honeycomb structure for aircraft noise reduction

For smaller pusher-configuration aircraft, Rohr created another solution: a fibrous keel-tube absorber installed at the tail junction. This component addresses a specific acoustic problem that occurs when vortices from the fuselage interact with the propeller wake. These vortex-structure interactions can generate additional noise that bypasses propeller-focused noise reduction measures. The fibrous absorber disrupts these interactions at their source, providing an additional layer of noise control for aircraft designs where other containment methods aren't practical.

Even with optimized rotor geometry, synchronized timing, and aerodynamic containment, some noise will always find alternative paths through the aircraft structure itself. Vibrations from the propellers can travel through mounting brackets, support frames, and the fuselage skin before radiating as sound from unexpected surfaces. To achieve comprehensive noise reduction, engineers must also address these structural transmission paths through isolation systems and damping materials.


4. Structural Isolation, Damping Materials, and Exhaust Silencing

4.1. Floating Motor Mount Systems

Amazon engineers developed a floating motor mount assembly that addresses vibration transmission through the aircraft structure. The system suspends each propeller motor on an elastomeric isolation layer specifically tuned to avoid resonance with the motor's operating frequencies.

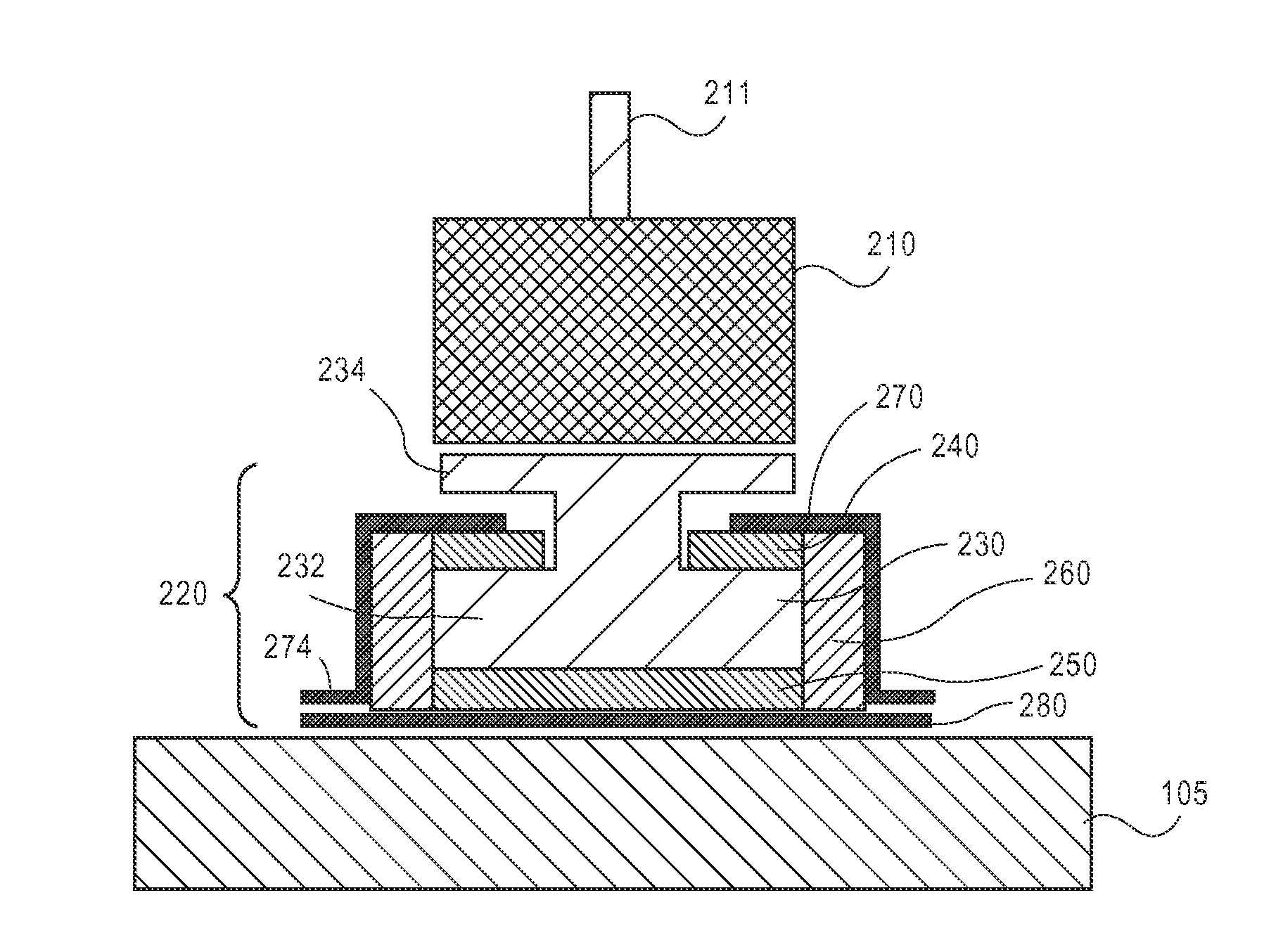

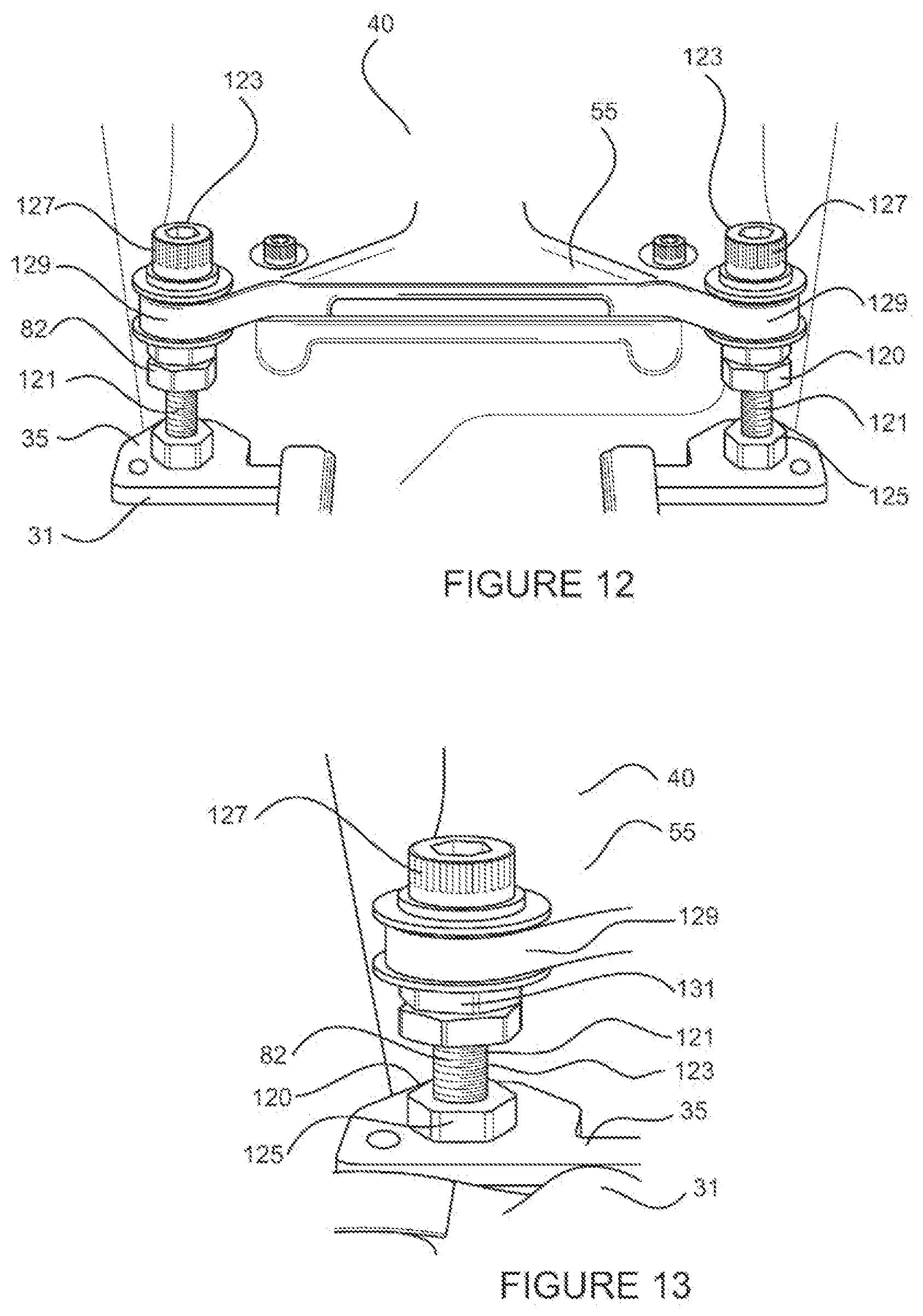

Figure 18: Cross-sectional diagram of a floating motor mount assembly with elastomeric isolation layer for vibration dampening in UAV propeller systems

This approach works by breaking the direct mechanical connection between the spinning propeller and the aircraft frame. The elastomeric material absorbs vibrations before they can travel through the mounting brackets and radiate as noise from other parts of the aircraft. The isolation layer's stiffness is carefully calculated to ensure it doesn't coincide with blade-pass frequencies or motor harmonics that could amplify unwanted vibrations.

Testing shows that this floating mount design reduces audible noise during critical flight phases like takeoff and landing, when aircraft operate closest to populated areas. Beyond acoustic benefits, the elastomeric decoupling also reduces electrical and mechanical stress on motor wiring harnesses, potentially improving system reliability and maintenance intervals.

4.2. Lightweight Metamaterial Damping

When every gram counts, metamaterials offer damping without the mass penalties of traditional materials. Researchers at Ohio State University (a major public research university headquartered in Columbus, Ohio) developed a lightweight hyperdamping metamaterial that achieves this by embedding sparse, periodic inclusions within a foam host material.

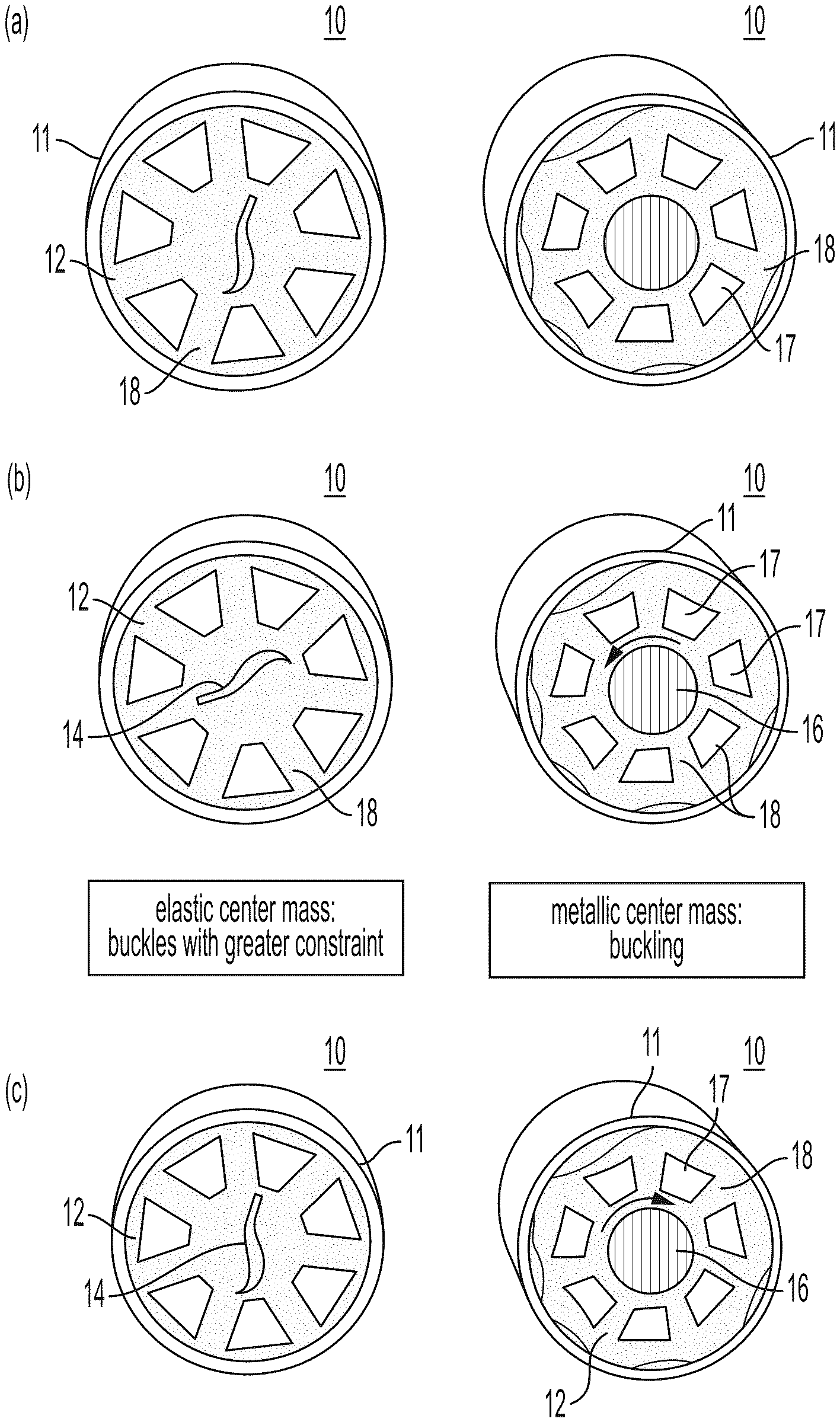

Figure 19: Cross-sectional diagrams showing metamaterial structures with elastic and metallic center masses for hyperdamping applications

The system works by positioning the foam structure near its elastic instability point, where it becomes highly effective at dissipating vibrational energy across low, mid, and high frequencies. Remarkably, only two percent volume fill is typically required to achieve significant damping effects. This minimal material requirement allows engineers to combine stiffening, insulation, and vibration damping into a single co-molded component, streamlining both manufacturing and weight optimization for aircraft applications.

4.3. Dual-Mount Compact Mufflers

Aircraft with combustion engines face an additional noise challenge from exhaust systems. Engineers at Orbital Australia developed a dual-mount compact muffler that addresses this issue through clever mechanical design. The system uses two mounting points: one end plate bolts directly to the exhaust port, while the other connects to the crankcase through a preloadable elastomer joint.

Figure 20: Dual-mount aircraft muffler system showing direct exhaust port connection and elastomer joint mounting to crankcase

This dual-mount approach serves multiple purposes beyond simple attachment. The elastomer joint absorbs thermal expansion as the exhaust system heats up during operation, maintaining a proper seal without creating stress concentrations that could lead to cracking. The mounting geometry also positions the exhaust outlet at the midpoint of the muffler body, allowing the entire assembly to sit flush against the fuselage. This integration eliminates the drag penalty that would come from a protruding exhaust pipe, helping maintain the aircraft's aerodynamic efficiency while reducing engine noise.

4.4. Single-Chamber Multi-Passage Mufflers

For even more compact installations, Orbital Australia developed a single-chamber multi-passage muffler that creates a serpentine pathway through a single gas volume. The design works by carving a winding route that forces exhaust gases to travel a much longer distance than the muffler's physical dimensions would suggest.

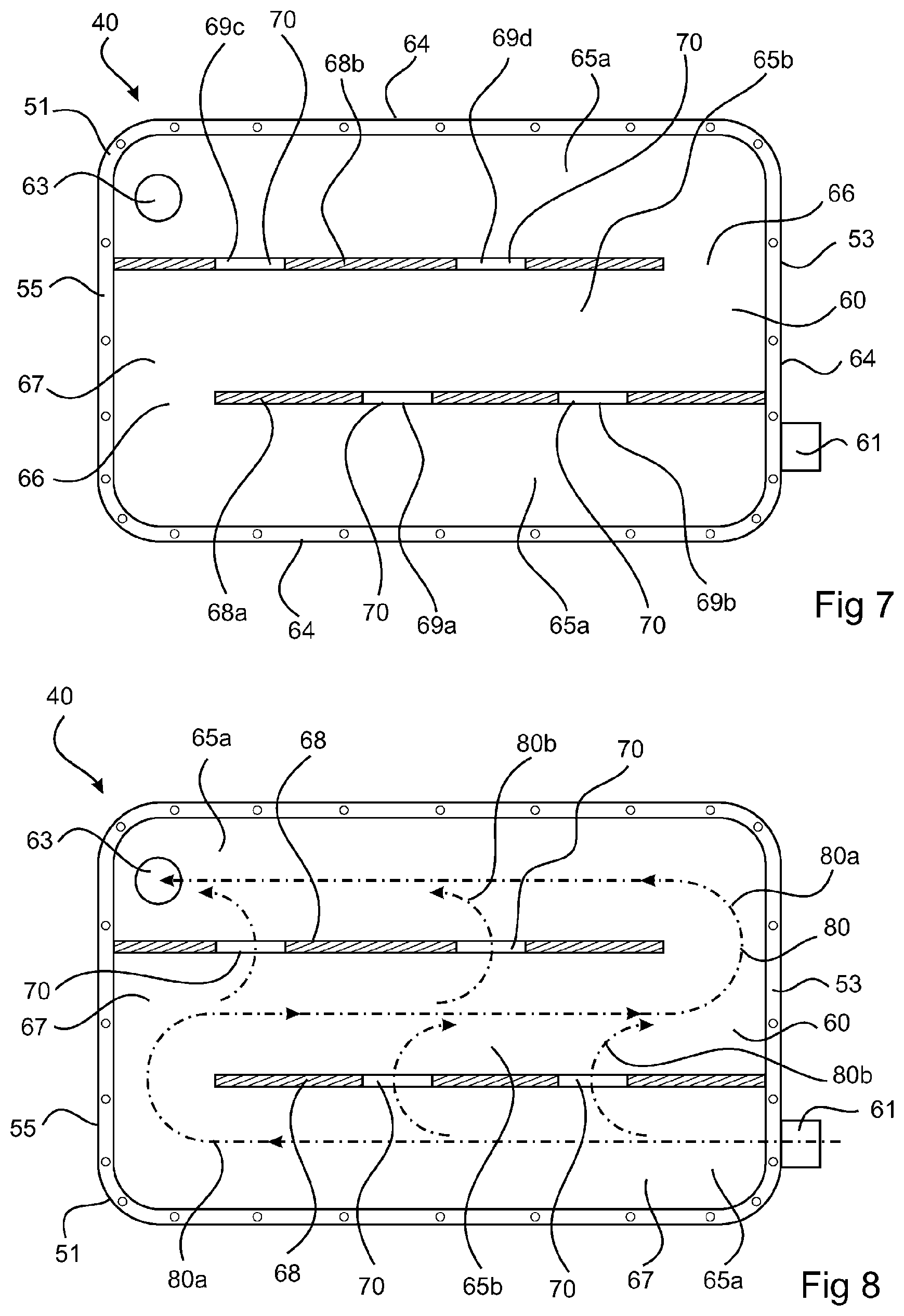

Figure 21: Cross-sectional view of a single-chamber multi-passage muffler showing the serpentine pathway and staggered bypass holes for acoustic attenuation.

Staggered bypass holes throughout the chamber serve multiple functions: they equalize pressure to prevent harmful back-pressure spikes that could reduce engine performance, while simultaneously extending the effective acoustic path length. This extended pathway gives sound waves more opportunities to dissipate their energy before exiting the system. The result is a high attenuation-to-mass ratio that makes the muffler particularly attractive for weight-sensitive aircraft applications. The entire assembly can be manufactured from simple stamped metal plates or produced using additive manufacturing techniques, making it both cost-effective and adaptable to different engine configurations.

Even with all these passive noise reduction techniques—optimized blade geometry, synchronized rotors, acoustic shrouds, and structural damping—some residual sound will always remain. This leftover acoustic energy typically consists of specific frequency components that mechanical solutions cannot fully eliminate. Active noise control systems target these remaining frequencies by generating precisely timed anti-sound waves that cancel out the unwanted noise through destructive interference.


5. Active Anti-Noise Emission

5.1. Predictive Fleet-Wide Sound Modeling

Amazon engineers developed a fleet-wide ML sound-modelling framework that takes a predictive approach to active noise cancellation. The system continuously correlates data from onboard microphones and vibration sensors with real-time flight parameters including aircraft position, speed, and atmospheric conditions.

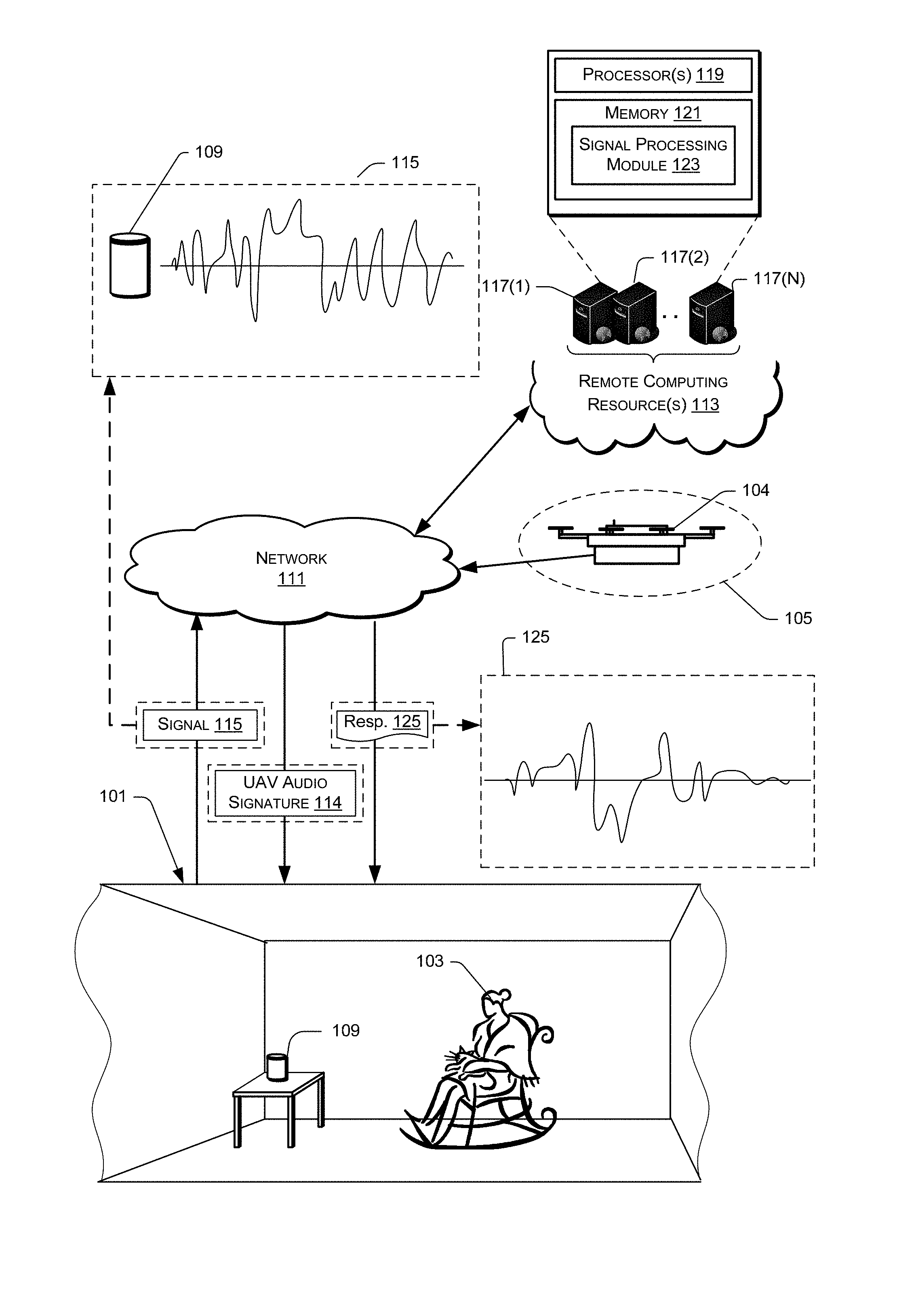

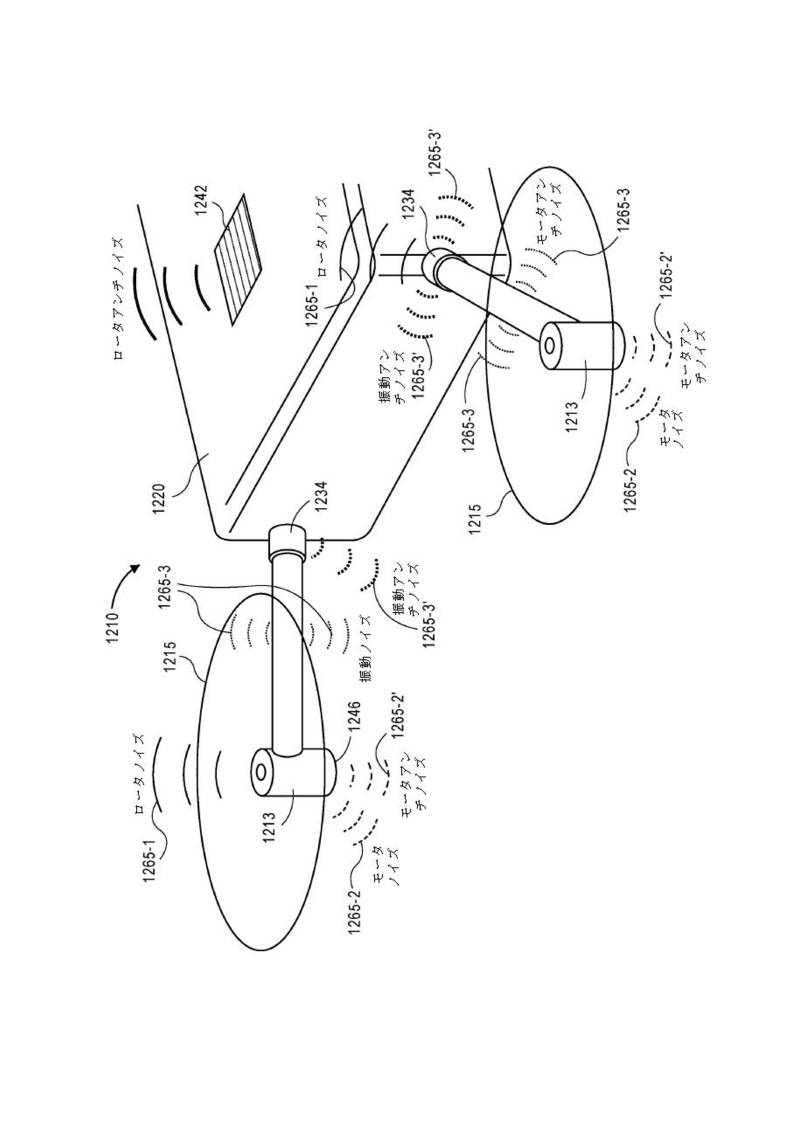

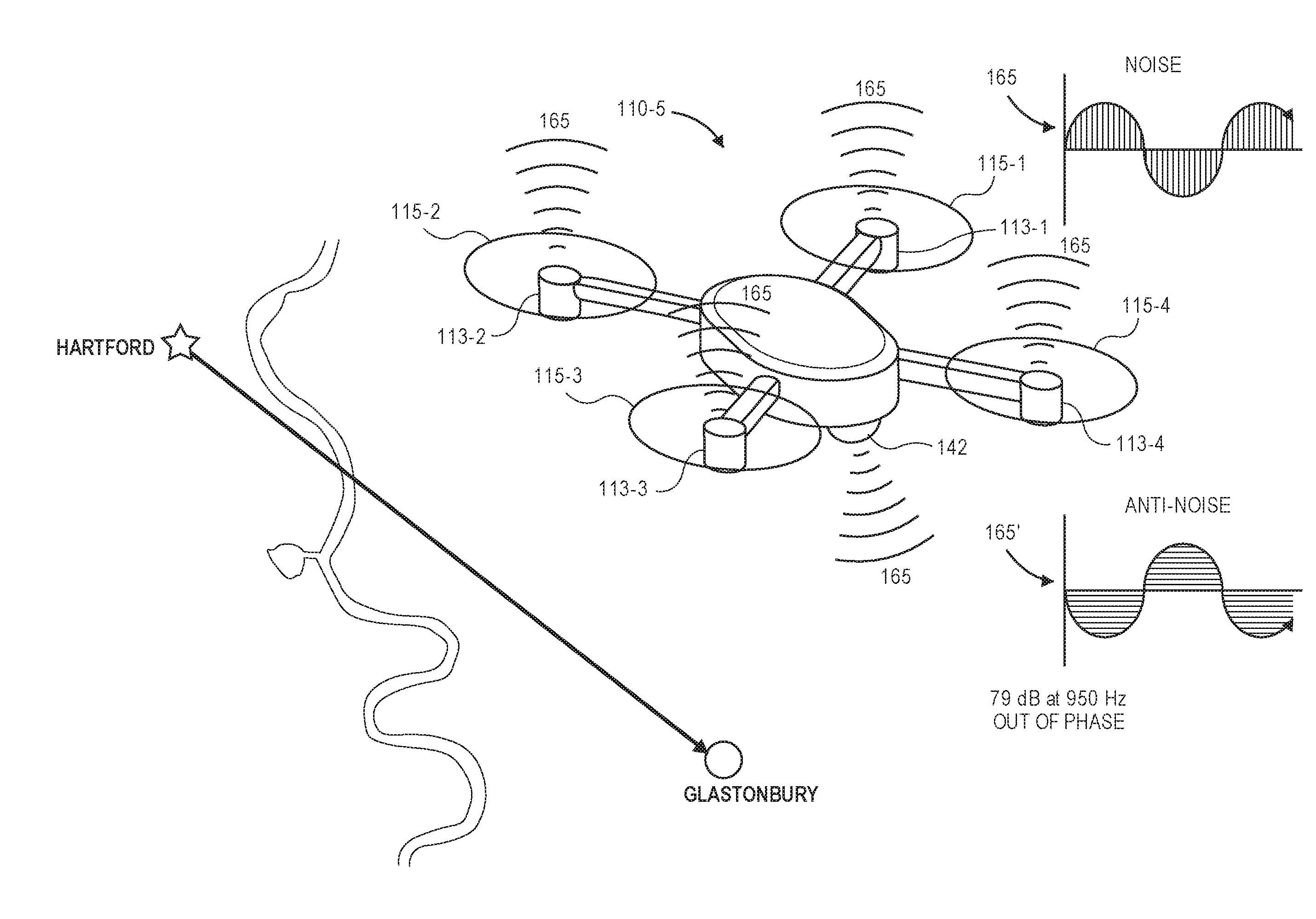

Figure 22: Drone with predictive anti-noise system using machine learning to generate counteracting sound waves for noise cancellation

This predictive capability allows the drone to anticipate what acoustic signature will reach ground observers before the sound waves are actually generated. By starting the cancellation process ahead of time, the system sidesteps the latency issues that plague traditional feedback-based noise control methods. The machine learning algorithms build increasingly accurate acoustic models as they gather data across Amazon's entire drone fleet, learning how different flight conditions affect sound propagation and using this knowledge to pre-compute the optimal anti-noise signals for each mission.

5.2. Hybrid Prediction and Real-Time Correction

While predictions improve performance, real-time corrections are essential when conditions change unexpectedly due to shifting winds or aging components. Amazon addressed this challenge by developing a confidence-weighted superposition of predicted and in-motion anti-noise system that combines pre-computed signals with live sensor feedback.

Figure 23: Drone with speaker arrays and acoustic sensors for active noise cancellation system

The system works by blending two different anti-noise approaches based on their reliability in each situation. When flight conditions match the predicted parameters, the system relies heavily on the pre-computed cancellation signals that have proven effective across the drone fleet. However, when sensors detect deviations from the expected acoustic signature, the system automatically shifts toward real-time corrections derived from onboard microphones and accelerometers.

This hybrid approach allows a lightweight speaker array to tackle both predictable tonal harmonics and unexpected broadband noise bursts simultaneously. The confidence weighting ensures optimal performance across varying flight conditions while maintaining the computational efficiency needed for real-time operation on resource-constrained drone hardware.

5.3. Propulsion-Integrated Anti-Noise Generation

Some designers eliminate speakers entirely by using the propulsion system itself to generate anti-noise. Amazon developed a propulsion-modulated anti-noise emission approach that modulates the upper propeller in a coaxial pair so its pressure field actively cancels noise from the lower disc. This technique offers significant advantages over traditional speaker-based systems: it saves weight by eliminating dedicated audio hardware, and it aligns the acoustic cancellation source directly with the noise origin. The result is more effective destructive interference since both the unwanted sound and its cancellation signal emanate from the same physical location on the aircraft.

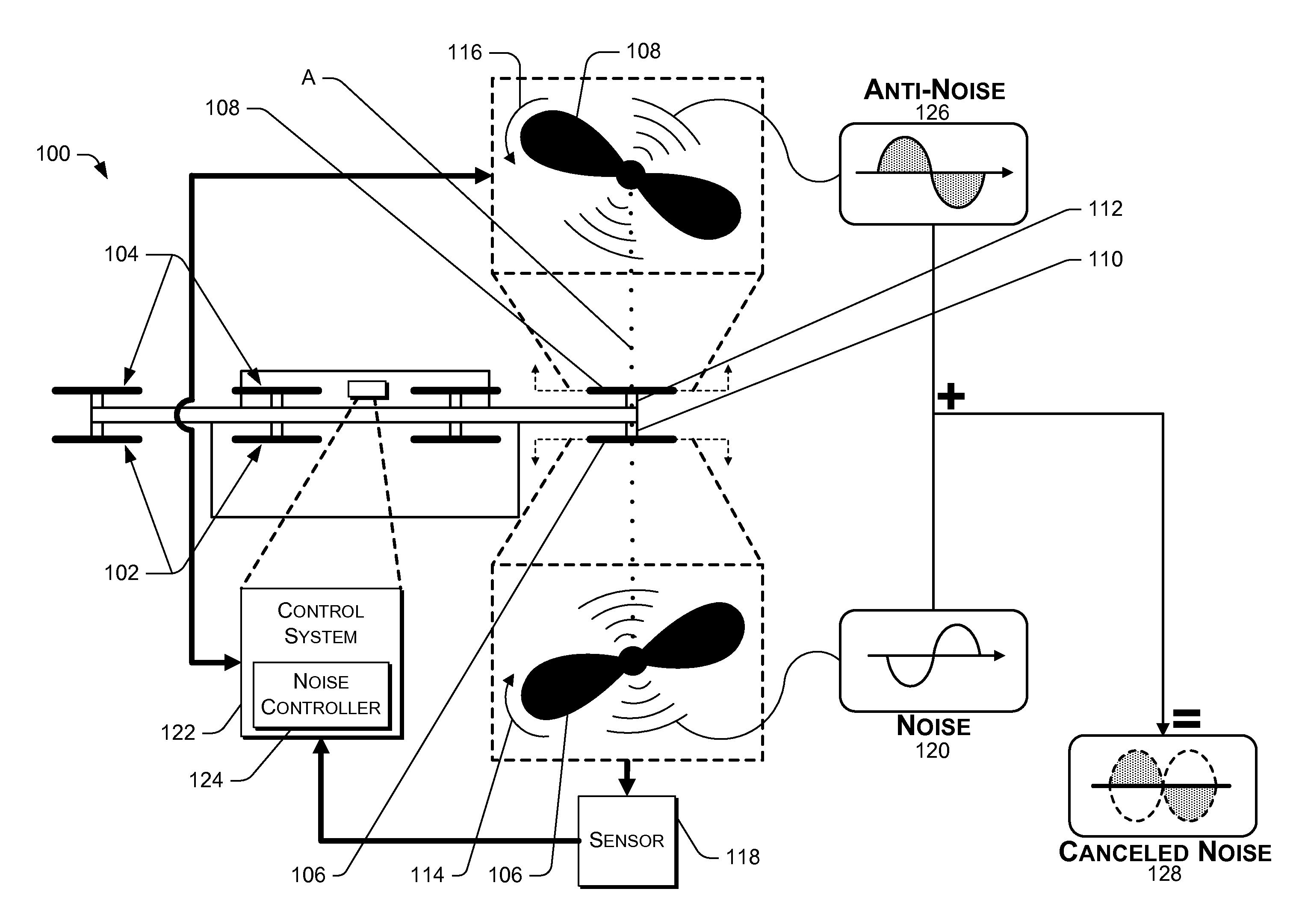

Figure 24: Coaxial propeller system with active noise cancellation using propulsion-modulated anti-noise emission

5.4. Ground-Based Residential Noise Cancellation

Amazon took a different approach by developing ground-based noise cancellation systems. Their targeted residential noise canceller works by detecting the acoustic signature of an approaching delivery drone and automatically activating a counter-signal from a device mounted on the recipient's porch or balcony.

Figure 25: Ground-based noise cancellation device detecting drone audio signature and generating counter-signal for localized quiet zone during delivery

The system uses directional microphones to identify the characteristic frequency patterns of rotor noise while filtering out other environmental sounds like traffic, music, or conversation. Once a drone signature is detected, the device generates precisely timed anti-sound waves that create a localized quiet zone around the delivery location. The cancellation is selective—it targets only the droning frequencies while preserving normal speech and background music, allowing residents to continue their activities without interruption during package deliveries.

5.5. Virtual Microphone Array Targeting

Engineers at ADD developed a more flexible approach using virtual microphone array targeting that allows operators to define quiet zones at any ground location. Instead of relying on physical microphones, the system uses mathematical models to predict sound pressure levels at specific coordinates below the aircraft. The onboard speakers then generate anti-noise signals calculated to create destructive interference at those predicted locations. As the aircraft moves along its flight path, the software continuously updates these calculations to maintain the cancellation bubble over the designated quiet zone, whether that's a hospital courtyard, school playground, or residential area.

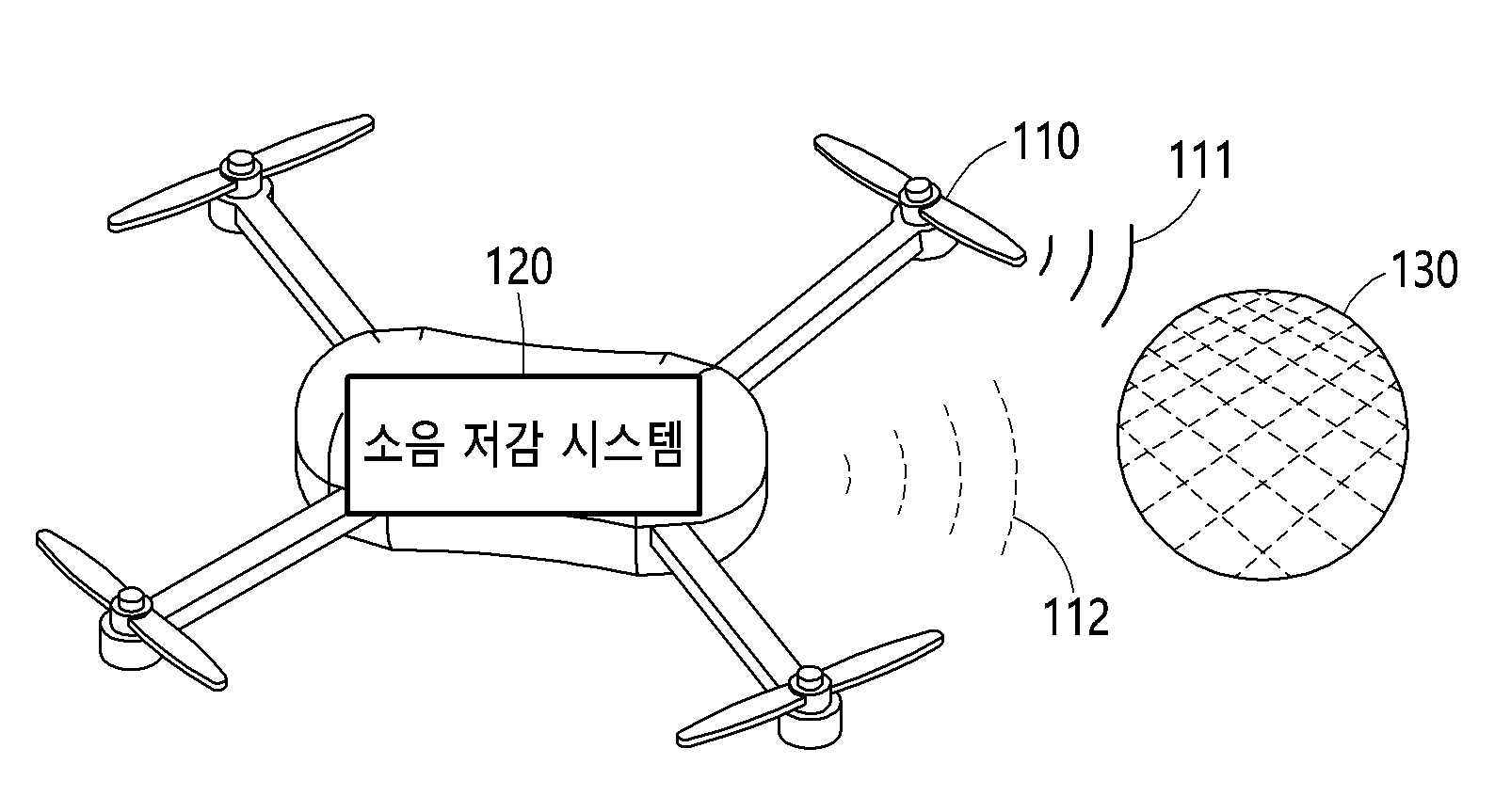

Figure 26: Drone with noise suppression system creating quiet zones on the ground using virtual microphone array technology

While active noise cancellation benefits communities by reducing ground-level disturbance, aircraft operators face a different acoustic challenge: the propeller noise that interferes with their own onboard sensors and communication systems. This self-generated interference can degrade the quality of audio recordings, disrupt radio communications, and introduce unwanted vibrations into sensitive measurement equipment. The next step in comprehensive noise management involves processing these signals digitally to extract clean data from noisy environments.


6. On-Board Signal Processing for Audio and Sensors

6.1. Dual-Microphone Adaptive Noise Cancellation

Engineers at DJI (the leading Chinese drone maker across consumer, enterprise, and agriculture segments) developed a dual-microphone adaptive RLS cancellation system to address this interference challenge. The approach uses two types of microphones: reference microphones positioned next to each motor to capture the interference directly, and signal microphones aimed toward the area being recorded.

Figure 27: DJI drone with quadcopter design showing motor and propeller configuration where adaptive noise cancellation would be implemented

The system works by using a recursive least-squares filter to analyze the motor noise in real time. This filter learns the characteristics of the interference and mathematically subtracts it from the main recording before it reaches the final audio output. The adaptive nature of the algorithm means it continuously updates its understanding of the noise patterns as flight conditions change.

Enhanced Acoustic Suppression

For situations requiring even cleaner audio, the system can be enhanced with an optional anti-phase speaker array. These speakers generate sound waves that cancel some of the motor noise acoustically before it even reaches the microphones. This upstream suppression reduces the computational load on the digital filters while improving overall audio quality for applications like aerial cinematography or surveillance missions.

6.2. Telemetry-Assisted Predictive Noise Cancellation

Engineers at Skydio (a U.S. drone company focused on autonomous sUAS for public safety, inspection, and defense) found that incorporating real-time flight data can significantly improve noise cancellation performance. Their telemetry-assisted noise cancellation subsystem continuously monitors motor RPM, gimbal position, and arm-fold status to predict the expected acoustic signature before it occurs.

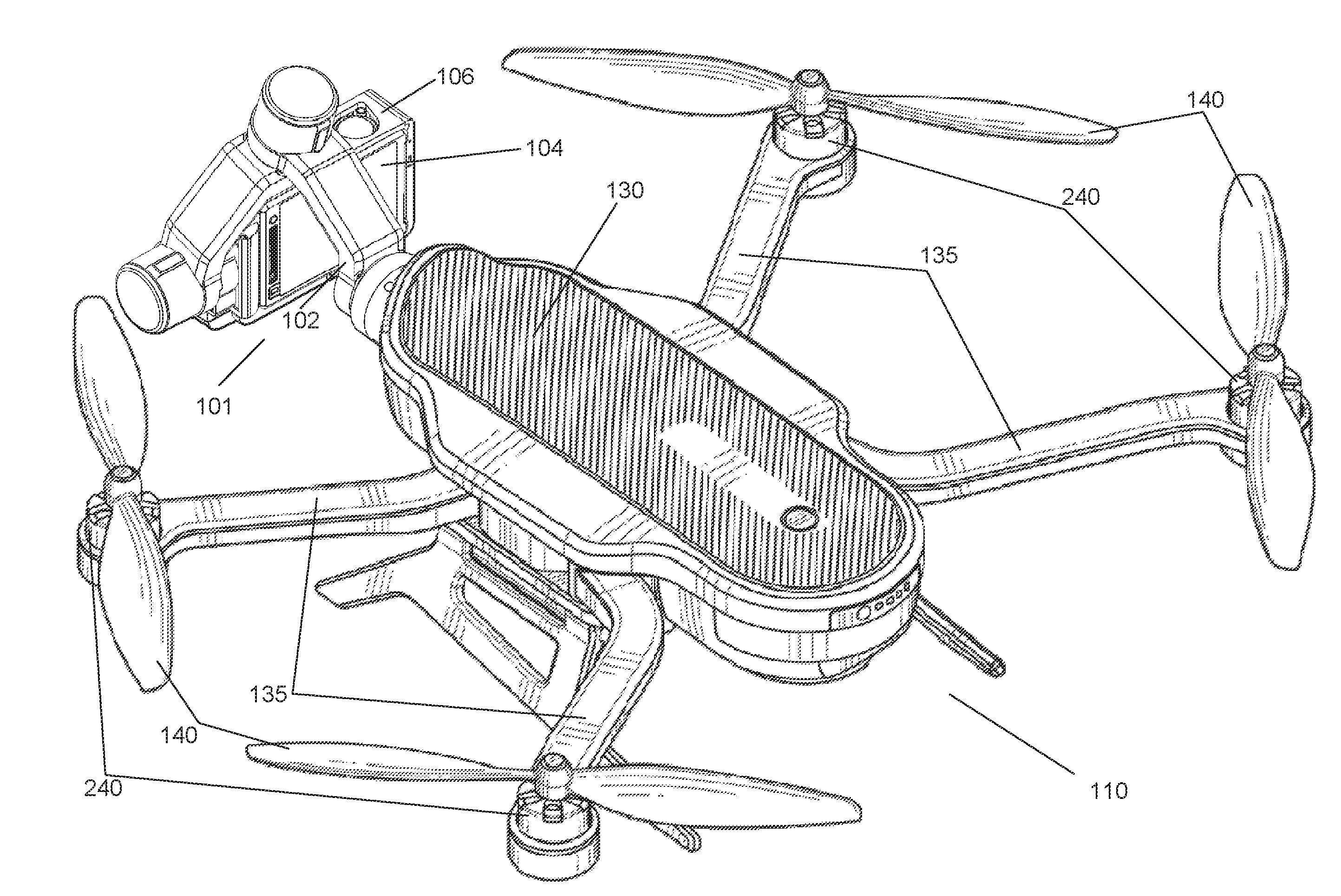

Figure 28: Detailed technical diagram of a drone showing the central body, propellers, gimbal, and camera system that would generate the noise signatures mentioned in Skydio's telemetry-assisted noise cancellation technology.

This predictive approach works by using the telemetry data to anticipate how the noise characteristics will change as the aircraft maneuvers. When a motor speeds up or the gimbal rotates, the system can immediately update its filter coefficients to match the new acoustic conditions. This real-time adaptation produces cleaner audio recordings compared to systems that only react to noise after it has already been captured. The processing can be implemented using FPGA, ASIC, or firmware solutions depending on the specific computational requirements and power constraints of the aircraft platform.

6.3. Speech Isolation in High-Noise Environments

When UAVs attempt to capture human speech during flight, the voices are typically much quieter than the rotor noise that dominates the acoustic environment. To address this challenge, researchers at Georgia Tech (a public research university in Atlanta known for top-ranked engineering and computing programs) developed an aerial acoustic acquisition system specifically designed for these demanding conditions.

Figure 29: UAV with strategic microphone placement showing forward and rearward-facing acoustic sensors for speech isolation from rotor noise

The system uses a strategic microphone arrangement: forward-facing microphones capture the target speech signals, while rearward-facing reference microphones monitor the rotor noise directly. An adaptive filter processes both inputs to isolate the faint voice signals from the overwhelming propeller sounds. The entire system is engineered to meet the strict size, weight, and power constraints typical of UAV payloads, making it practical for real-world deployment where every gram and watt matters.

6.4. Adaptive Baseline Filtering for Real-Time Processing

For post-mission applications, engineers developed an onboard noise analyzer with adaptive baseline filtering that streamlines the audio cleanup process. The system works in two phases: first, it analyzes the aircraft's unique acoustic signature during a brief calibration period, learning the specific frequency patterns and harmonics produced by that particular drone configuration. Once this baseline is established, the system continuously monitors incoming audio streams and automatically removes the learned drone signature in real time, delivering clean audio directly to storage or live video feeds without requiring any post-processing work.

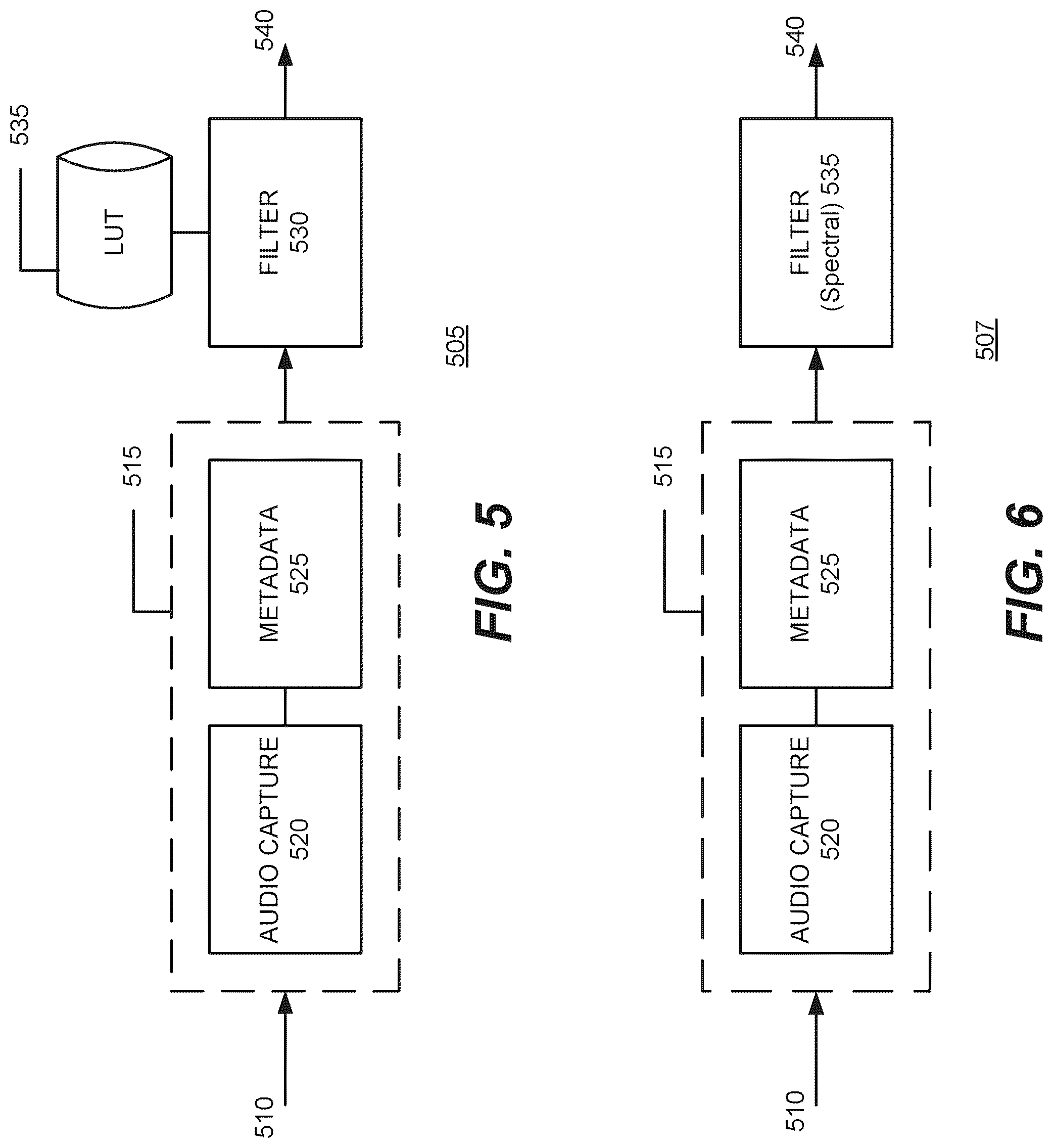

Figure 30: Audio processing system with filter, metadata collection, and audio capture components for onboard noise analysis

Even the most sophisticated onboard signal processing has its limits when the aircraft's flight path sends sound waves directly into quiet neighborhoods. This is where mission planning becomes crucial—it ties together all the noise reduction technologies by ensuring they're deployed along routes that minimize community impact from the start.


7. Noise-Aware Flight Path and Mission Planning

7.1. Context-Aware Route Selection System

Engineers at Boeing (a major U.S. aerospace company producing commercial airliners and defense/space systems) developed a context-aware flight-planning system that addresses noise concerns through intelligent route selection. The system combines multiple data sources—including GIS terrain maps, land-use databases, current weather conditions, and acoustic propagation models—to predict how much noise will actually reach people on the ground along different possible flight paths.

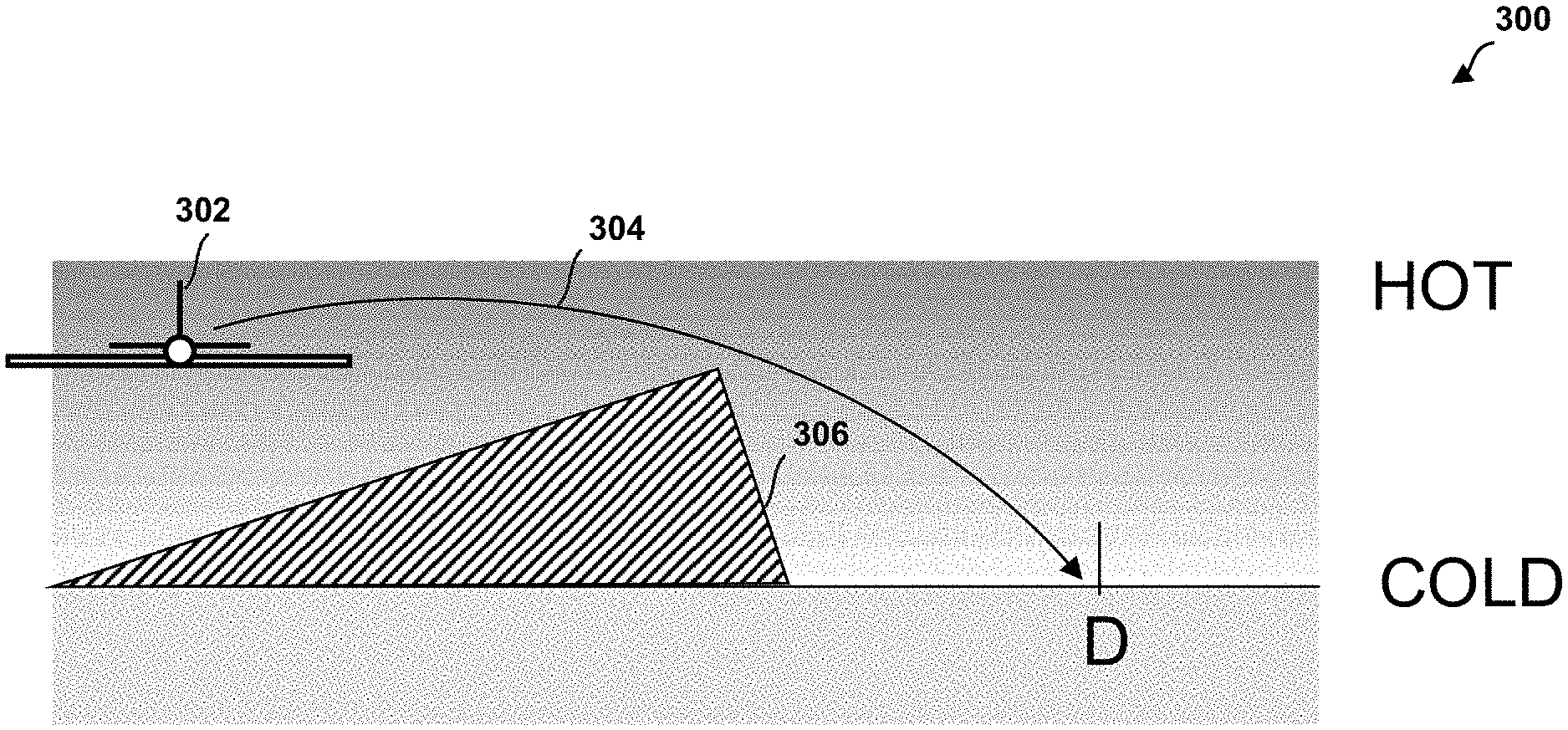

Figure 31: Cross-sectional diagram showing acoustic noise propagation from an aerial vehicle to ground surface locations through different atmospheric layers.

Real-Time Route Optimization

The planning process works by evaluating multiple route options and scoring each one based on its predicted community impact. The flight controller then automatically selects and uploads the path that produces the lowest acoustic footprint. When conditions change during flight—such as shifting winds that alter sound propagation—the system can recalculate and adjust the route in real time.

This approach provides auditable compliance with noise regulations without requiring any modifications to the aircraft hardware itself, making it applicable across existing drone fleets.

7.2. Scalable Multi-Aircraft Operations

For large-scale operations involving multiple aircraft, Boeing extended this approach using graph-search algorithms. Their grid-based Viterbi noise-optimised path generator creates a three-dimensional grid of the airspace and fills each cell with predicted sound pressure levels calculated from either physics-based models or machine learning algorithms.

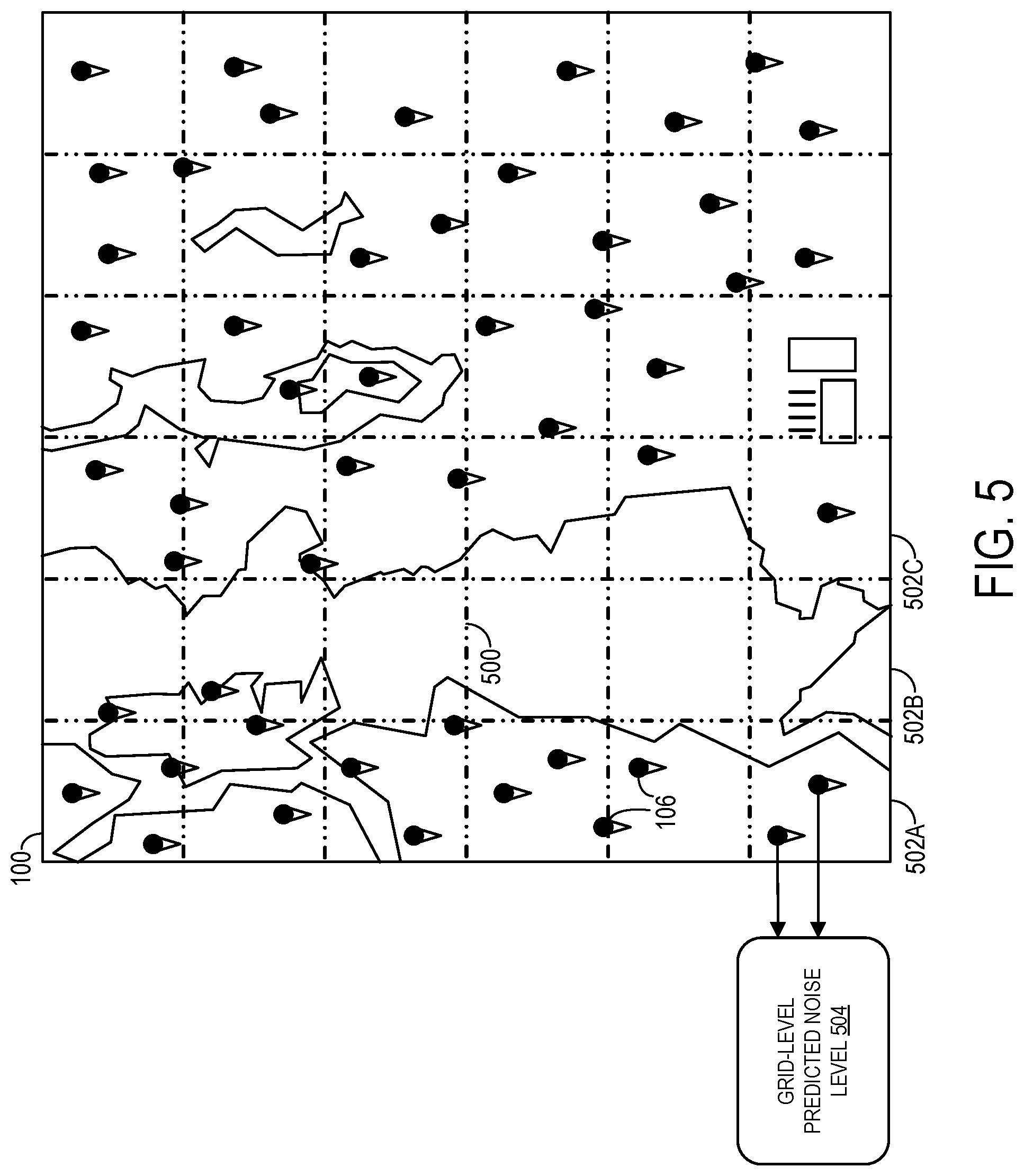

Figure 32: Grid-based airspace divided into cells for acoustic mapping and flight path optimization using graph-search algorithms.

The system then searches through this acoustic map to find flight paths that minimize noise impact while still meeting operational requirements like weather avoidance, airspace restrictions, and delivery schedules. This scalable approach allows airline-level operators to balance noise reduction against other priorities such as fuel consumption or emissions without requiring custom software development for each new scenario.
