Corrosion Resistant Paints for Automotive

Corrosion inhibitor for metal coatings that prevents paint falling off and extends the corrosion protection period. The inhibitor is a tertiary amine compound with a hydroxyethyl group. It is prepared by reacting an isocyanate with a primary amine and a secondary amine in the presence of water. The reaction forms a tertiary amine with a hydroxyethyl group as an intermediate, which is then used as the corrosion inhibitor. The inhibitor is added to the coating formulation to prevent metal corrosion when the coating is applied.

Source

Mechanochemical synthesis of a composite inhibitory pigment for corrosion protection of metal structures in corrosive environments. The pigment is formed through a solid-state reaction between synthetic zeolite NaA and zinc dihydrogen phosphate in a planetary ball mill, resulting in the formation of a nanostructured zinc phosphate phase on the zeolite surface. This composite pigment, with a 1:1 zeolite to zinc dihydrogen phosphate ratio, exhibits enhanced solubility in corrosive environments compared to traditional zinc phosphate pigments, while maintaining sufficient inhibitory properties to prevent underfilm corrosion. The composite is then combined with epoxy resin and other additives to create a protective coating system.

Source

Corrosion inhibitors for ferrous metals that combine organic cation exchange resins with phosphate-based compounds. The inhibitors release ions in response to corrosive conditions, while the phosphate compounds form a protective layer. The combination provides enhanced corrosion protection compared to traditional chromate-based systems. The inhibitors can be applied to metal substrates or coatings, and the phosphate-based compounds are environmentally friendly. The system offers improved performance and environmental sustainability over conventional chromate-based coatings.

Source

Aqueous coating composition for metal substrates that combines excellent corrosion resistance, adhesion, and water resistance. The composition comprises acrylic resin particles with specific requirements for acid value and solubility parameter value, and a rust preventive agent containing aminosilane, azole compound, and fatty acids. The particles have a specific average particle diameter of 50 nm or more, ensuring good dispersion stability, while the rust preventive agent provides enhanced corrosion protection. The composition is suitable for applications requiring high-performance coatings on metal substrates.

Source

Coating composition containing a corrosion inhibitor that prevents or reduces corrosion of metal substrates, particularly in environments with specific environmental conditions. The composition comprises a film-forming resin and a corrosion inhibitor containing an inorganic alkali metal and/or alkaline earth metal compound, ketone and/or aldehyde groups, and -OR groups. The corrosion inhibitor in the composition comprises an inorganic alkali metal and/or alkaline earth metal compound, ketone and/or aldehyde groups, and -OR groups, which form a compound with aromatic rings having at least one side group represented by each R1 independently selected from hydrogen, an alkyl group, and an aryl group.

Source

Anti-corrosion agent for protecting vehicle components through controlled kinetics and heat resistance. The agent features a solid state at the end of radiation treatment, eliminating the need for post-processing cleaning and finishing. This agent can be applied to components like engine blocks, transmission mounts, and wheel hubs, providing comprehensive corrosion protection through controlled crosslinking and drying kinetics. The agent's solid state ensures uniform distribution and penetration, while its controlled reaction kinetics enables precise control over the corrosion protection process.

Source

Organic corrosion inhibitors comprising onium cation groups and aromatic carboxylate counter-anions, which can be used as a corrosion inhibitor for various substrates. The inhibitors form ionic compounds that provide effective corrosion protection through various mechanisms including barrier protection, sacrificial protection, and corrosion inhibition. The inhibitors can be formulated as curable coatings or as a composition containing onium cation groups and aromatic carboxylate counter-anions, which can be used as a corrosion inhibitor for various substrates.

Source

A synergistic metal polycarboxylate combination for enhanced corrosion protection. The composition comprises a blend of metal polycarboxylates, specifically designed to provide superior corrosion resistance compared to individual compounds. The synergistic blend combines metal salts with varying cations to inhibit galvanic corrosion on metal substrates, particularly effective for multiple metals and accelerated corrosion tests. The composition can be applied to coatings or binders to protect metal surfaces while maintaining adhesion.

Source

A coating for auto parts that provides better corrosion resistance and environmental friendliness compared to traditional solvent-based coatings. The coating contains a specific composition of acrylic resins, thermosetting acrylic resins, 2-methacrylamide, molybdenum disulfide, polytetrafluoroethylene, silica, zinc powder, anti-rust pigments, hardeners, surfactants, leveling agents, and defoamers. The coating aims to replace solvent-based coatings for auto parts like chassis, brackets, and wheels by reducing VOCs, improving corrosion resistance, and avoiding pollution from waste solvents and water treatment.

Source

Two-pack epoxy paints with improved corrosion resistance, particularly for metal substrates like steel, that achieve enhanced protection through the incorporation of zinc salts. The paints contain a zinc salt component that enhances the coating's anti-corrosion properties, while maintaining its impact resistance and weldability. The zinc salts are incorporated during the epoxy resin and hardener formulation, ensuring optimal performance in both corrosion protection and mechanical properties.

Source

An anticorrosive coating for automotive parts comprising: 15-25 parts by mass of low T2 propionate resin, 2-3 parts by mass of pigments, 10-15 parts by mass of low-heavy metal zinc phosphate, 4-6 parts by mass filler, 0.5-1 parts by mass dispersant, 0.1-0.5 parts by mass defoamer, 35-40 parts by mass 1/2s nitrocellulose liquid, 12-16 parts by mass 30s nitrocellulose liquid, 1-3 parts by mass of functional auxiliary and 2-4 parts by mass of mixed solvent.

Source

A corrosion-resistant, sprayable coating for metal surfaces that inhibits corrosion while maintaining excellent sagging properties. The coating comprises a non-toxic, environmentally friendly pigment with a rheological additive that enhances its anti-sagging performance. The additive improves the coating's flowability and stability across a broad temperature range, enabling effective application on complex metal substrates. The coating exhibits superior corrosion protection properties compared to conventional zinc-based systems while meeting stringent safety and environmental standards.

Source

Cation exchange pigment-based coatings for protecting metal substrates from corrosion. The coatings contain a cation exchange pigment that prevents anions from passing through the layer, thereby preventing metal oxide formation. The pigment can be incorporated into a topcoat layer, and may be combined with primer layers or interlayers. The coatings can be formulated with various binder materials and additives to achieve desired properties.

Source

Anti-corrosion and anti-rust paint for automobiles that addresses the challenges of traditional automotive coatings. The paint combines a rust-inhibiting emulsion with mica powder, driers, zinc oxide, wollastonite powder, polyvinyl chloride resin, zeolite powder, and acrylonitrile to create a durable and long-lasting protective barrier. The formulation balances performance with environmental considerations, providing superior corrosion protection while maintaining paint adhesion and drying characteristics.

Source

Anti-corrosion car paint with enhanced durability and environmental performance. The paint combines a cobalt catalyst with a hydroxy acrylic resin, driers, and specialized additives to improve corrosion resistance while maintaining aesthetic properties. The formulation incorporates advanced materials like titanium dioxide, short oil alkyd, and organic soil to address environmental concerns. The paint system provides superior corrosion protection, durability, and resistance to environmental degradation.

Source

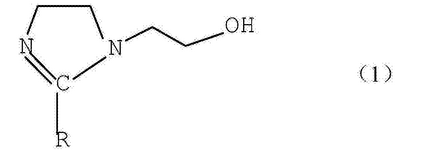

A composite corrosion inhibitor for metal surfaces that combines the benefits of organic corrosion inhibitors with improved wetting, dispersibility, and adhesion properties. The inhibitor comprises hydroxyethyl imidazoline (30-60%) and acetylene alcohol (3-20%) in a synergistic complex. The imidazoline component enhances film formation properties, while the acetylene alcohol component improves wetting and dispersion characteristics. The inhibitor formulation provides enhanced corrosion protection through both chemical and mechanical mechanisms, enabling effective protection of metal surfaces in aqueous environments.

Source

Aqueous coating composition for metal surfaces that provides both rapid and long-term corrosion protection. The composition comprises a corrosion inhibitor component comprising a first complexing agent containing a trialkanolamine and a second complexing agent comprising a carboxylic acid. The composition is prepared by mixing the complexing agents with water, forming a corrosion inhibitor component, and adding the corrosion inhibitor component to the aqueous coating composition. The resulting coating composition provides early rapid rust protection and long-term corrosion resistance, with improved performance even after drying.

Source

A novel anticorrosive coating for automotive plastics that enhances durability and resistance through a combination of advanced materials. The coating comprises a bisphenol F type liquid epoxy resin, calcium chloride, quartz, butyl acetate, cellulose ether, and a fluorinated polymer. The coating is prepared through a multi-step process involving precise temperature control, precise mixing, and controlled addition of the fluorinated polymer. This results in a transparent, colorless liquid that forms a durable, corrosion-resistant film on plastics.

Source

A durable powder coating for automobiles that prevents corrosion through enhanced surface protection. The coating comprises a powder composition comprising a corrosion-resistant metal oxide, a binder, and a pigment. The metal oxide component provides the primary corrosion protection, while the binder and pigment enhance the powder's durability and color retention. The coating is formulated to maintain its protective properties over time, even in harsh environmental conditions, making it suitable for automotive applications.

Source

Anti-corrosion coating and preparation method for automotive storage boxes that enhances durability and protection against environmental degradation. The coating and preparation process involves a specialized anti-corrosion paint formulation and application technique that incorporates advanced materials and technologies to provide superior protection against moisture, humidity, and environmental factors. The coating provides comprehensive corrosion protection, while the preparation method ensures uniform and efficient application. The coating and preparation system is particularly effective for automotive storage boxes, where environmental conditions can be extreme and storage conditions are critical.

Source
