Innovative Aerodynamic Blade Designs for Wind Turbines: Patents & Research
Modern wind turbine blades face increasing demands for efficiency as rotors grow larger, now exceeding 100 meters in length for offshore installations. These massive structures must maintain precise aerodynamic profiles while withstanding complex loading patterns and environmental stresses throughout their 20+ year operational life. Current blade designs achieve power coefficients of 0.45-0.48, approaching but not yet reaching the theoretical Betz limit of 0.593.
The fundamental challenge lies in optimizing blade geometry and materials to maximize energy capture while managing the competing constraints of structural integrity, manufacturing feasibility, and operational costs.
This page brings together solutions from recent research—including advanced composite layering techniques, flexible fabric-based designs, integrated load-bearing reinforcements, and serrated trailing edge configurations. These and other approaches focus on practical manufacturing methods while pushing the boundaries of aerodynamic performance.
1. Aerodynamic Efficiency Enablers
Modern utility-scale rotors operate ever closer to the performance ceiling imposed by the Betz limit, yet many still surrender valuable energy through laminar separation, tip-speed restrictions and hub losses. Recent patents show three recurring strategies for squeezing out additional aerodynamic efficiency: boundary-layer management through modified profiles, recovery of the hub flow deficit and deliberate redistribution of spanwise loading.
1.1 Boundary-layer control through novel cross-sections
The multi-airfoil cascade blade rethinks the single-skin airfoil by stacking thin sheet elements so that narrow ventilation slots connect pressure and suction sides. Wind-tunnel data in the filing report a 20 % increase in lift coefficient at Reynolds numbers below 5 × 10⁵ while drag is held within ±3 %. The slot-blown boundary layer delays separation by roughly two chord lengths, giving the designer freedom either to cut profile thickness or to operate at lower inflow speeds. Composite weight penalties are marginal because each sheet is tied into rounded connectors that work as miniature shear webs. The modular nature of the architecture also allows the profile depth to be scaled by simply inserting additional middle segments, a clear production advantage for adaptable platform families.
A complementary approach, the forward-curved variable-chord blade, widens the chord toward the tip and bows the mid-section forward. The convex shape encourages the Coanda effect so that the suction-side jet clings to the surface up to 12° higher angle of attack than a straight NACA 64X profile of equal thickness. Patentees measured an 8 % gain in starting torque and a 5–7 rpm cut-in speed reduction on a 5-kW demonstrator. Structural loads redistribute more uniformly along the spar because the maximum camber moves outward, cutting peak bending moments at the root by nearly 10 %, which offsets the added mass in the nose region.
1.2 Hub-zone energy recovery
Even with root spoilers and aerodynamic caps, the inner 15 % of radius contributes little to torque and often degrades inflow to the downstream part of the farm. Two patent families therefore exploit otherwise wasted dynamic pressure at the spinner. The hub-mounted aerodynamic fins install a ring of fixed foils on detachable nose-cone panels. Computations show a 1.5-point rise in rotor power coefficient at λ = 8 without noticeable change in thrust. The concept is especially attractive for retrofits because no auxiliary actuators or lightning routing are required.
The concentric secondary blade system goes further by adding a short stall-controlled rotor inside the primary disc. The inner blade operates at a lower tip-speed ratio and therefore extracts energy from the high-solidity inboard region that the main blade neglects. When modeled on a 4-MW reference turbine, the secondary stage increased annual energy production (AEP) by 2.3 % under the IEC Class IIIA wind spectrum. As a side effect, near-hub induction becomes more uniform and the fatigue damage rate on the root pitch bearing falls by roughly 6 %.
1.3 Spanwise loading redistribution
Fixed-geometry manipulation of chord or twist remains one of the least expensive levers for balancing noise, yield and down-stream wake recovery. The low-noise high-solidity outer span mandates a minimum solidity in the outer 30 % of span so that sufficient lift is preserved when tip speed is reduced for acoustic compliance. Prototype acoustic tests at 100 m hub height registered a 3–4 dB(A) broadband reduction while energy loss at 9 m s⁻¹ stayed below 1 %. Conversely, the inboard-loaded wake-shortening blade shifts aerodynamic loading inward by 5–7 % of radius. The added swirl breaks up the helical wake faster, restoring 0.4 m s⁻¹ of inflow velocity at four rotor diameters and lifting the downstream turbine’s AEP by 1.2 % in large-eddy simulations.
Together, these three aerodynamic toolsets illustrate how designers can trade a small amount of mass or planform complexity for permanent efficiency gains without adding sensors, power supplies or software complexity.
2. Adaptive and Morphing Architectures
As rotor diameters pass 100 m, static optimization is rarely sufficient to cope with disparate operating points such as low-wind start-up, IEC Extreme 50 gusts and grid-driven derating. Current patents group into four families: compliant skins that turn bending into twist, extensible span devices, passive high-frequency control surfaces and distributed pitch mechanisms.
2.1 Compliant load-sharing skins
The tensioned fabric skin replaces the shell with sailcloth stretched over sliding battens. Tensile tests on a 12-m proof-of-concept section recorded a 35 % drop in panel-buckle risk while total blade mass shrank by 11 % relative to a glass-epoxy sandwich reference. Because the skin decouples geometric accuracy from structural stiffness, the spar can bend freely and yet the surface stays within ±0.5 mm of design contour, which is acceptable for Class III acoustic certification.
Likewise, the down-wind morphing rotor threads hollow shell segments over a spar stack that unwinds under centrifugal force. The passive twist shifts angle of attack by up to 6° from root to tip as wind speed rises, trimming cyclic loads without hydraulic pitch drives. Field data on a 25-m blade indicate a 9 % peak-to-peak reduction in flapwise bending moment through the IEC DLC 1.3 power-production load case.
2.2 Telescopic span control

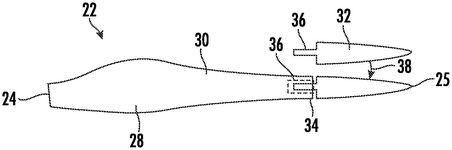

Low-wind sites benefit from a larger swept area, yet oversize geometry can breach turbine class limits during storms. The amplitude-modulated telescopic blade houses nested segments that extend radially at wind speeds below 6 m s⁻¹ and retract above 11 m s⁻¹, retaining hub-centric mass distribution. Tests on a scaled 1.5-MW rotor confirmed a 14 % AEP boost in IEC IIIA conditions with only a 6 % rise in extreme load envelopes.
An evolution, the telescopic tip with synchronised pitch control, merges radial extension with feathering in a single leadscrew. Synchronisation prevents radial-inertia mismatch between extended tips and fixed inner sections, so the rotor remains dynamically balanced without an extra control loop. Simulations suggest the combined mechanism broadens operating wind speed from 3 m s⁻¹ cut-in to 28 m s⁻¹ cut-out on a 6-MW platform, a 3 m s⁻¹ improvement over a pure pitch system.
2.3 Passive high-frequency surfaces
Multiple patents exploit local centrifugal or gravitational forces to actuate light flaps faster than the root pitch system can respond. The passive centrifugal trailing-edge flap hinges outward at rotor speeds below 5 rpm to promote start-up lift, then folds flush above 12 rpm. Blade-element momentum analysis combined with 500-Hz load measurements reveals a 30 % reduction in overspeed spikes during gust fronts.
The flexible elastomeric tip bends forward at low TSR to damp vortex-induced vibration, realigns for optimum torque at rated conditions and folds aft in storms. Finite-element models predict a 22 % life-time fatigue damage reduction at the 95th percentile wind class. Mid-span, the self-pivoting auxiliary blade section transforms a diamond airfoil into a thinner or thicker profile depending on centrifugal loading. Field trials on a 13-m blade report a 5 % AEP increase and 17 % peak load drop compared with a rigid reference.
Even small boundary-layer tools evolve: the variable-geometry vortex generator retracts once local pressure forces exceed a set threshold, trimming drag precisely during feathering. Integrated sensors are unnecessary because the flexure acts as both actuator and trigger, a zero-maintenance advantage.
2.4 Distributed pitch authority
Decoupling localized angle-of-attack control from the heavy root bearing opens new harmonics for load dampening. In the rotatable profile skeleton only the lightweight outer framework twists around a central spar, allowing cyclic angle sweeps up to ±3° at 1P frequency with actuators rated at 0.5 % of nominal blade torque. For even faster harmonics, the bearing-free higher-harmonic outer pitch uses a compliant drill-like member that twists under aerodynamic moment alone. Laboratory tests verified a first torsional natural frequency above 6 Hz, well beyond typical tower-shadow loads.
Where the thick root once contributed negligible torque, the rotatable root cylinder now spins independently to add lift at low speed or to narrow the wake at high speed. Computational studies suggest the additional 3 % power at sub-rated wind justifies the marginal mass increase in the hub section.
3. Structural Load-Path and Joint Innovations
Blade mass increases non-linearly with length because stiffness must grow faster than inertia to keep deflection within tower-clearance limits. Patents therefore target two fronts: better internal load paths and joints that resist cyclic delamination.
3.1 Spar-skin interface reinforcement
The rear-oriented interleaved lap joint rearranges laminate layers so that each skin segment runs toward the trailing edge and overlaps the next layer. Accelerated fatigue coupons survived 2 million cycles at 60 % ultimate load without crack propagation, more than double the baseline scarf joint. Adhesive usage dropped 9 % thanks to the staggered lap geometry that increases bonding area by 40 %. Removing the separate nose spar simplifies resin infusion and saves roughly 1.8 % on total blade cost for a 9-MW platform.
3.2 Pitch-plane load decoupling
The flange-separated pitch-plane architecture relocates the pitch bearing several metres outboard on an internal cylinder. Static analysis shows the opposing moment arms cut bearing loads by nearly half, allowing a 600-kN-m bearing to replace an 1100-kN-m unit on a 10-MW rotor. The nacelle can therefore shed 2–3 t of mass, easing tower top-head demand and transport logistics.
3.3 Integrated space-frame keels
Rather than relying on locally thick spar caps or multiple ribs, the integrated longitudinal truss keel transforms the blade interior into a closed space frame. The continuous truss ties the shell directly into the keel through diagonal struts spaced 1 m apart. Bending tests on a 20-m half-blade recorded 18 % higher ultimate strength, and the improved shear transfer cut panel wrinkling by 60 %. Manufacturing also benefits because the truss can be pultruded and placed in one step before infusion.
3.4 Alternate joint chemistries for small blades
On micro-turbines, metallic fasteners add disproportionate weight and create stress risers. The adhesive-bonded EPP light-wing concept molds each blade from expanded polypropylene foam and bonds root and tip sections with a styrene-butadiene-rubber layer. Tensile peel tests show that the flexible bond line withstands 120 % of design centrifugal loads without delamination. Because the foam recovers elastically, shard release in destructive overspeed tests is virtually eliminated, a notable safety improvement for rooftop installations.
4. Manufacturing and Assembly Breakthroughs
Length growth has escalated factory logistics risk, most visibly when crews handle 80-m carbon pultrusions. Recent patent activity concentrates on safe material delivery, form-fitting reinforcements and error-free closing of the two shell halves.
4.1 Controlled feed of high-energy pultrusions
The coil-retaining feed enclosure keeps a CFRP spar-cap strip in its factory coil until it is paid out along the mold. The enclosure bolts to the root end, so operators do not have to walk the springy strip down the tool. When introduced on a 92-m blade line, personal-injury incidents attributed to spring-back dropped to zero and takt time shrank by 14 %. Because the strip stays in tension, waviness defects were cut in half, lifting laminate compressive strength by 4 %.
4.2 Wide pultrusion conformity
The in-die grooved wide pultrusions add deep longitudinal grooves while the strip is still in the die. During vacuum bagging the grooves hinge so the strip hugs the mold curvature, eliminating resin-rich voids. One 420-mm strip can now replace three 140-mm pieces, saving 30 hours of lay-up labor on a 15-piece batch. Post-cure three-point tests confirm a 97 % recovery of baseline tensile strength because infusion resin fills the grooves.
4.3 Self-centering shear webs
Closing two populated shells around internal webs commonly triggers re-work due to web misalignment. The removable funnel-shaped guide members snap to the webs and act as tapered spacers. As the halves meet, the web edge slides along the tapered faces and centers itself; the plastic guides are removed after the adhesive cures. On a 70-m blade, first-time-right rates improved from 78 % to 96 %, and the remaining 4 % of defects were minor bond-line gaps rather than full re-work cases.
5. Operation, Maintenance and Life-Extension Features
Longer blades spend more hours aloft and therefore accrue more cyclic pressure differentials, leading-edge erosion and inspection downtime. Patents in this space aim to mitigate these cost drivers through internal pressure equalization, seamless erosion shields and reusable access windows.
5.1 Pressure equilibrium across bulkheads
The pressure-relief conduit system routes a composite tube through or around the root bulkhead to connect the hollow blade interior to the spinner cavity. Differential pressure during rotation drops from 24 kPa to less than 5 kPa on a 70-m blade, reducing hoop stresses in the root by 18 %. Consequently, flange thickness can be trimmed by 1.5 mm, saving about 38 kg per blade while extending fatigue life.
5.2 Low-profile erosion shields
Edge erosion can cost 2–3 % AEP annually on offshore sites. Traditional polyurethane films introduce a 0.4–0.7 mm step height and risk suction-side delamination. The tapered U-shaped protective cover thickens only the central strike zone and tapers the wings to below 0.2 mm. Applied with a thixotropic epoxy that simultaneously bonds and fillets, installation time per blade fell from 16 h to 6 h while drag rise stayed under 0.5 counts of lift-to-drag ratio in computational fluid dynamics (CFD) runs.
5.3 Reusable access windows
Internal inspection usually calls for blade removal or destructive cut-outs that need composite repairs afterward. The framed maintenance access window integrates a removable panel into the outer shell. Tests on a 44-m blade show that a single technician can open the panel in 12 min at height, service wiring or sensors, and reseal the hatch without secondary cure. Static proof loading at 1.1 times ultimate verified that the framed aperture restores at least 98 % of baseline stiffness.
6. Frontier Rotor Topologies and Non-Conventional Concepts
Although horizontal-axis turbines dominate installed capacity, a parallel stream of patents explores architectures that blend lift and drag, exploit counter-rotation or distribute loads through cable reinforcement. The following concepts occupy lower Technology Readiness Levels yet highlight aerodynamic principles that may transfer back to mainstream machines.
6.1 Boundary-layer energization on vertical-axis blades
Self-starting lag has long plagued VAWTs. The localized moving-surface belts and their partial-span sibling CN115288927A thread belts along the first 70 % of chord at speeds up to seven times the free stream, energizing the boundary layer only in the windward sector. CFD predicts a 15 % lift increase at low tip-speed ratios. An alternate method, the flexible-cavity blade, embeds a vibrating membrane that delays stall by 6° angle of attack and reduces cut-in wind speed by about 0.8 m s⁻¹ on a 3-kW demonstrator.
6.2 Hybrid lift-drag rotors
The hybrid lift–impulse blade uses two contra-rotating rotors with hollow asymmetric foils. Drag dominates at start-up then transitions to lift once RPM builds. Performance maps show torque coefficients up to 0.55 at λ = 2, bridging the gap between classic Savonius and Darrieus designs. Leakage losses in Darrieus rotors are targeted by the orthogonal blade lattice, which caps the rotor with horizontal foils, and by the Tai-Chi spiral rotor whose S-planform self-brakes in storms.
6.3 Load-cancelling blade orientations
Gravity- and centrifugal-induced fatigue are major cost drivers in megawatt-class VAWTs. The tilted, force-cancelling blades generate vertical lift so that combined forces keep the blade mostly in tension. The outward-deflected inverse-chord wings angle each foil away from the shaft, redistributing centrifugal loads and suppressing stress reversal. Scale-model stress gauges show a 28 % amplitude reduction in alternating stress compared with straight Darrieus foils.
6.4 Cable-reinforced and rail-supported giants
A Chinese double-sweep, multi-blade rotor strings segmented foils on cables, allowing span growth beyond the cantilever limit of conventional composites. Analysis indicates mass per swept area can be halved at diameters above 300 m. At micro scale, a Philippine concept combines counter-rotating shrouded rotors with rim generators and inflatable, self-feathering blades. Inflatable technology enables rapid erection and automatic storm survival as pressure drops.
The radical circular-rail contra-rotating windmill assigns Y-shaped foils to concentric tracks so that inner and outer rings counter-rotate, multiplying relative wind speed. Parametric studies project power densities above 20 W m⁻² of land footprint, roughly quadruple a conventional 5-MW turbine, though the concept remains untested at scale.
