Improved Oxygen Barrier Properties of EVOH Films under Moist Conditions

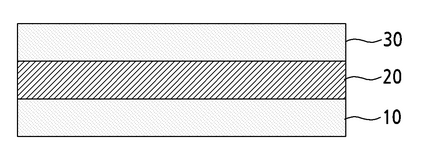

Laminated film for packaging materials with enhanced oxygen barrier properties and improved processing conditions. The film comprises a sealant layer, a blocking layer, and a skin layer. The sealant layer is a polymer-based barrier material, while the blocking layer contains hydrophilic polymers like PVA or EVOH. The skin layer is a hydrophobic polymer layer. The sealant layer and blocking layer are combined with a second adhesive layer, and the skin layer is applied on top. The film is manufactured through co-extrusion and heat sealing, achieving optimal barrier properties while maintaining processing conditions.

Source

Molded film for food packaging that provides excellent oxygen barrier properties, molding efficiency, and food preservation by laminating heat-curable films and thermoforming films. The molded film has a first heat-curable film, a thermoforming film, and a second heat-curable film. The heat-curable films are CPR films made of TER polymer. The thermoforming film is an EVOH co-extrusion film. The films are laminated and extruded melted polymer is pressed between them. This configuration prevents tearing, sticking, and deformation during container molding. It also achieves low oxygen permeability (0.5-1.5 cc/m2/day/atm) and allows uniform EVOH molding in deep containers.

Source

Vacuum packaging method and film for preserving salmon products to prevent spoilage during distribution and storage. The method involves rapidly freezing the salmon using the vacuum film, then thawing in two steps. The film has layers like ethylene vinyl alcohol (EVOH) for gas barrier, antibacterial and antioxidant layers, and a carbon nanowire layer for rigidity. The film prevents spoilage during long-term distribution, thawing, and storage. Rapid freezing and thawing steps preserve quality.

Source

Method for manufacturing molded food packaging films with improved oxygen barrier and molding efficiency. The method involves laminating a thermosetting film onto the top and bottom of an EVOH-containing thermoforming film. This is done by extrusion lamination. The laminated structure is then compressed to form the molded packaging. The laminated construction provides improved oxygen barrier properties and prevents tearing or sticking during molding. The thickness of the EVOH layer is balanced in the molded container.

Source

Method for packaging food using containers with improved oxygen barrier and shrinkage properties. The method involves using a specific multilayer film structure for thermoforming the containers. The film has an EVOH layer sandwiched between thermoplastic layers for oxygen barrier. A thermosetting layer is laminated on the top and bottom for strength. The film thickness is optimized for container depth to prevent distortion. Additives like floating bodies, suspended particles, and heat-reflective materials are included in the film layers for further benefits like preventing sticking, improving molding, and extending shelf life.

Source

Oxygen barrier polyethylene film and preparation method thereof for enhancing barrier properties beyond conventional polyethylene films. The film combines enhanced oxygen and water barrier performance with improved mechanical properties, particularly tensile strength and elongation at break, through the incorporation of specific additives. The preparation method enables controlled incorporation of these additives into the polyethylene matrix, ensuring consistent performance across different environmental conditions.

Source

Multilayer barrier film with improved oxygen barrier and transparency compared to single-layer films. The film has alternating layers of an aliphatic polyester resin and ethylene vinyl alcohol (EVOH) resin. This multilayer structure reduces oxygen permeability to 30 cc/m2.day or less, while maintaining transparency. The film can be made by alternately extruding and stacking the two resins, followed by biaxial stretching and heat-setting. The aliphatic polyester layer provides mechanical strength and stability, while the EVOH layer provides oxygen barrier properties.

Source

Multilayer structure with enhanced oxygen barrier properties through a novel ethylene-vinyl alcohol copolymer. The copolymer, with a specific block characteristic of ethylene units, enables superior oxygen barrier performance in multilayer structures while maintaining excellent moisture barrier properties. The copolymer's unique block structure ensures uniform oxygen barrier performance across the multilayer structure, even after long-term storage. The copolymer's improved oxygen barrier properties enable effective packaging applications where oxygen barrier properties are critical, such as food packaging and medical packaging.

Source

A method for manufacturing food packaging materials that can effectively maintain the freshness of contents like food and inhibit bacterial spoilage without direct contact with the food. The method involves coating a substrate with a primer containing ingredients like horseradish extract oil, polyurethane acrylate oligomers, and shell powder. This primer is cured to form an antibacterial coating that can be laminated onto another primer-coated substrate to create a bonded antibacterial film. This antibacterial film can be combined with thermoformed packaging films to provide food packaging materials that extend shelf life by blocking oxygen and suppressing contaminants.

Source

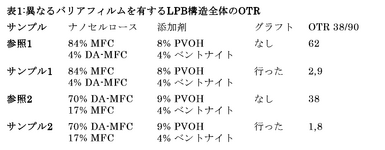

Oxygen barrier film comprising microfibrillated cellulose (MFC) with enhanced mechanical properties and barrier performance. The film is made by suspending MFC with a specific size distribution profile, where the first suspension has a median particle size between 25-35 μm, and the second suspension has a median particle size between 10-12 μm. This dual suspension formulation enables the creation of a film with superior mechanical strength and barrier properties compared to conventional MFC films. The film achieves lower oxygen transmission rates (OTR) below 10 ml/m2/24h at 50% RH and higher strain at break values of at least 3.5%, making it suitable for packaging applications where oxygen barrier properties are critical.

Source

Barrier composition for multilayer films and packaging with improved oxygen barrier properties. The composition contains modified or unmodified starch, plasticizer, and microfibrillated cellulose (MFC). The starch and MFC fill any pores formed in the film to further improve barrier properties. The composition can also contain clay. The starch, plasticizer, and MFC are mixed into a dispersion and heated, then cooled. This allows the clay to disperse and prevents agglomeration. The dispersion is then used to coat the substrate to form the barrier layer. The multilayer structure can have additional layers like a carrier layer.

Source

Gas barrier film for paper and paperboard packaging materials with improved oxygen transmission rate (OTR) at high relative humidity (RH). The film comprises a microfibrillated cellulose layer with a metallized surface, where the metallization layer enhances barrier properties even at elevated temperatures and humidity. The film is combined with a dispersion coating layer to achieve optimal barrier performance, enabling recyclable packaging materials for liquid packaging applications.

Source

Gas barrier film for packaging materials based on paper and paperboard that provides improved oxygen barrier properties at high humidity and temperature compared to conventional barrier films. The film structure involves a microfibrillated cellulose (MFC) layer, at least one surface of which is grafted with a fatty acid halide. A polymer layer is then applied onto the grafted MFC surface. This combination provides both good liquid and oxygen barrier properties, particularly at high humidity and temperature.

Source

Microfibrillated cellulose (MFC) film for packaging materials that maintains superior oxygen barrier properties under high humidity conditions. The film combines an MFC layer with a polymer layer, where the MFC layer is grafted with a fatty acid halide and a polymer. The MFC layer, which is naturally stable under moderate conditions, exhibits enhanced barrier performance at high humidity and temperature compared to conventional MFC films. The polymer layer enhances the barrier properties while maintaining stability.

Source

Manufacturing oxygen barrier films through controlled fibrillation of cellulose microfibrils (MFCs) with optimized size distribution. The process involves creating a suspension of MFCs with a specific particle size distribution, where the first suspension comprises fibers with a median diameter between 25-35 μm, while the second suspension comprises fibers with a median diameter below 25 μm. This dual-suspension approach enables the formation of an MFC suspension with a balanced particle size distribution, which is then used to produce the oxygen barrier film. The film exhibits superior barrier properties, including low oxygen transmission rates and high strain at break, while maintaining its barrier integrity over time.

Source

Gas barrier film for paper and paperboard packaging materials that provides improved oxygen barrier properties at high relative humidity compared to traditional barriers. The film has a microfibrillated cellulose (MFC) layer with one surface grafted with fatty acid halide. This is coated with a polymer layer containing a thermoplastic polymer like PE. The fatty acid halide graft improves the MFC barrier at high RH, and the polymer layer provides additional barrier. The polymer can have a tie layer between the MFC and polymer for adhesion. This film can replace aluminum in packaging like liquid cartons to provide stable oxygen barriers at high RH and humidity.

Source

Multilayer packaging material exhibiting superior oxygen barrier performance through a novel copolymer-based solution. The material comprises a multilayer structure with a layer containing an ethylene-vinyl alcohol-copolymer with a block character of ethylene units in a particular range, and a production method that enables excellent viscosity stability even after long-term storage. The solution is prepared by controlling the polymerization conditions to achieve a block character of ethylene units less than 0.90, resulting in enhanced oxygen barrier performance.

Source

In-line thermoforming film container for food packaging that exhibits excellent oxygen and moisture barrier properties, has excellent physical rigidity and antibacterial properties, can maintain the freshness of food for a long time, and can inhibit bacterial spoilage. The container includes a non-stretched polypropylene (CPP) layer, a PE (polyethylene) layer positioned on the top of the non-stretched polypropylene (CPP; casting polypropylene) layer, and the PE (polyethylene) layer.

Source

A barrier film exhibiting superior oxygen transmission properties even at high relative humidity conditions through the controlled decomposition of microfibrillated cellulose during film formation. The film demonstrates improved barrier performance compared to conventional methods, maintaining its oxygen transmission rate even at relative humidity levels of 50% at 23°C and 85% at 38°C. This is achieved through the enzymatic decomposition of microfibrillated cellulose during film formation, which selectively targets and degrades the finer fibrillar structures while preserving the coarser elements.

Source

Polypropylene-based food packaging film with excellent adhesion to containers, oxygen blocking, shrinkage, and clarity. The film has an inner layer with a polypropylene terpolymer, a gas barrier layer of EVOH, PVDC, or nylon, and a top layer with the same polypropylene terpolymer. An adhesive layer between the barrier and inner layers can contain a modified polypropylene. The film is stretched after coextrusion to enhance properties.

Source
