Flexible Micro-LEDs for Bendable Displays
Flexible micro-LED displays face significant mechanical and electrical challenges when subjected to repeated bending. Current designs must maintain stable electrical connections and uniform light emission while accommodating bend radii as small as 1-2mm, with typical micro-LED sizes ranging from 3-10 micrometers and interconnect traces measuring just 5-15 micrometers in width.
The fundamental challenge lies in preserving electrical connectivity and LED performance while allowing for substrate deformation that can strain both the semiconductor junctions and their interconnecting traces.
This page brings together solutions from recent research—including stacked substrate architectures with protected wiring layers, stretchable conductive interfaces between LED modules and substrates, integrated driver IC approaches, and elastomeric transfer techniques. These and other approaches focus on achieving reliable flexible displays while maintaining manufacturing yield and display performance.
TABLE OF CONTENTS
1. Foundational Fabrication and Lift-Off Processes
The commercial viability of flexible micro-LED displays fundamentally depends on achieving high-yield fabrication processes that preserve device integrity during substrate separation. Traditional laser lift-off (LLO) processes, while effective for rigid substrates, introduce significant challenges when applied to flexible architectures. The intense UV laser energy required for substrate detachment creates mechanical stress concentrations that frequently result in encapsulation layer cracking and metal wiring breakage, particularly in bridge regions connecting pixel islands.
A breakthrough approach addresses these yield-limiting factors through a multi-layer flexible substrate design that incorporates sacrificial buffer layers with larger orthographic projections than adjacent functional layers. These outer buffer layers absorb laser-induced stress during lift-off, effectively shielding inner functional components from damage. The integration of sloped via holes and temporary process films further enhances structural resilience during separation, resulting in dramatically improved manufacturing yields.
Recognizing the fundamental limitations of laser-based separation, alternative approaches have emerged that eliminate thermal and photonic stress entirely. A mechanical separation structure employs a dual-layer separation system comprising a first separation layer and an oxidized second layer, enabling clean mechanical detachment without exposing display elements to damaging energy. This method forms an adjustment layer beneath the flexible substrate and display elements, ensuring that sensitive components like TFTs remain undisturbed during separation.
Complementing these separation strategies, controlled polyimide layering techniques prevent common defects such as wrinkles and bubbles during substrate removal. By optimizing the bonding between polyimide layers and inorganic components, ensuring the second PI layer bonds exclusively to inorganic layers rather than the rigid base substrate, this approach eliminates residual adhesion issues that compromise substrate quality.
2. Advanced Assembly and Transfer Methods
Building upon these foundational fabrication processes, the assembly of micro-LEDs onto flexible substrates requires precision techniques that overcome the limitations of conventional pick-and-place methods. Traditional assembly approaches struggle with ultra-small micro-LEDs ranging from 0.5 to 50 microns, particularly when mechanical stress during bending can lead to detachment or failure.
Elastomeric micro-transfer printing represents a transformative approach that enables high-precision, massively parallel placement of micro-LEDs from native substrates onto flexible targets. This method employs elastomer or electrostatic stamps to simultaneously transfer arrays of micro-LEDs, dramatically improving throughput compared to sequential placement. The innovation extends to planar terminal architecture, where both anode and cathode are positioned on the same micro-LED side with horizontal separation, simplifying electrical interconnection and eliminating vertical insulation requirements.
Advancing this concept further, stretchable stamp-based transfer methods enhance both throughput and alignment accuracy through controlled stamp deformation. A stretchable elastomeric stamp with pick-up pillar arrays collects micro-LEDs at dense initial spacing, then stretches uniaxially or biaxially to achieve precise target spacing before transfer. This stretching mechanism enables exact placement control while significantly reducing transfer cycle requirements, lowering manufacturing costs through batch processing and reduced alignment errors.
For applications demanding maximum structural integrity, direct chip-bonding approaches eliminate transfer complexity entirely by fabricating micro-LEDs separately and bonding them directly onto flexible substrates. This method creates mechanically robust display panels capable of withstanding repeated bending without detachment, addressing the core fragility issues in flexible displays while improving yield and reliability for commercial production.
3. Substrate Engineering and Stress Management
The assembly methods described enable the integration of micro-LEDs onto engineered substrates specifically designed to manage mechanical stress during flexing. Traditional rigid substrates cannot accommodate the mechanical strain induced during bending, leading to wire disconnection and material fatigue that compromise device reliability.
A novel approach integrates stress-relief features through a flexible micro-LED display panel that combines substrate thickness modulation with advanced material selection. This design leverages Colorless Polyimide (CPI) as the base substrate for its exceptional flexibility and thermal stability, while aluminum-neodymium alloy conductive layers enhance mechanical durability under stress. The second base substrate is precisely tuned to 8-12 µm thickness, balancing structural integrity with mechanical compliance to reduce wire disconnection probability during deformation.
Complementing thickness optimization, shallow trench architectures between adjacent pixel units provide mechanical buffering without compromising pixel density. These trenches, etched into encapsulation layers without penetrating micro-LEDs or active elements, localize strain away from critical components while enabling higher micro-LED density through miniaturization and precise spatial separation.
These substrate engineering approaches establish the foundation for more complex network architectures that further enhance mechanical resilience while maintaining electrical performance.
4. Network Architectures for Enhanced Mechanical Resilience
The substrate stress-relief features enable the implementation of sophisticated network architectures that maintain electrical continuity under extreme mechanical deformation. Traditional surface lighting systems based on rigid PCBs and packaged LEDs cannot conform to non-planar surfaces, while OLEDs, despite flexibility, suffer from high cost and low luminous efficiency limitations.
The flexible substrate with integrated micro-LEDs introduces an island-bridge architecture where unpackaged bare micro-LED chips mount directly onto flexible substrates composed of upper and lower insulating films sandwiching thin metal interlayers. This configuration supports mechanical deformation while ensuring electrical continuity under strain. White reflective layers in contact with light-transmitting resin enhance optical output, while modular approaches enable multiple small flexible boards to interconnect via 2-way and 4-way connections embedded within stepped edge portions.
The overlapping edge interconnection design represents a key innovation enabling robust electrical connectivity without compromising mechanical flexibility. This stepped architecture allows flexible boards to overlap at edges, embedding wiring within overlap regions to maintain flat, continuous surfaces. The use of wireless, flip-chip micro-LEDs eliminates fragile bonding wires, further enhancing mechanical resilience during bending or lamination.
Critical to optical performance, the incorporation of continuous light-transmitting films with strategically placed air holes and sink portions along module gap lines facilitates air evacuation during lamination. Inclined resin layer edges guide air toward evacuation points, minimizing light leakage and preserving optical uniformity across displays while eliminating refractive index mismatches that would otherwise cause light scattering.
5. Encapsulation and Protection Strategies
The network architectures require robust encapsulation strategies that protect micro-LEDs while maintaining flexibility. Traditional LED fabrication methods often result in devices with dimensions exceeding 100 μm, creating rigid configurations unsuitable for flexible applications, particularly in biomedical and wearable electronics requiring mechanical compliance and tissue compatibility.
Polymer-embedded micro-LED matrices address these limitations by embedding singulated micro-LED structures between flexible polymer layers such as polyimide, serving as both mechanical support and biocompatible interface. The process begins with carrier substrates including first flexible polymer layers, then embeds micro-LEDs in second flexible polymer layers, enabling precise spatial control and electrical connectivity. This configuration supports optional metallic contact structure integration post-embedding, facilitating dual-line addressing schemes for individual LED control.

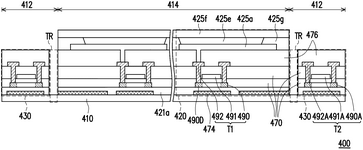

Advancing beyond single-layer approaches, multi-layer encapsulation strategies integrate micro-LEDs with thin-film transistors while maintaining mechanical flexibility and optical clarity. These architectures embed LEDs at least partially within second substrate layers atop first transparent substrates. Planarization insulating layers applied over LED electrode pads enable TFT deposition on planarized surfaces, minimizing lateral footprint while enhancing integration density through vertical stacking.
These encapsulation strategies enable the integration of sophisticated driver and control systems that maintain performance under mechanical stress.
6. Integrated Driver and Signal Routing Architectures
The encapsulated micro-LED arrays require driver integration and signal routing architectures that maintain functionality during bending and flexing. Traditional display architectures often experience signal degradation or failure in bending regions due to broken traces or delaminated interconnects.
Redundant signal routing architectures specifically address bending region vulnerabilities by supplementing primary trace lines with backup conductive lines in separate metal layers. These lines connect electrically via conductive vias strategically placed in bending regions, ensuring signal continuity even when primary lines are compromised by mechanical stress. This redundancy significantly improves manufacturing yield and operational reliability by preventing signal interruptions during flexion.
On-module driver integration encapsulates both micro-LEDs and driver circuitry into single stretchable modules. Using stretchable conductive materials to mount these modules onto flexible substrates eliminates separate interconnects between ICs and substrates, which are prone to contact resistance issues under deformation. This compact integration enhances mechanical robustness while simplifying assembly and improving electrical performance for curved and stretchable display applications.
For large-area or high-resolution displays, edge-mounted control circuit architectures position active matrix circuit units surrounded on two sides by control circuit units. This layout enables micro-LED display fabrication beyond wafer size limitations by reconfiguring CMOS backplane and electrode structures. Flip-chip bonding techniques ensure precise alignment and efficient signal transmission while supporting independent pixel control for enhanced resolution and display responsiveness.
7. Modular Design and Scalability Solutions
The integrated driver architectures enable modular design approaches that overcome the inherent size limitations of individual micro-LED units and manufacturing constraints of large, monolithic panels. Traditional approaches suffer from visible seams, poor mechanical flexibility, and complex assembly processes that limit scalability.
A flexible display module architecture integrates micro-LEDs onto flexible drive circuit boards with support plates, allowing bending regions to fold around support plates for extremely narrow bezels. This narrow-bezel configuration enables edge-to-edge tiling of multiple modules arranged within back plates to form large-area displays. The modular flexibility ensures pixel pitch consistency across module boundaries, eliminating visual artifacts such as dark lines.
The flexible LED display module employs submodules interconnected via flexible couplings and magnetic mounting structures, eliminating rigid enclosures and excessive cabling for lightweight, compact, fanless display solutions. Flexible coupling between submodules allows entire displays to conform to curved or irregular surfaces, while magnetic attachment simplifies installation and maintenance. Embedded electrical conductors within flexible housing reduce external wiring and enhance reliability for dynamic environments and large-scale deployments.
Flexible micro-LED panel designs introduce curved chamfered edges on both flexible substrates and supporting boards, enabling panels to bend and join with minimal gaps even along curved surfaces. These chamfered edges align with pixel curvature, preventing distortion and ensuring visual continuity across spliced modules while directly addressing alignment and bonding challenges in large micro-LED array assembly.
8. Specialized Implementation Architectures
The modular design capabilities enable specialized implementations for transparent, wearable, and curved-surface applications that extend beyond traditional flat-panel displays. These applications require unique architectural considerations that balance optical performance, mechanical compliance, and form factor constraints.
Perforated flexible substrates with dual-sided functionality enable seamless, bezel-less designs by mounting micro-LEDs on one side while positioning driving circuits on the opposite side, connected via through-substrate vias. This configuration enables seamless edge-to-edge splicing of display panels while enhancing structural integrity and manufacturing yield by avoiding thermal and mechanical issues associated with glass substrates.
For wearable applications, flexible micro-LED display systems utilize PI or CPI substrates supporting mass transfer of micro-LEDs onto flexible circuit boards temporarily bonded to rigid carriers during fabrication. After precise alignment and electrical connection to pixel circuits, carrier removal yields thin, lightweight, bendable displays that improve wearability and enhance integrated biometric sensor performance through closer proximity to physiological measurement points.
Advanced transparent electrode development addresses the brittleness of conventional ITO-based electrodes through embedded sintered silver nanowires with metal oxide nanoparticles in polymer matrices. This composite structure forms conductive networks with improved adhesion and mechanical stability, with sintering processes enhancing electrical connectivity by eliminating insulating ligands and creating larger contact surfaces between nanowires and nanoparticles.
9. Curved-Surface and Dynamic Lighting Applications
The specialized architectures enable implementation of flexible micro-LED arrays in curved-surface lighting applications that address critical challenges in achieving high-performance illumination on non-planar, dynamic surfaces. Traditional LED solutions using rigid PCBs limit applications to flat or gently curved surfaces, while OLEDs suffer from efficiency and cost limitations.
Flexible surface lighting devices integrate unpackaged, flip-chip micro-LEDs directly onto multilayer flexible substrates with upper and lower insulating films sandwiching thin metal layers. White reflective layers in contact with light-transmitting resin enhance luminance, while micro-LED chips arranged at fine pitches (0.4-0.8 mm) ensure uniform light distribution. Modular panel designs enable multiple flexible circuit boards to tile together using embedded interconnections, with stepped edge overlapping and strategically placed air evacuation features mitigating optical defects.
Vehicle-mounted flexible micro-LED display systems demonstrate advanced curved-surface applications by conforming to complex automotive surfaces such as A-pillars. These systems integrate high-density micro-LED modules onto flexible substrates using cylindrical via holes and flip-chip bonding, eliminating wire bonding requirements for tighter pixel spacing. Real-time image acquisition and processing systems capture external views obstructed by vehicle pillars and render them on interior-mounted flexible panels, effectively eliminating blind spots while demonstrating curved-surface visualization potential.
Foldable LED strip designs enable multi-directional lighting on curved or folded surfaces through LEDs mounted on flexible substrates that fold at predefined angles to reorient light output forward, backward, and sideways without altering strip length. Folded configurations encapsulated in rigid polymers maintain structural stability and prevent deformation, offering versatile solutions for compact, robust, angular lighting applications.
10. Mechanical Support and Folding Mechanisms
The dynamic lighting applications require sophisticated mechanical support systems that maintain structural integrity during repeated folding and rolling operations. These mechanisms must balance protection with flexibility to ensure long-term reliability in demanding applications.
Blocking members with stretchable sections span across upper support members, deforming synchronously with folding motion to seal gaps and prevent foreign material ingress without impeding fold operations. The stretchable design ensures display protection while preserving mechanical flexibility, enhancing reliability and operational lifespan.
Multi-layer adhesive units with patterned base layers address conventional adhesive limitations in rollable displays by incorporating low-modulus adhesives flanked by patterned base layers aligned with cover openings. This design reduces effective modulus and improves stress absorption while minimizing adhesive leakage, ensuring optical clarity and mechanical durability through strategic patterning.
Fiber-reinforced support modules combine high-strength carbon or aramid fibers with resin-based support layers featuring openings and low-modulus fillings in folding regions. This enables display bending without cracking or delamination while maintaining thermal and mechanical stability across wide temperature ranges, supporting dual-surface displays in rugged, high-performance foldable electronics.
Lattice-structured support plates incorporate slits of varying widths and sloped sidewalls to reduce repulsive forces and prevent buckling, allowing support plates to conform to display shapes without damage. Bridge integration with grooves and optimized support bar widths enhances flexibility while maintaining structural integrity, particularly effective in rollable and foldable devices requiring smooth mechanical transitions.
Finally, flexible display panels with reduced thickness and modulus inserts strategically place inserts in rolling connection areas to reduce tilting forces and prevent layer separation. By tailoring mechanical properties of specific panel regions, this approach ensures displays can be rolled repeatedly without failure, offering robust solutions for sliding and rollable devices that complete the mechanical support framework for advanced flexible micro-LED display systems.
