Adhesive Bonding for Package Assembly
Package assembly adhesives must maintain bond strength across temperatures from -40°C to 85°C while managing chemical migration concerns. Current two-component polyurethane systems show residual isocyanate monomer levels of 0.1-1.0%, which poses challenges for food-contact applications. Additionally, these adhesives must achieve complete cure within 24-48 hours under varying humidity conditions.
The fundamental challenge lies in developing adhesive systems that combine rapid cure rates and strong bonds while eliminating chemical migration and maintaining processability in high-speed assembly lines.
This page brings together solutions from recent research—including low-monomer polyisocyanate formulations, dual-property adhesive configurations, and biodegradable compositions with controlled melt viscosity. These and other approaches focus on practical implementation in modern packaging operations while addressing both performance and safety requirements.
1. Polyisocyanate Composition with Xylene Diisocyanate and Diol Reaction Product Exhibiting Reduced Monomer Content
DIC CORP, 2025
A polyisocyanate composition for two-component curing applications like adhesives and coatings. The composition contains a specific type of polyisocyanate made by reacting xylene diisocyanate and a diol with a molecular weight of 65-300. This polyisocyanate has lower diisocyanate monomer content compared to conventional polyisocyanates. It provides improved safety and reduced migration concerns in applications like food packaging adhesives. The lower diisocyanate monomer content reduces the risk of unreacted diisocyanate remaining in the final product.
2. Packaging Box Adhesive Structure with Dual-Property Adhesive Configuration and Integrated Adhesive Holes
YOUNGJIN PACKAGING CO LTD, 2024
Adhesive structure for packaging boxes that improves adhesion strength between side plates by using different adhesives with complementary properties. The structure involves two adhesive types, like hot melt and water-based emulsion, applied side by side on the side plate folding surfaces. An adhesive hole is formed between the adhesive sections. The holes are filled with either adhesive type to increase adhesion area. This leverages the advantages of each adhesive type, like heat resistance vs water resistance, while mitigating their weaknesses.
3. Laminated Film with Solventless Adhesive Applied via Roll Coating Device for Reduced Air Bubble Formation
TOYO SEIKAN CO LTD, 2024
Reducing air bubble formation in laminated films used for packaging containers like pouches and lids. The method involves coating one film with a solventless adhesive using a specialized roll coating device. The coated film is then laminated with the other film while sandwiched between them. The coating device has a configuration with rolls and transfer rolls to precisely apply the adhesive. The adhesive has specific viscosity and components like a polyester resin and aliphatic isocyanate curing agent. This allows controlled adhesive layering and bonding to reduce air trapped between films and prevent orange peel appearance in the laminated film.
4. Two-Component Curing Adhesive Composition with Acid Anhydride Oil/Fat and Acid-Modified Polyol-Amine Curing Agent
DIC CORP, 2024
Two-component curing adhesive composition and laminate made using it that combines recyclability and biodegradability. The adhesive composition contains an oil/fat with an acid anhydride group and a curing agent containing an acid-modified polyol and an amine compound. The oil/fat provides the adhesive strength when cured. The modified polyol and amine compound catalyze the reaction between the acid anhydride group and hydroxyl groups to form a crosslinked network. This allows a recyclable and biodegradable adhesive for laminating films.
5. Automated Pouch Packaging Machine with Integrated Dunnage Conversion and Sealing Mechanism
RANPAK CORP, 2024
Automated machine for making pouch packages with cushioning. The machine converts sheets into a strip of expanded dunnage and then folds it into a pouch. The conversion step involves layering an upper cover sheet, lower cover sheet, and expanded slit sheet with adhesive between them. Pressure is applied to bond the cover sheets together. The folded pouch is formed by creasing the strip, applying adhesive to the edges, and compressing them to seal.
6. Two-Component Adhesive Comprising Polyisocyanate and Polyol with Specified Viscosity Range
DIC CORP, 2024
Two-component room temperature curing adhesive with improved adhesion to a wide range of base materials. The adhesive consists of a polyisocyanate composition (X) with a viscosity of 20-180 mPa s at 50°C, and a polyol composition (Y) with a viscosity of 20-180 mPa s at 50°C. This allows the adhesive to cure at room temperature with good adhesion to various substrates.
7. Two-Liquid Curable Adhesive with Low-Molecular-Weight Isocyanate and Polyol-Amines Blend
DAINIPPON INK & CHEMICALS, 2024
Two-liquid curable adhesive for laminating materials like packaging films that has reduced isocyanate residue compared to traditional adhesives. The adhesive contains a polyisocyanate composition with a specific blend of isocyanate monomers and a polyol composition. The isocyanate composition has a low-molecular-weight isocyanate monomer with 140-280 molecular weight blended at 0.001-0.1% by mass. This reduces the residual isocyanate in the cured adhesive. The polyol composition contains polyols and amines. The specific blend of low-molecular-weight isocyanates allows faster curing of the adhesive while minimizing residual isocyanates.
8. Gas Barrier Film with Carboxyl Group-Containing Polymer and Dehydration-Condensation Heteroatom Compound
DAINIPPON INK & CHEMICALS, 2024
Gas barrier film for packaging that improves adhesion to other layers when laminated. The film contains a resin with a carboxyl group-containing polymer and a dehydration-condensation heteroatom compound. It optionally has adjacent layers with a polyvalent metal compound and/or an oxide, hydroxide, or nitride compound. The film provides high gas barrier properties and enhanced adhesion to laminated layers compared to conventional gas barrier films.
9. Packaging Laminate with Eco-Friendly Polyurethane Outer Adhesive Derived from Recycled Polyester or Biomass
NAN YA PLASTICS CORP, 2024
Packaging laminate material, outer layer adhesive, and a method for producing the same that uses environmentally friendly materials. The packaging laminate has an inner layer film, outer layer film, aluminum foil, inner adhesive, and outer adhesive. The outer adhesive is a polyurethane made from an eco-friendly polyester polyol derived from recycled polyester or biomass raw materials. The polyol has a weight average molecular weight of 25,000 to 75,000, number average molecular weight of 18,000 to 55,000, and glass transition temperature of -30°C to 60°C. The isocyanate component is an adduct of toluene diisocyanate and a C4-C15 polyol.
10. Solventless Two-Component Adhesive with Polyisocyanate and Polyol Compositions for Metal Foil Bonding
DAINIPPON INK & CHEMICALS, 2024
A solventless two-component adhesive for packaging materials that provides excellent adhesion to metal foils and metal deposition layers. The adhesive contains a polyisocyanate composition with a specific polyisocyanate compound and a polyol composition containing a polyol and a compound like dimethylolpropionic acid or dimethylolbutanoic acid. The adhesive can be used to laminate base materials without volatile organic solvents, reducing environmental impact and improving worker safety compared to traditional solvent-based adhesives. The adhesive cures when the two components are mixed and applied to the base materials before bonding.
11. Hot Melt Self-Adhesive Composition with Specific Tackifying Resin and Styrenic Block Copolymer Ratios
BOSTIK SA, 2024
Hot melt self-adhesive composition for resealable packaging with improved adhesive properties and quality of rupture. The composition contains specific ratios of tackifying resins and styrenic block copolymers. The tackifying resin is a non-hydrogenated tackifier derived from aliphatic hydrocarbons like C9 aromatic hydrocarbons. The composition also has a C2/C4 copolymer with >80% C2 content and a C2/C3/C4 copolymer. The composition is used in multilayer films for resealable packaging with improved adhesion, sealing, and rupture characteristics.
12. Gas Barrier Film with Stretched Polyethylene Base and Inorganic Oxide Layer for Enhanced Layer Adhesion
TOPPAN INC, 2024
Gas barrier film for packaging applications that provides a mono-material packaging solution while maintaining strong adhesion between layers. The film has a base material made of stretched polyethylene with a low probe descent temperature (around 170°C) to enhance adhesion to the heat seal layer. An inorganic oxide layer or oxygen barrier membrane is formed on the base material surface. The film can be used in a laminate structure with another polyethylene layer joined by adhesive. The low probe descent temperature base material enables strong adhesion between the layers without delamination.
13. Integrated Machine for Combined Printing, Drying, Folding, Joining, and Adhesive Application in Packaging Materials
KIM SE YOUNG, 2024
Integrated device for packaging printing and adhesive application that automates the production of self-adhesive packaging materials like self-sealing plastic wrap. The device combines all the necessary steps from printing and drying the packaging material to folding, joining, and applying adhesive in a single integrated machine. This eliminates the need for separate machines and manual transfer steps between them, improving efficiency and productivity.
14. Laminate Structure with Solvent-Free Adhesive and Reduced Air Bubble Formation
TOPPAN HOLDINGS INC, 2024
Laminate with excellent strength and physical properties, especially when made using a solvent-free adhesive to bond films like gas barrier films. The key is suppressing air bubble formation in the adhesive layer. The laminate has an area ratio of air bubbles in the adhesive layer of 4% or less when observed from the lamination direction. This is achieved by techniques like increasing roll temperature, pressure, and curing time during adhesive application to smooth out the adhesive surface and prevent bubbles.
15. Two-Component Solvent-Free Adhesive Comprising Polyisocyanate and Polyol Compositions with Polyoxyalkylene Chains and Polyamine Compound
DIC CORP, 2024
Two-component solvent-free adhesive for laminates that can be dried with excellent initial cohesive strength. The adhesive contains a polyisocyanate composition with a polyisocyanate compound, a polyol composition with polyester polyol, a compound with polyoxyalkylene chains and hydroxy groups, and a polyamine compound. This adhesive provides initial cohesive strength that is higher than freshly made and reduces over time compared to solvent-based adhesives. The adhesive is useful in laminate manufacturing as it allows air bubbles to be minimized and reduces defects.
16. Layered Packaging Structure with Epoxy-Based Adhesive for Oxygen Barrier Retention After Heat Sealing and Retort Sterilization
TOYO SEIKAN GROUP HOLDINGS LTD, 2024
Layered packaging structure for oxygen barrier bags that maintains barrier properties after heat sealing and retort sterilization. The structure has a barrier film with an inorganic coating on a thermoplastic base, an adhesive layer, and a heat-sealing layer. The key is using an epoxy-based adhesive in the adhesive layer. This adhesive has a high storage modulus at 120°C, which helps prevent shrinkage and defects during heat treatments. This epoxy adhesive layer allows the packaging to retain oxygen barrier properties after heat sealing and retort sterilization.

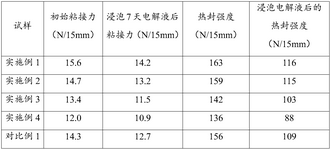

17. Aluminum-Plastic Film Adhesive with Low Melting Point Polyolefin and Bisphenol A Epoxy Resin Components
GUANGDONG BTREE NEW ENERGY MATERIALS CO LTD, 2024
Improved aluminum-plastic film adhesive for lithium battery packaging that provides better electrolyte resistance and heat sealing strength compared to existing adhesives. The adhesive formulation contains components A and B. Component A includes low melting point polyolefin, acid anhydride monomer, initiator, auxiliary agent, and solvent. Component B has bisphenol A epoxy resin, modified bisphenol A epoxy resin, and solvent. The auxiliary agent contains a triazine ring compound. This composition improves adhesion, electrolyte resistance, and heat sealing compared to conventional adhesives.

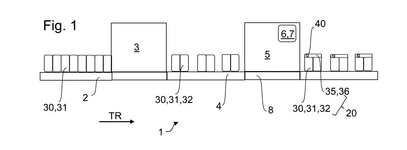

18. Packaging Device with Adjustable Angle Adhesive Application Module and Width-Responsive Sensor System
KRONES AG, 2023
Packaging device and method for producing packaging units with improved adhesive bonding between the packaging material and the items. The device has an adjustable adhesive application module that can change its angle of dispensing. This allows optimizing the distance between adjacent adhesive dots or strips based on the width of the packaging material. By adjusting the angle, the spacing between dots can be set to prevent gaps or weak connections. Sensors detect the packaging width and calculate the optimal angle. This eliminates the need to deactivate dispensers for narrow areas.
19. Automated Packaging Container Manufacturing System with Embedded Leaflet Placement and Adhesion Verification
TANNA TEJAS, 2023
An automated system for manufacturing packaging containers with embedded leaflets that ensures proper placement and adhesion of the leaflets. The system uses a feeding mechanism for the blank containers, an adhesive applicator, a folder-gluer for the leaflets, and detection modules to check for presence of adhesive and leaflets during assembly. The containers, leaflets, and adhesive are transferred together on a conveyor. The first detection module checks for adhesive drops on the container. The second detection module checks for proper leaflet placement. Rejects are generated if either check fails.
20. Solvent-Based Polyurethane Adhesive with Water-Responsive Debonding Capability for Flexible Packaging
HENKEL AG & CO KGAA, 2023
Solvent-based polyurethane adhesive for bonding flexible packaging materials that can be debonded by water treatment. The adhesive composition contains a polyurethane polymer made by reacting polyether polyol and polyisocyanate. It also has organic solvents like ethyl acetate and ethanol. The adhesive cures to bond flexible packaging layers like polyolefins or polyesters. Treating the bonded packaging with water debonds the layers for recycling.
