Tesla's Advanced Crash Protection Techniques for EV Batteries

Energy storage system design that reduces cell failure propagation by weakening areas above cells prone to failure. The system has a housing with stacked battery cells, interconnects, and a top plate. Weakened areas are intentionally created above cells that are more likely to fail. These areas have less integrity than surrounding regions. This allows them to rupture under pressure from failed cells instead of propagating failure to neighboring cells. The weakened areas could be physically weaker, chemically weaker, or both.

Source

A self-activating drain device for battery systems that automatically expels leaked liquid from the battery enclosure when a coolant leak occurs. The drain device has a sealed port covered by a membrane. Inside is an absorbing material that expands when it comes into contact with the leaking liquid. This expansion opens the membrane and allows the liquid to drain out. The expanded absorbing material can also trigger other actions like deactivating coolant pumps or warning the user. The drain device is positioned in the battery enclosure wall to catch any leaks and prevent internal components from coming into contact with the liquid.

Source

Decoupling the high voltage battery of an electric vehicle in the event of a collision to prevent electrical hazards and fires. It replaces the conventional inertial switch with a pyrotechnic switch integrated into the vehicle electrical system. The pyrotechnic switch receives activation signal from the airbag system during a crash. In the normal state, it allows battery connection through the main contactor. But upon collision detection, it severs the connection preventing the battery from supplying power to the vehicle electrical system. This ensures decoupling in controlled conditions versus inertial switches that can trigger prematurely.

Source

Vehicle adapter to route a drive shaft through a crash load path while allowing the vehicle crush rail to direct crash forces into a back-up structure. The adapter bridges between the crash rail and back-up structure, has a socket for the rail, a plug for the back-up, and an opening for the shaft. The adapter can deform during crashes to absorb impact energy. This keeps the crash load path low vertically to accommodate the shaft while still directing forces into the back-up structure.

Source

A vehicle side impact protection system that uses the battery pack enclosure as an integral part of the vehicle structure to absorb and distribute side impact forces. The battery pack is positioned between the front and rear suspension and mechanically coupled to the rocker panels. Cross-members within the battery pack absorb and distribute impact forces when either side of the vehicle is hit. This avoids the need for dedicated heavy side impact structures while still providing protection. The battery pack enclosure also segregates the batteries into groups and can thermally isolate them.

Source

Impact protection structures for vehicles that mitigate damage to underlying structures like battery packs during collisions. The structures have an interior rail attached to the vehicle and an exterior rail connected to the interior rail. The exterior rail has features like spaced apart regions, reduced connection strength, lower buckling resistance, and offset shear center to allow it to deform and buckle preferentially during impacts. This prevents intrusion of objects into the vehicle while absorbing impact energy. The interior rail remains intact to protect the vehicle structure. The exterior rail's deformation and buckling limit crack propagation between the rails.

Source

A reinforced B-pillar assembly for vehicles that provides improved side impact protection by directly coupling the B-pillar to the rocker panel and an extended brace above the rocker. The assembly has a B-pillar brace welded to the rocker's upper surface, extending above, and a B-pillar section welded to the rocker's outer surface. The B-pillar section also connects to the brace section. This integrates the B-pillar into the rocker structure for stronger side impact resistance compared to separate components.

Source

Localized energy dissipation structures for vehicles that provide improved impact protection by absorbing energy at specific points along the vehicle rather than uniformly. These structures are designed to buckle and deform upon impact with blunt objects, dissipating energy locally rather than transferring it to the rest of the vehicle. The structures are coupled to the vehicle's support structures independently, allowing selective buckling. This allows some structures to deform while others remain intact. The localized dissipation helps manage weight penalty compared to uniform absorption.

Source

Crash structure integrated into a vehicle side rail that uses a combination of friction and deformation to achieve a crash structure that yields relatively constant loading during a collision. The structure has a hollow housing with deformable members inside. An actuator member slides into the housing. The actuator has a larger diameter section that engages the deformable members. During a crash, the actuator slides into the housing while the deformable members deform and the actuator frictionally engages them. This provides consistent loading on the vehicle structure compared to step-like deformation. The structure can be tuned by varying deformable member stiffness.

Source

Vehicle front structure that provides enhanced load distribution, occupant safety, and weight reduction compared to conventional front end designs. The structure uses offset front rails, octagonal hollow channels, and integrated battery enclosures to improve crash protection and reduce weight. The front rails are non-parallel and wider than height. The hollow channels have octagonal cross-sections. The rails connect bumper to torque boxes with crush cans. The battery enclosure sits between rocker panels and is attached to the rails. This integrated layout improves load distribution, occupant protection, and simplifies repairs compared to separate bumper, rail, and battery structures.

Source

A battery pack design that integrates cell isolation and venting to prevent propagation of cell failures. The design uses interruptible electrical connectors between the battery terminals and pack connectors. When a cell vent ruptures due to overpressure, the connector breaks, disconnecting the cell and preventing gas propagation. The connectors are ultrasonically or resistance welded to the terminals. The terminals have scored venting areas. An insulating potting material covers the terminals and connectors. A support substrate separates the connectors from the cell. This prevents vent gases from escaping into adjacent cells.

Source

Battery design to prevent thermal runaway propagation and collateral damage in multi-cell battery packs. The design involves adding a pre-formed secondary can around the battery cell case that inhibits gas escape through the cell wall during thermal runaway. The secondary can is made of high yield strength materials to prevent perforation. This forces gas to exit through the cell ends instead of the sides. The secondary can also have a higher thermal resistance to reduce conductive heat transfer.

Source

Compact vehicle crash structure that provides relatively constant loading during a collision while requiring minimal space. The structure uses a combination of friction and deformation to achieve this. It has a hollow housing attached to the vehicle side rail, an actuator that slides into the housing, and deformable members surrounding part of the actuator. The actuator diameter increases between the housing and bumper. The deformable members deform as the actuator slides, then the housing collapses after. This provides consistent loading compared to stepwise folding structures.

Source

Vehicle seat mounting assembly that improves crash safety and reduces weight compared to conventional seat mounts. The assembly uses cross-members between the vehicle sides to connect the seat mounts to both the vehicle structure and the battery pack enclosure. This provides a rigid and load-sharing pathway for crash forces through the seat, structure, and battery pack. It also allows the seat mounts to be mounted lower and closer to the floor without affecting seat adjustment. The cross-members can be welded or bolted to the structure and battery pack.

Source

Battery assembly to mitigate thermal runaway propagation between cells. The assembly has an intumescent coating on the cell casing sides and bottom, excluding contact regions. The intumescent material absorbs heat, expands, and forms a barrier as it charrs during thermal runaway. This prevents casing perforation, gas/flame spread, and containment of the affected cell. The coating resists thermal runaway propagation between cells.

Source

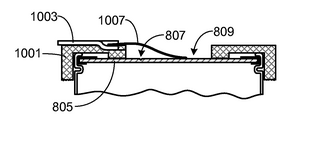

Simplified design of a battery cell that reduces manufacturing cost, weight, and shorting risk compared to conventional cells. The cell design features a recessed terminal instead of a raised terminal to minimize shorting risk between the cell case and terminal. The terminal is covered by an insulating gasket that expands to cover at least 50% of the terminal surface. This reduces shorting further. The cell also has a simplified cap assembly with a current interrupt device (CID) that breaks connection if pressure exceeds a threshold. The CID is connected to the electrode assembly via the insulating gasket, protecting against shorting. The cap assembly has a vent element that serves as the terminal and is electrically connected to the CID. The vent element is also covered by the insulating gasket.

Source

Center pin for battery cells that improves thermal runaway behavior by using an intumescent material. The intumescent center pin expands and swells when heated during thermal runaway to prevent cell rupture and contain the internal gases. The intumescent material can fill the hollow center pin void or cover the pin surface. It activates at specific temperatures and expands less than 20x volume. This prevents electrode deformation and shorting while absorbing thermal energy. A secondary non-intumescent material can surround the intumescent layer to prevent chemical reactions.

Source

A battery cell design to prevent rupture during thermal runaway and reduce collateral damage. The cell uses a center pin that melts or deforms at elevated temperatures during abuse conditions like overcharging or short circuiting. This allows the electrode assembly to deform inward instead of outward, preventing wall rupture. The pin is rigid during normal operation to prevent electrode deformation. The pin material has a lower melting/softening point than cell operating temps.

Source

Frangible battery pack system for electric vehicles and industrial equipment that disconnects the battery at low force or heat levels to prevent electrocution hazards. The system uses frangible aluminum conductors with magnesium and nickel added that break at specific forces or temperatures. The conductors are bonded to the battery cells and collector plates using ultrasonic wedge bonding. The tunable conductor width allows customization for disconnect strength. The aluminum frangible conductors provide a low-cost, easy-manufacturing alternative to prior art high-strength bonded conductors.

Source

Preventing perforations in battery cell walls during thermal runaway to mitigate cell-to-cell propagation and collateral damage. The method involves covering the outer surface of the cell with an intumescent material that expands and seals when heated. This prevents gas escaping through wall perforations and forces it to vent through the cell ends. A sleeve surrounding the intumescent layer maintains separation. This allows controlled gas escape while preventing inter-cell propagation. The intumescent material should have a start expansion temperature in the range of 100-300°C.

Source
